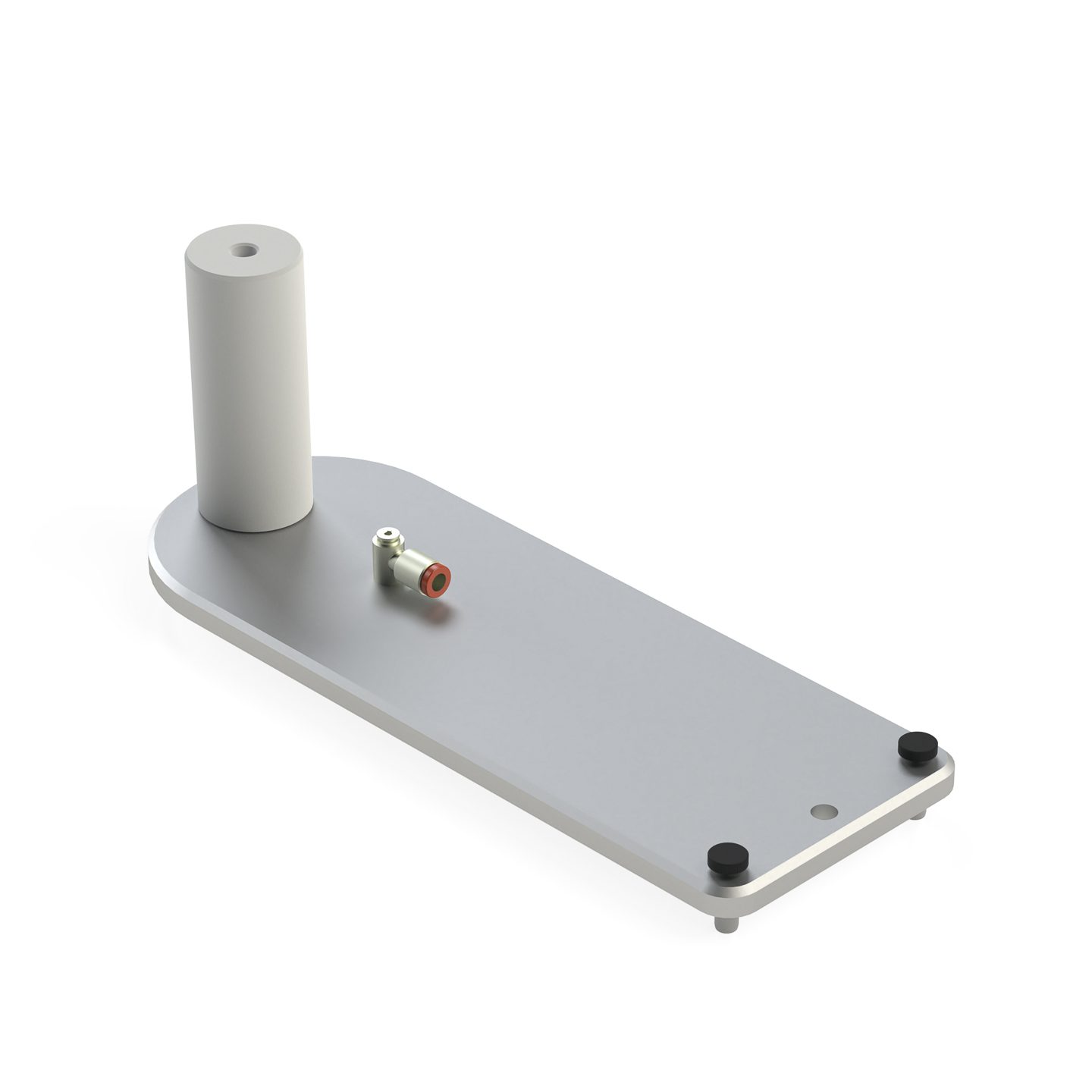

50 mm Table Edge Locating Pin EL

$225.00$245.00

There is no faster way to set up rectangular pieces!

Clear

Two pins protrude from the base of the unit reference against the edges of the machine’s table, allowing for a quick and repeatable setup.

  • Use the corners of the machine’s table to create four fixed origins.
  • For accurately locating a workpiece on CNC machines using the spindle.
  • Locate pins with the Stop Locator Tool
Height Part #
105 mm  11-402-01-105
120 mm 11-402-01-120
150 mm 11-402-01-150
160 mm 11-402-01-160
180 mm 11-402-01-180
200 mm 11-402-01-200

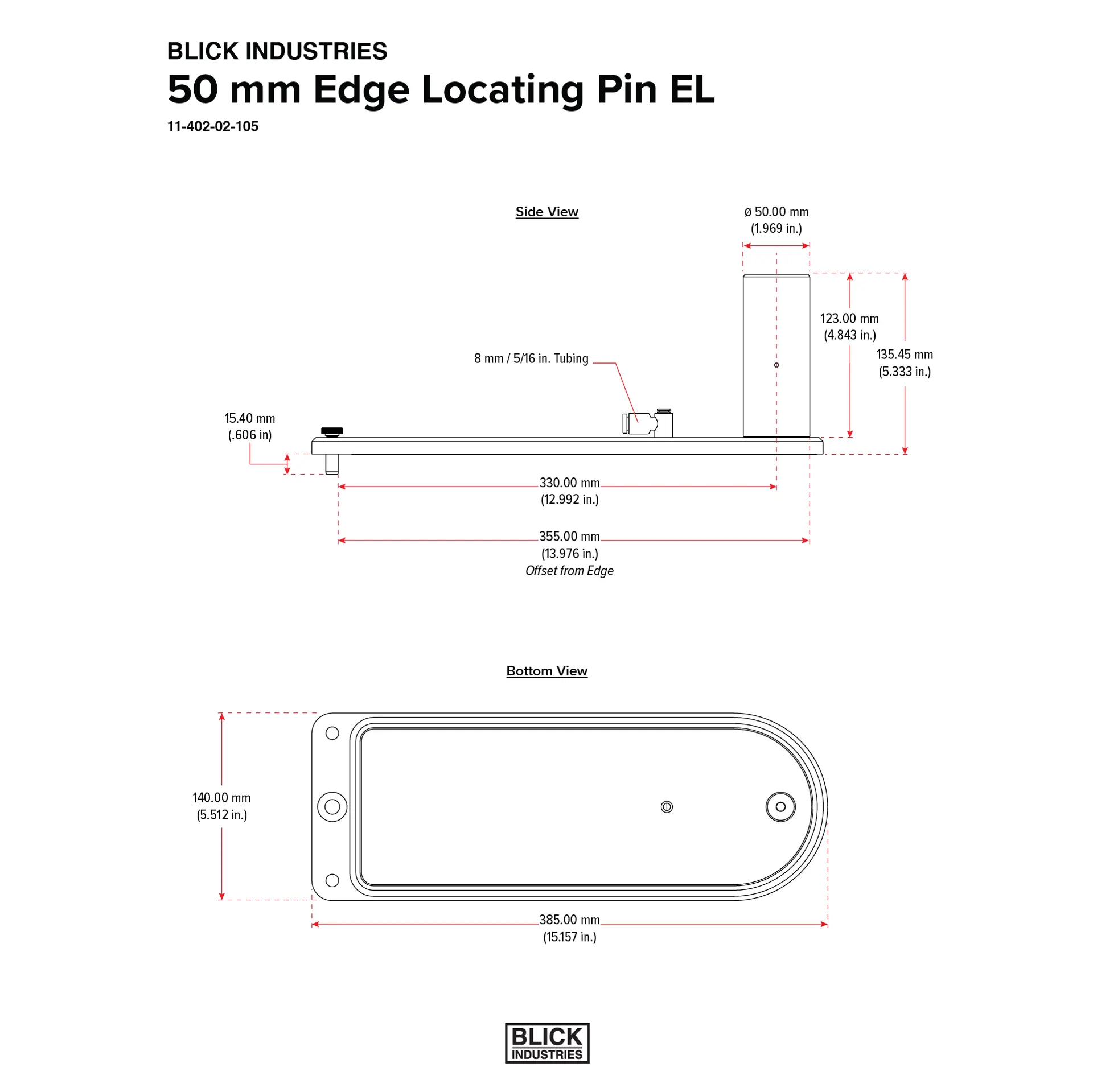

Info. Specs.
Edge Offset 355 mm (13.98″)
Stop Method 50 mm (1.97″) Removable Pin
Base Surface Area 61.8 in2
Base Dimensions 140 x 385 mm (5.51″ x 15.16″)
Bottom Seal Part # 11-401-03-11

NOTES:
