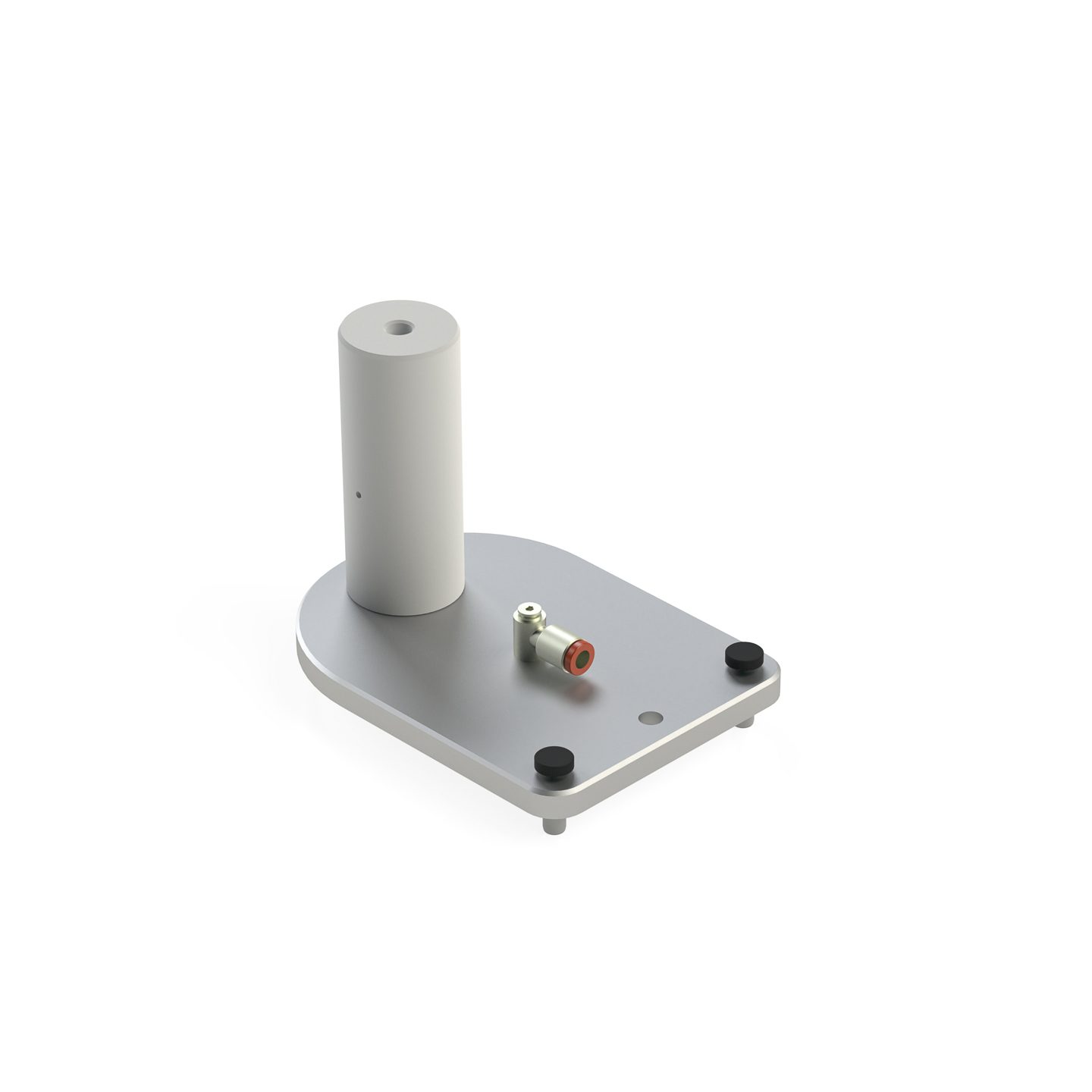

Two pins protrude from the base of the unit reference against the edges of the machine’s table, allowing for a quick and repeatable setup.
- Use the corners of the machine’s table to create four fixed origins.
- For accurately locating a workpiece on CNC machines using the spindle.
- Locate pins with the Stop Locator Tool
Height | Part # |
105 mm | 11-401-01-105 |
120 mm | 11-401-01-120 |
150 mm | 11-401-01-150 |
160 mm | 11-401-01-160 |
180 mm | 11-401-01-180 |
200 mm | 11-401-01-200 |
Info. | Specs. |
Edge Offset | 165 mm (6.50″) |
Stop Method | 50 mm (1.97″) Removable Pin |
Base Surface Area | 26.4 in2 |

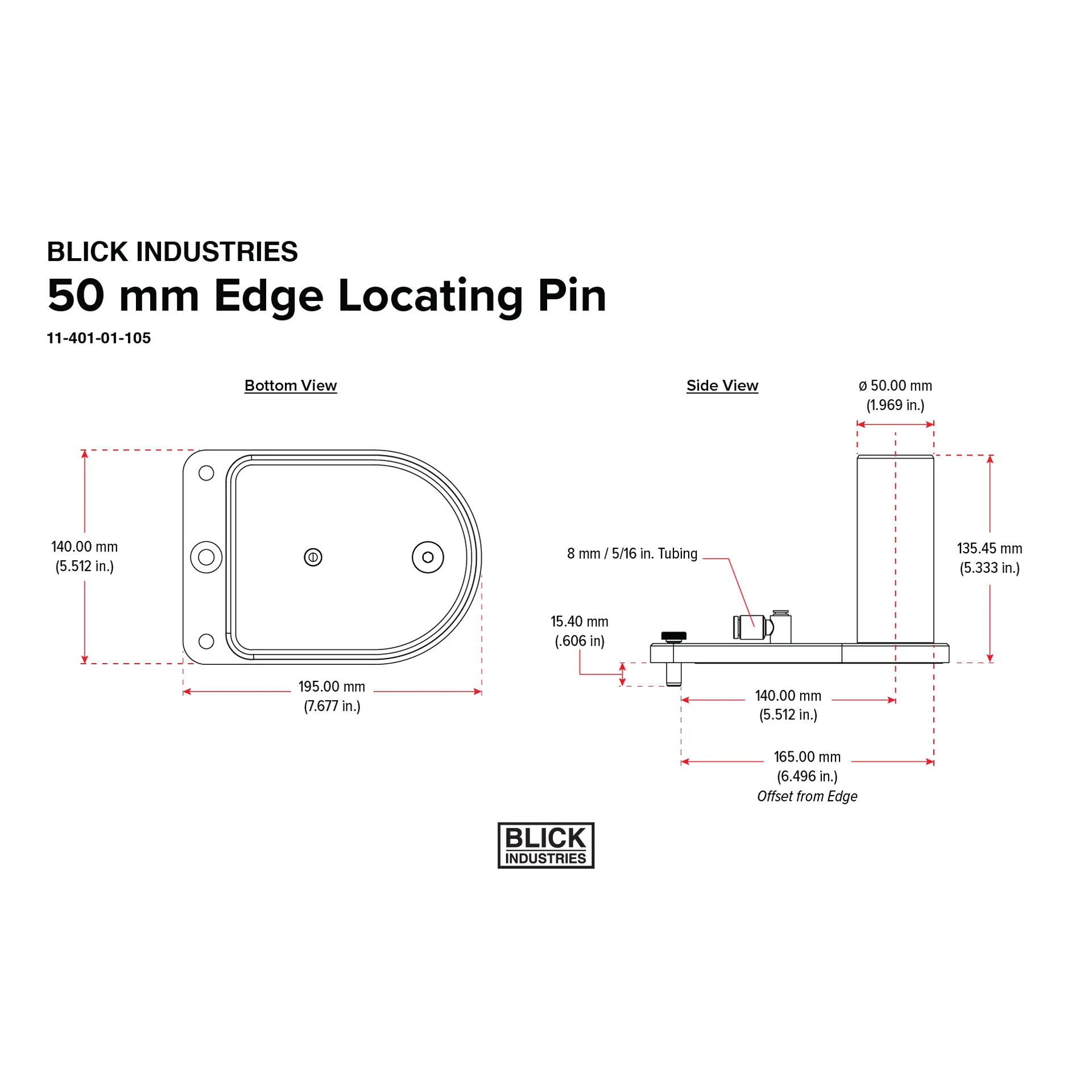

Base Dimensions | 140 x 195 mm (5.51″ x 7.68″) |
Bottom Seal Part # | 11-401-01-11 |
NOTES:
- Available in ANY height and most popular fitting sizes.
- Uses the same removable Removable Pins as Locating Pins
- Replacement pin available with laser target
(Part Number: 1-301-01-73) Contact Us for More Info. - Table Edge Locating Pins are for locating ONLY and are not intended for stabilizing material. See Vacuum Fences
Reviews
Downloads
50 mm Table Edge Locating Pin
$255.00 – $275.00
There is no faster way to set up rectangular pieces!
NOTICE: Order Locating Pins according to the corresponding suction cup operating height.
Example: 105 mm Height Locating Pin pairs with 105 mm height Suction Cup.
Tags: | Delrin, Locating, Location Device |
---|---|
Categories: | Locating Devices, Manual Locating Devices |
SKU: | 11-401-01-105 |
50 mm Table Edge Locating Pin
There is no faster way to set up rectangular pieces!
NOTICE: Order Locating Pins according to the corresponding suction cup operating height.
Example: 105 mm Height Locating Pin pairs with 105 mm height Suction Cup.
$255.00 – $275.00
Two pins protrude from the base of the unit reference against the edges of the machine’s table, allowing for a quick and repeatable setup.
- Use the corners of the machine’s table to create four fixed origins.
- For accurately locating a workpiece on CNC machines using the spindle.
- Locate pins with the Stop Locator Tool
Height | Part # |
105 mm | 11-401-01-105 |
120 mm | 11-401-01-120 |
150 mm | 11-401-01-150 |
160 mm | 11-401-01-160 |
180 mm | 11-401-01-180 |
200 mm | 11-401-01-200 |
Info. | Specs. |
Edge Offset | 165 mm (6.50″) |
Stop Method | 50 mm (1.97″) Removable Pin |
Base Surface Area | 26.4 in2 |
Base Dimensions | 140 x 195 mm (5.51″ x 7.68″) |
Bottom Seal Part # | 11-401-01-11 |
NOTES:
- Available in ANY height and most popular fitting sizes.
- Uses the same removable Removable Pins as Locating Pins
- Replacement pin available with laser target
(Part Number: 1-301-01-73) Contact Us for More Info. - Table Edge Locating Pins are for locating ONLY and are not intended for stabilizing material. See Vacuum Fences
Tags: DelrinLocatingLocation DeviceCategories: Locating Devices, Manual Locating DevicesSKU: 11-401-01-105
Reviews
Downloads
