BLICK INDUSTRIES BLOWBACK KIT

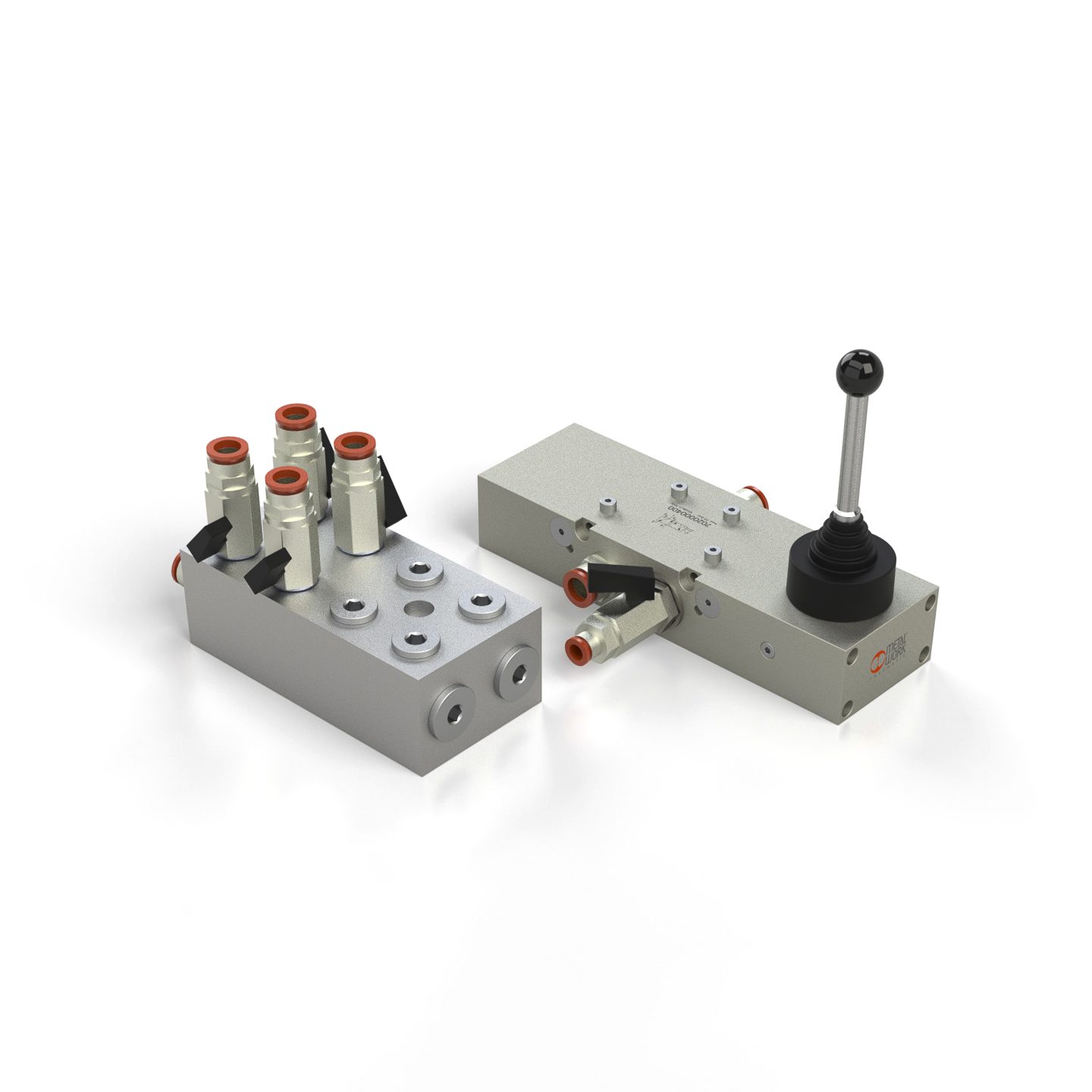

Blowback Kit bu BLICK INDUSTRIES

Blowback Double Vacuum Setup by BLICK INDUSTRIES

Suction Cup and Fittings Measurement Chart

Switches between vacuum and compressed air*.

Includes the Blowback Switch and the Blowback Manifold
Available in most popular fitting sizes

*NOTE: Compressed Air Source will need to be regulated to 20-25 psi

Part Number	21-401-01
Compressed Air (regulated)	20-25 psi

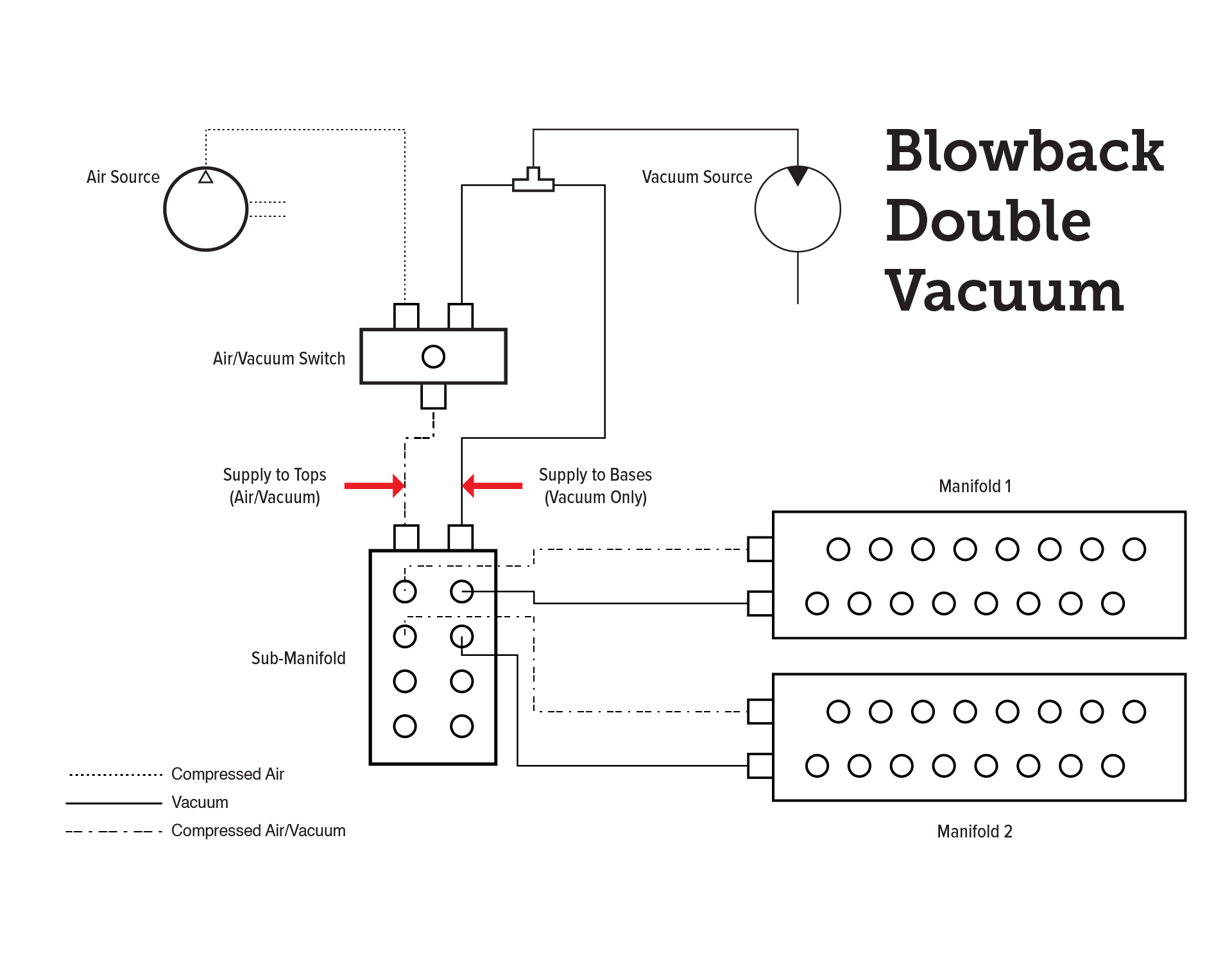

Blowback Double Vacuum Setup

How to Measure Fittings & Suction Cup Heights
