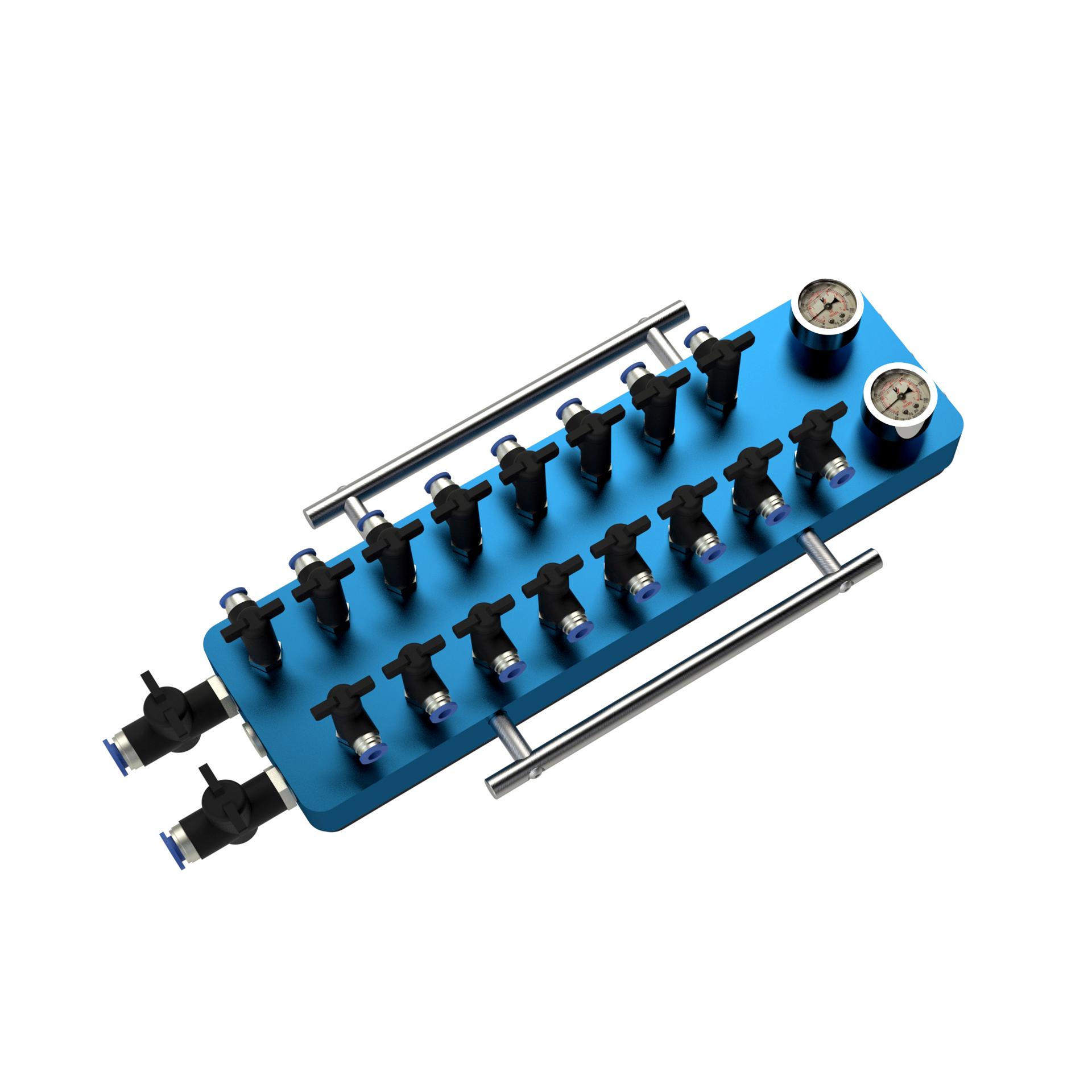

Name: Portable Manifold (8 Pair)
SKU: 21-103-01
Availability: OutOfStock

Measure Combo Valves by BLICK INDUSTRIES

Anodized aluminum surface, non-skid rubber base, and stainless steel handles provide maximum protection in the harshest environments.

16 Total Ports, 2-Chamber
Two liquid-filled combo gauges for vacuum and air pressure
Stainless steel handles
Can be placed anywhere on the machine
Non-scratch rubber pad on the bottom

Part Number	21-103-01
Dimensions	8.5″ x 20″ x 4″ (W x L x H)
Vacuum Gauge Range	0-30 in Hg
Air Pressure Range	0-150 psi

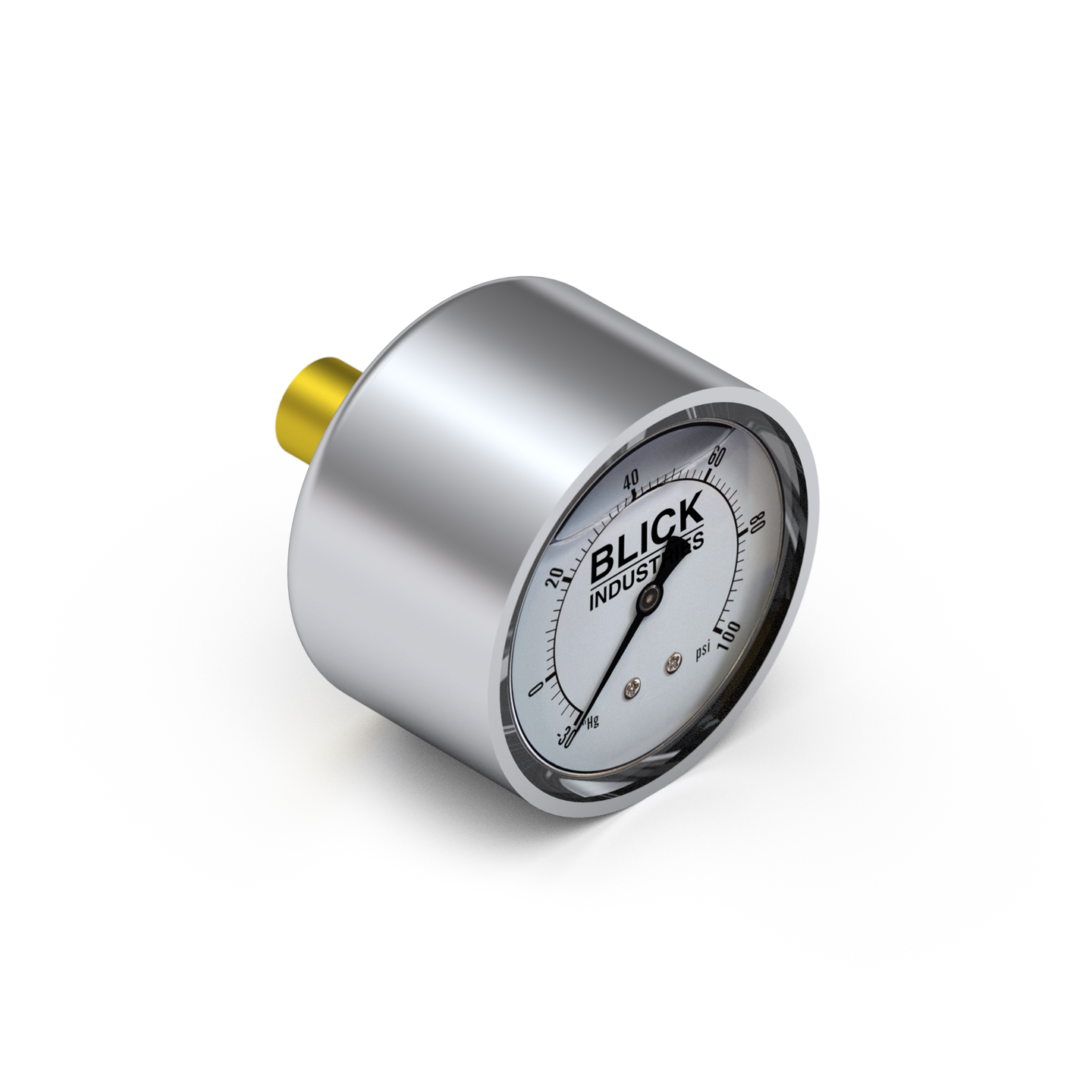

Replacement Gauge	56-15C18BKF
Replacement Valve (Angled)	See Options
Replacement Valve (Straight)	See Options

How to Measure Combo Valves

Reviews

Downloads

CATEGORY	DOCUMENT	LINK	SIZE
Catalog	BLICK INDUSTRIES Catalog	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_2022_Catalog_web.pdf	23 MB
Fittings	How to Measure Suction Cup Heights & Air Fittings	https://www.blickindustries.com/wp-content/uploads/2020/02/BLICK_Fittings-SuctionCups_20200210_Measurments.pdf	397 KB
Suction Cups	Anatomy of a Suction Cup	https://www.blickindustries.com/wp-content/uploads/2022/06/Anatomy200x200_20220620.pdf	2 MB
Suction Cups	Suction Cup Seal Lengths	https://www.blickindustries.com/wp-content/uploads/2019/10/SuctionCup_SealChart_20191009.pdf	829 KB
Fittings	How to Measure Valves	https://www.blickindustries.com/wp-content/uploads/2020/12/BLICK_Valve-Port-Mani_20201202_Measur.pdf	333 KB
Tools & Accessories	Leatherheads & Accessories	https://www.blickindustries.com/wp-content/uploads/2021/02/BLICK_LeatherheadsAccessories_20210218.pdf	2.24 MB
Forms	Repair Form	https://www.blickindustries.com/wp-content/uploads/2022/11/Blick_Repair-Form_20221130.pdf	82 KB
Locating Devices	Dimensions Diagram - 26 mm Edge Locating Pin	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_26mm-Edge-Locat-Pin_20200803.pdf	KB
Locating Devices	Dimensions Diagram - 50 mm Edge Locating Pin	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_50mm-Edge-Locat-Pin_20200803.pdf	484 KB
Locating Devices	Dimensions Diagram - 50 mm Edge Locating Pin EL	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_50mm-Edge-Locat-Pin-EL_20200803.pdf	483 KB
Manifolds	Incoming Vacuum Lines - Manifold for INTERMAC Machine (Right)	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-02_Intermac-Mani_20200828.pdf	844 KB
Manifolds	Incoming Vacuum Lines - Manifold for INTERMAC Machine (Left)	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-01_Intermac-Mani_20200828.pdf	855 KB

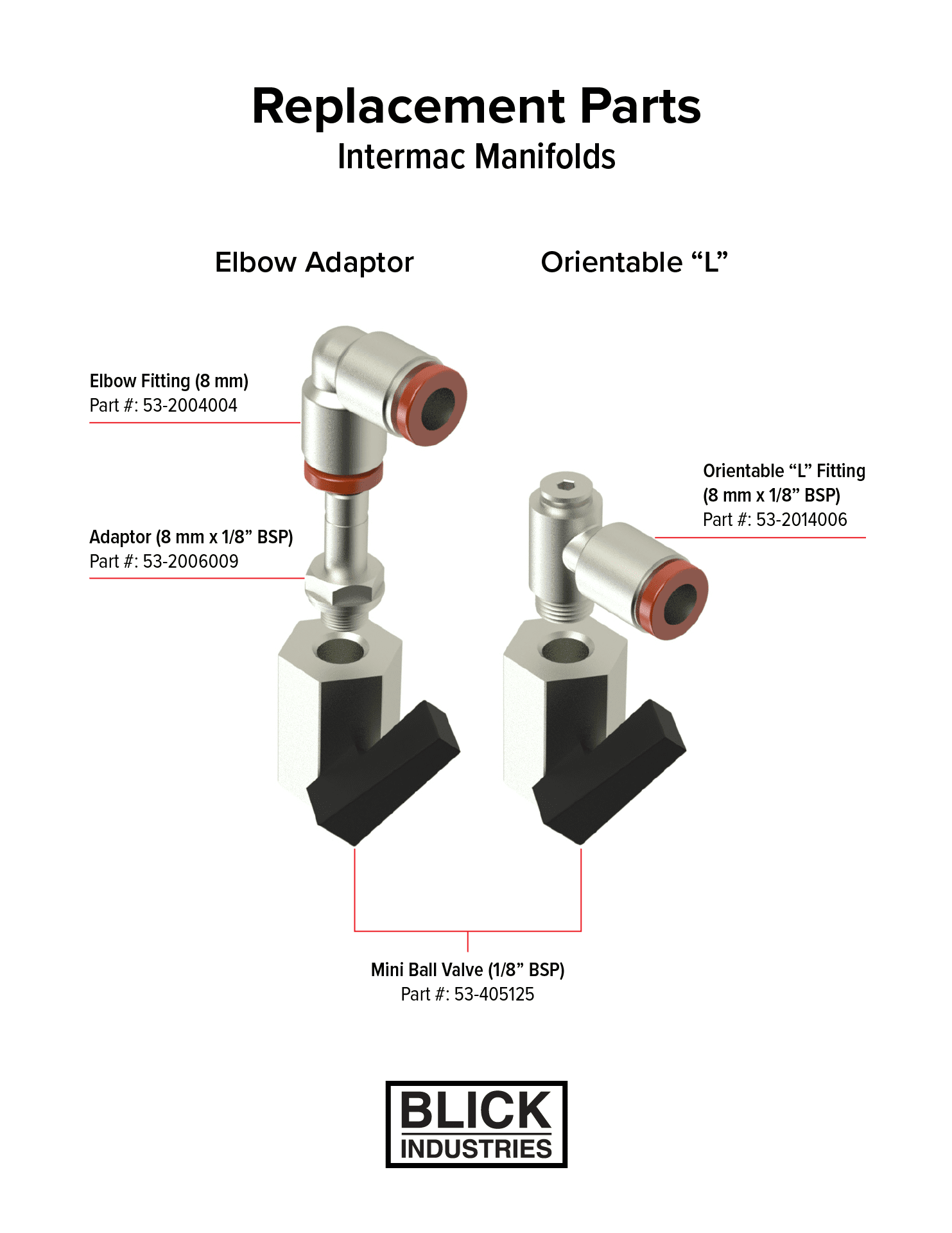

Manifolds	Replacement Parts - Intermac Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/INTERMAC-Mani_Replace-Parts_20200828.pdf	134 KB
Locating Devices	Height Diagram - Stop Locator Tool	https://www.blickindustries.com/wp-content/uploads/2020/08/Stop-Locator-Tool-Diagram.pdf	929 KB
Tools & Accessories	Dressing Tool Assembly & Body Lengths	https://www.blickindustries.com/wp-content/uploads/2020/08/20-022-0x_Dressing-Tool-Assembly_20190520_All_1920.pdf	1 MB
Clamps	Overview - Backsplash Clamp System	https://www.blickindustries.com/wp-content/uploads/2018/06/BSClampInstructions.pdf	66 KB

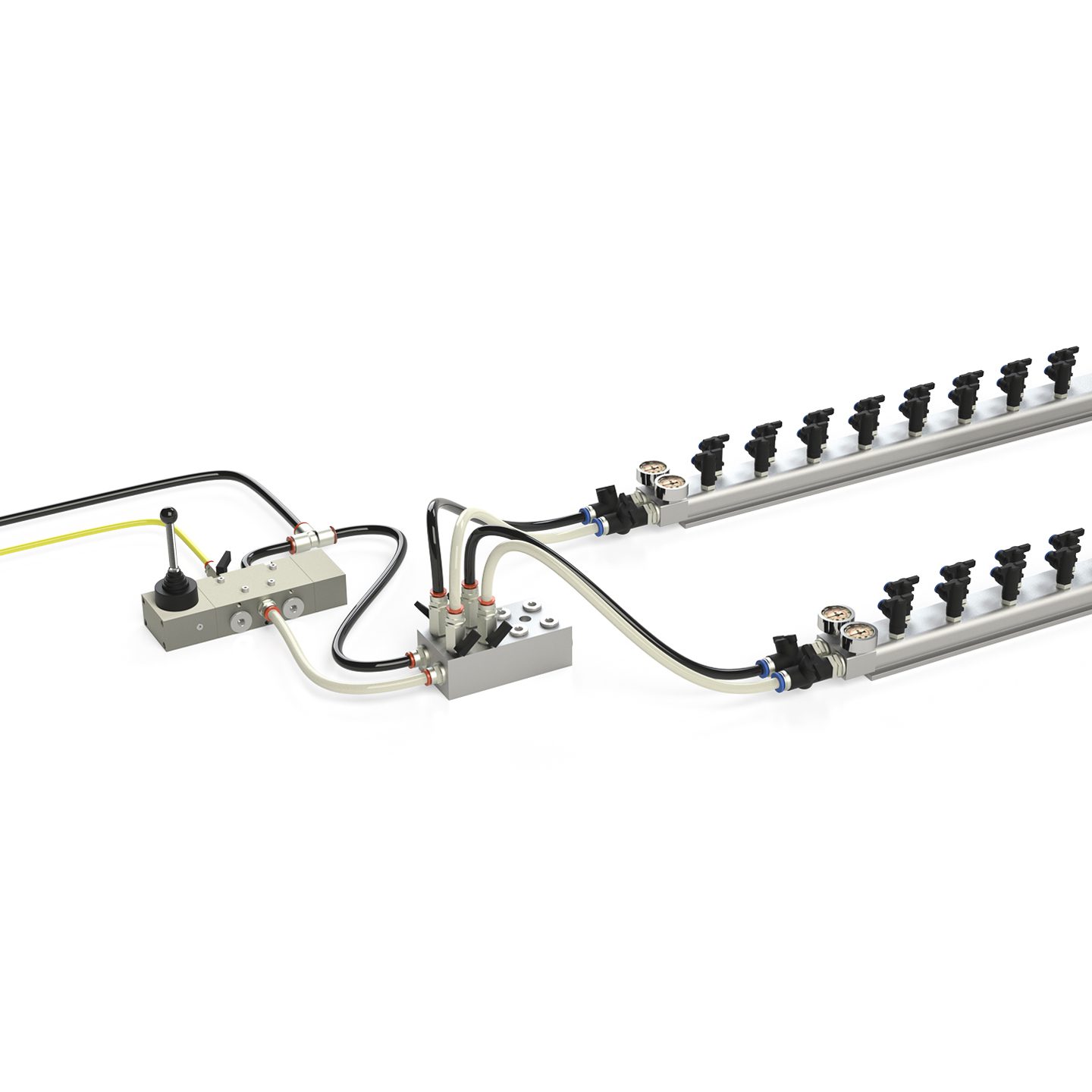

Manifolds	Blowback Kit Setup Diagram	https://www.blickindustries.com/wp-content/uploads/2021/03/BlowbackKit_SetupDiagram_20210219.pdf	38 KB

Portable Manifold (8 Pair)

$795.00

Perfect solution for replacing old or damaged manifolds!

Incoming Air Lines

1/2" ID
1/2" OD
5/8" ID
8 mm
10 mm
12 mm
14 mm

Outgoing Air Lines

6 mm
8 mm

Clear

Tags: Manifold portableCategories: Manifolds, ManifoldsSKU: 21-103-01
