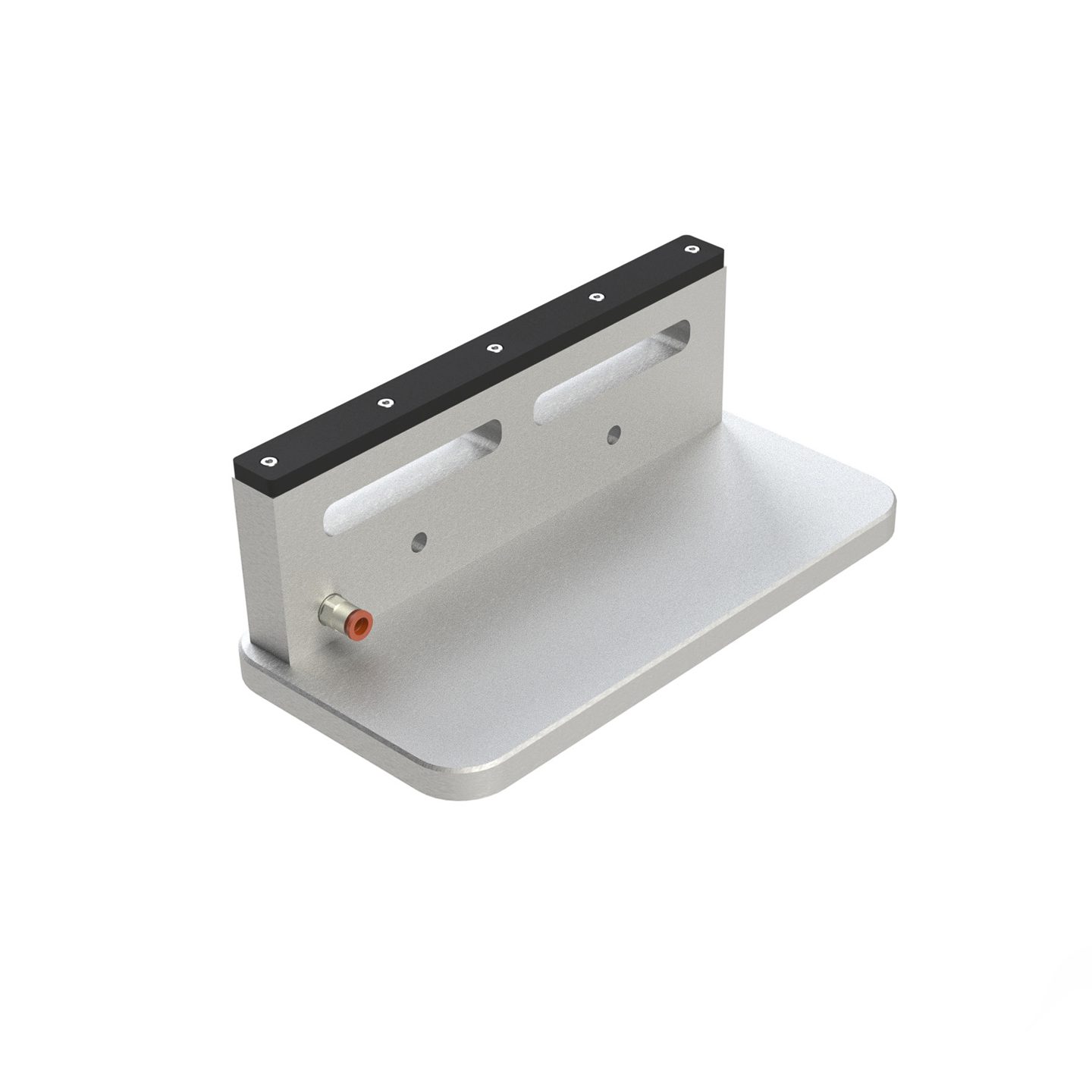

Position the support as you would any other suction cup.

  • Run your perimeter profile

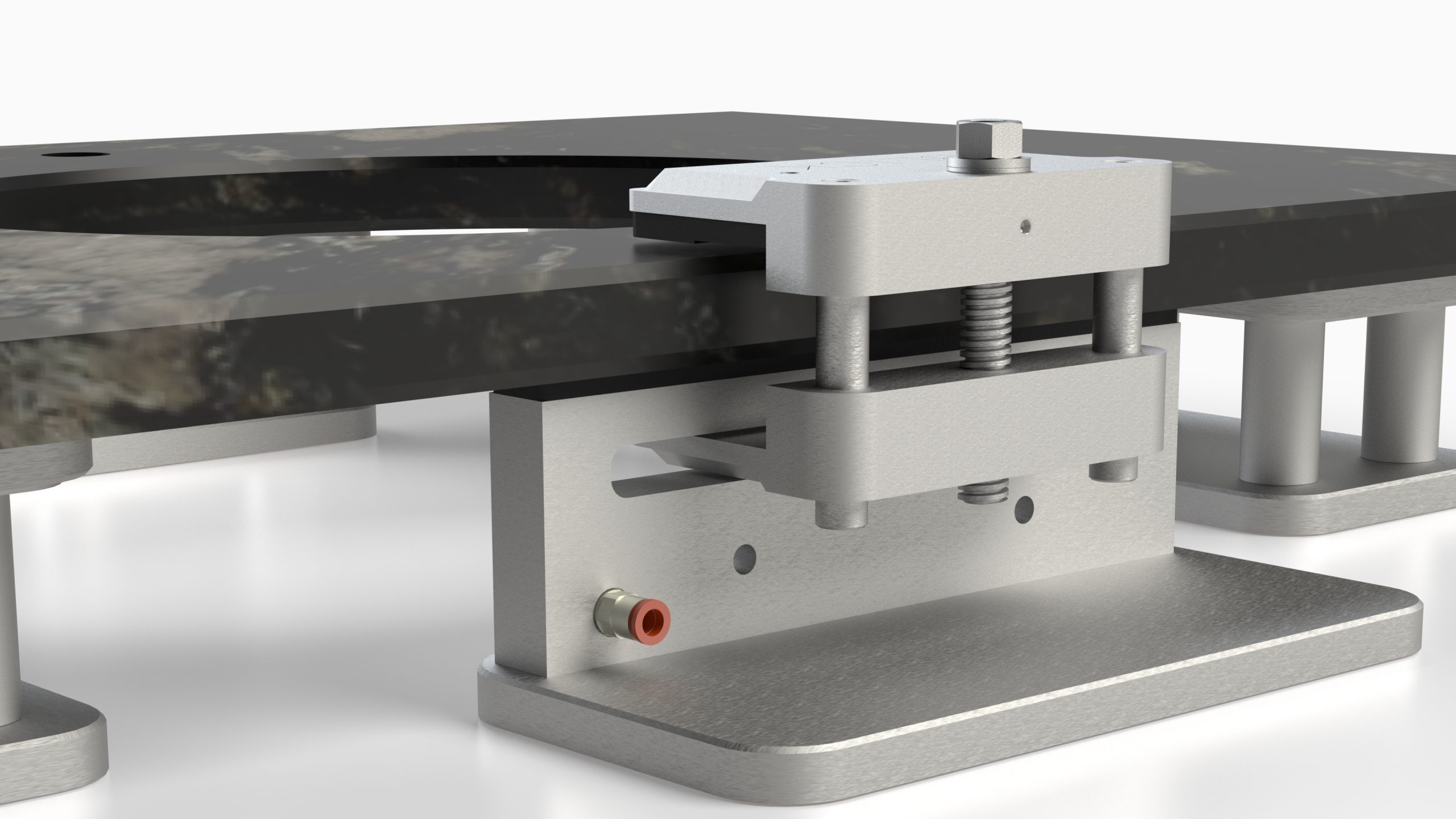

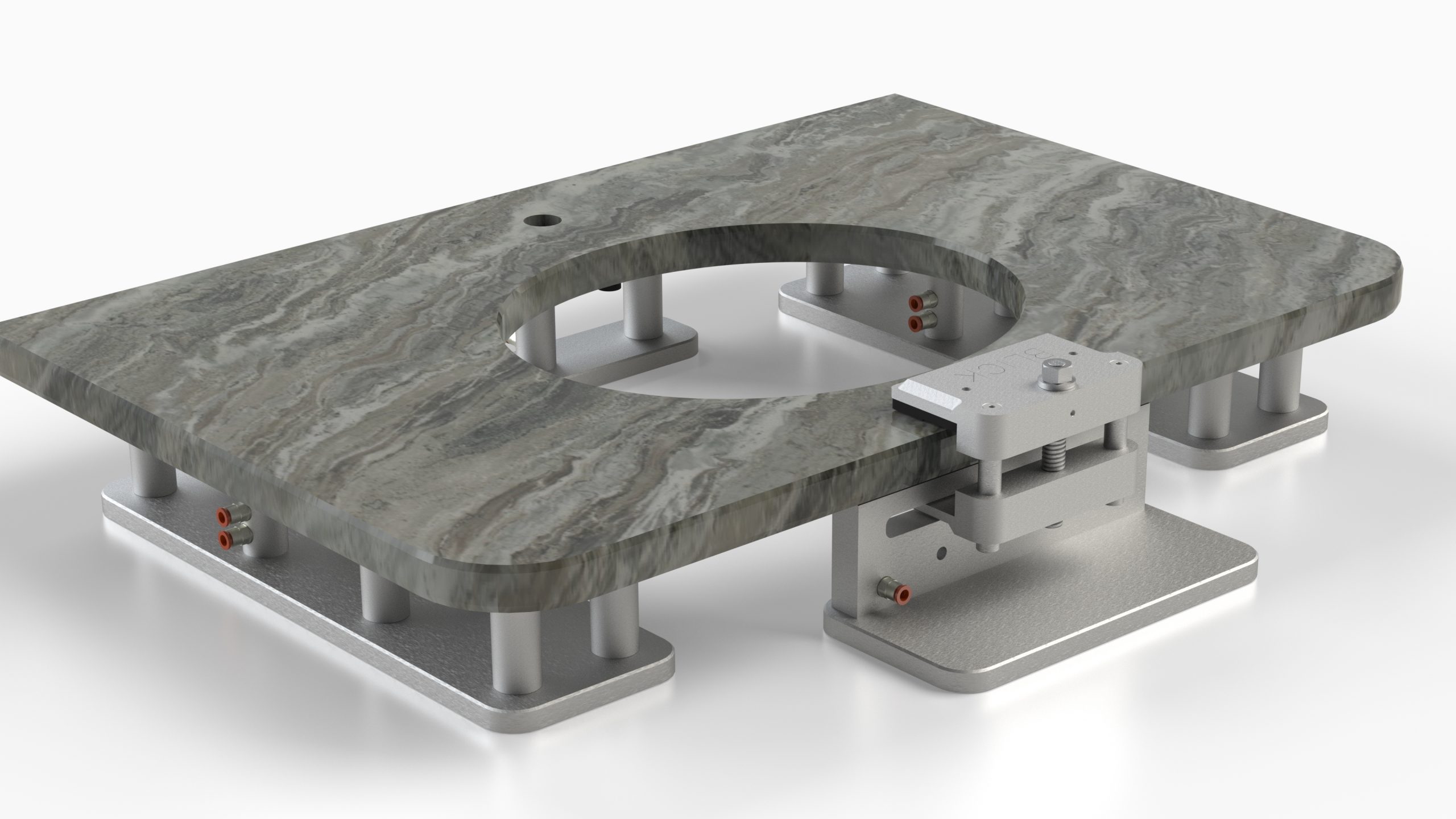

  • Pause the machine and attach a large edge clamp to the support
  • Cut out and edge your bowl hole
  • Extra narrow 1″ wide support allows for positioning under narrow sink rails.
Part Number 12-025-28
Clamping Range Up to 4 cm of material
Top Surface Area 10.62 in²
Base Surface Area 62.5 in²
Base Dimensions 150 x 300 mm (5.9″ x 11.81″)
Bottom Seal 12-150-30-11

Support base can be made at ANY height and is available in most popular fitting sizes.

How to Measure Fittings & Suction Cup Heights
