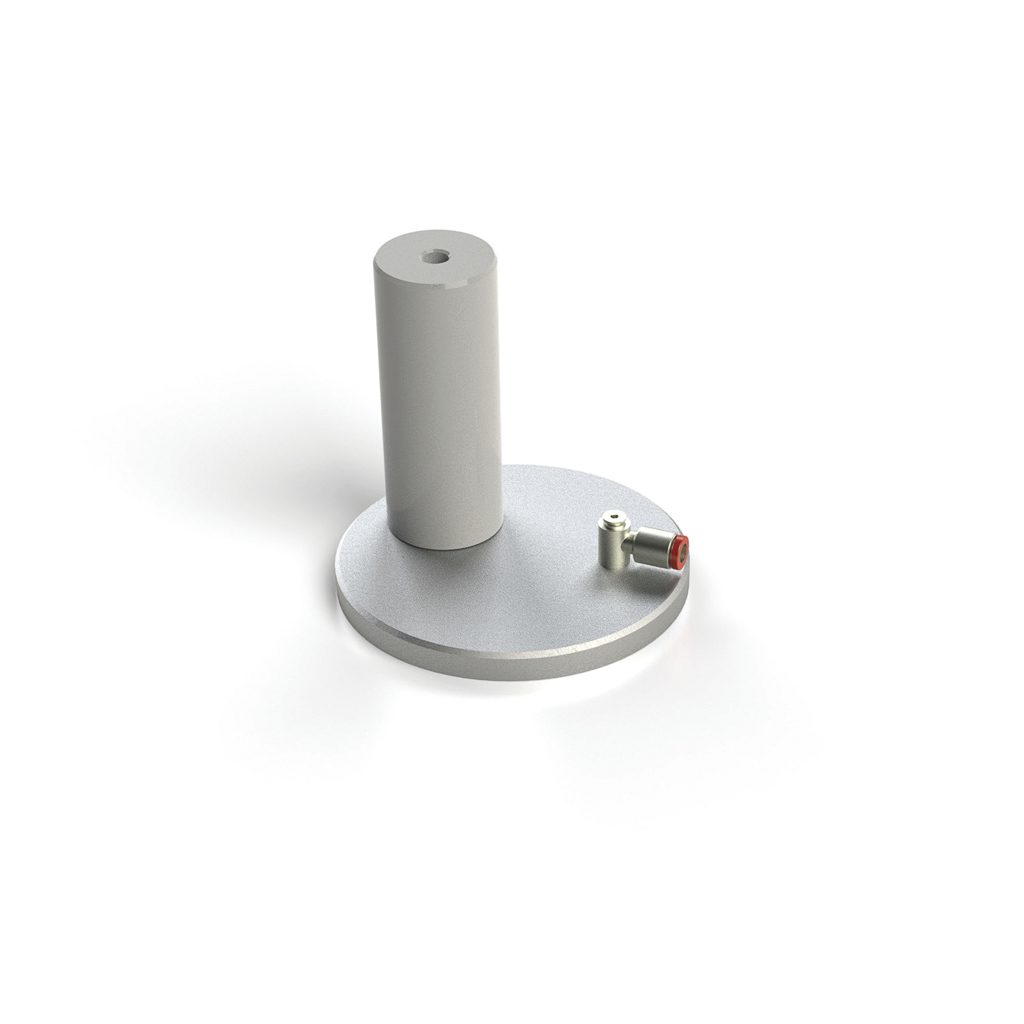

Locating Pins consist of a vacuum base and a removable pin. The Removable Pin is placed over the stainless steel pin on the base during setup and then removed during the machine cycle.
- For accurately locating a workpiece on CNC machines using the spindle
- More accurate than a laser
- Provides a simple, cost-effective solution
- Locate pins with the Stop Locator Tool
| Height | Part # |
| 105 mm | 11-301-01-105 |
| 120 mm | 11-301-01-120 |
| 150 mm | 11-301-01-150 |
| 160 mm | 11-301-01-160 |
| 180 mm | 11-301-01-180 |
| 200 mm | 11-301-01-200 |
| Info. | Specs. |
| Stop Method | Removable Pin |
| Base Surface Area | 25.2 in2 |
| Base Dimensions | 150 mm Diameter (5.91″) |
| Bottom Seal Part # | 11-301-01-11 |
NOTES:
- Available in ANY height and most popular fitting sizes.
- Uses the same removable Removable Pins as Table Edge Locating Pins.
- Replacement pin available with laser target
(Part Number: 1-301-01-73) Contact Us for More Info. - Locating Pins are for locating ONLY and are not intended for stabilizing material. See Vacuum Fences
