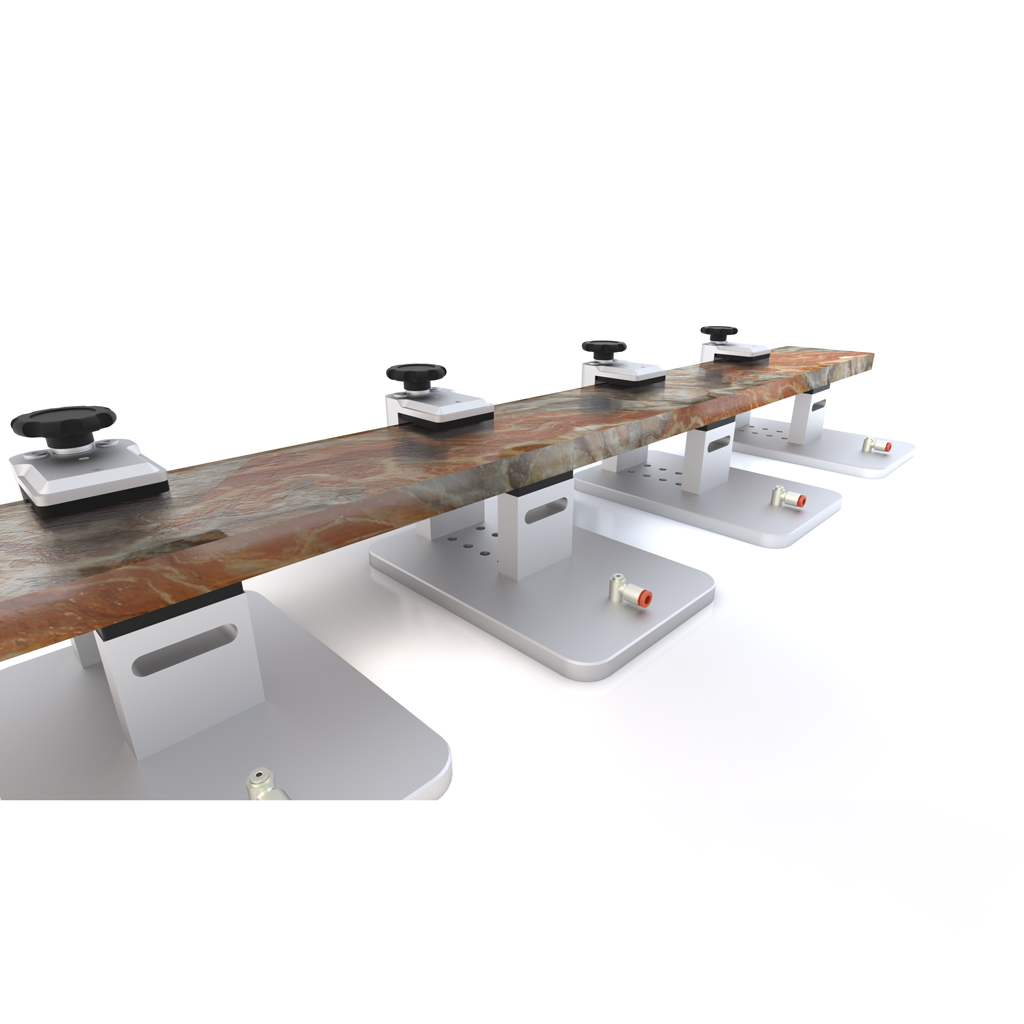

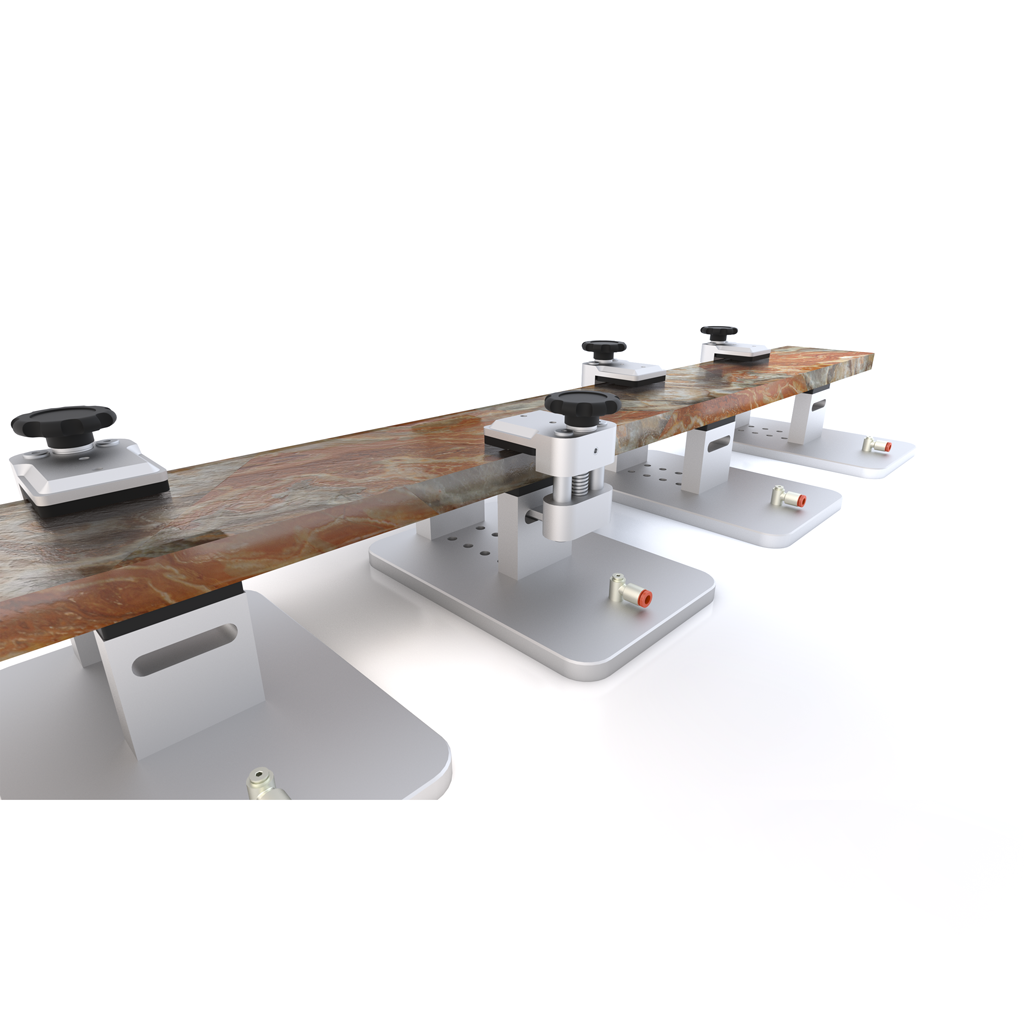

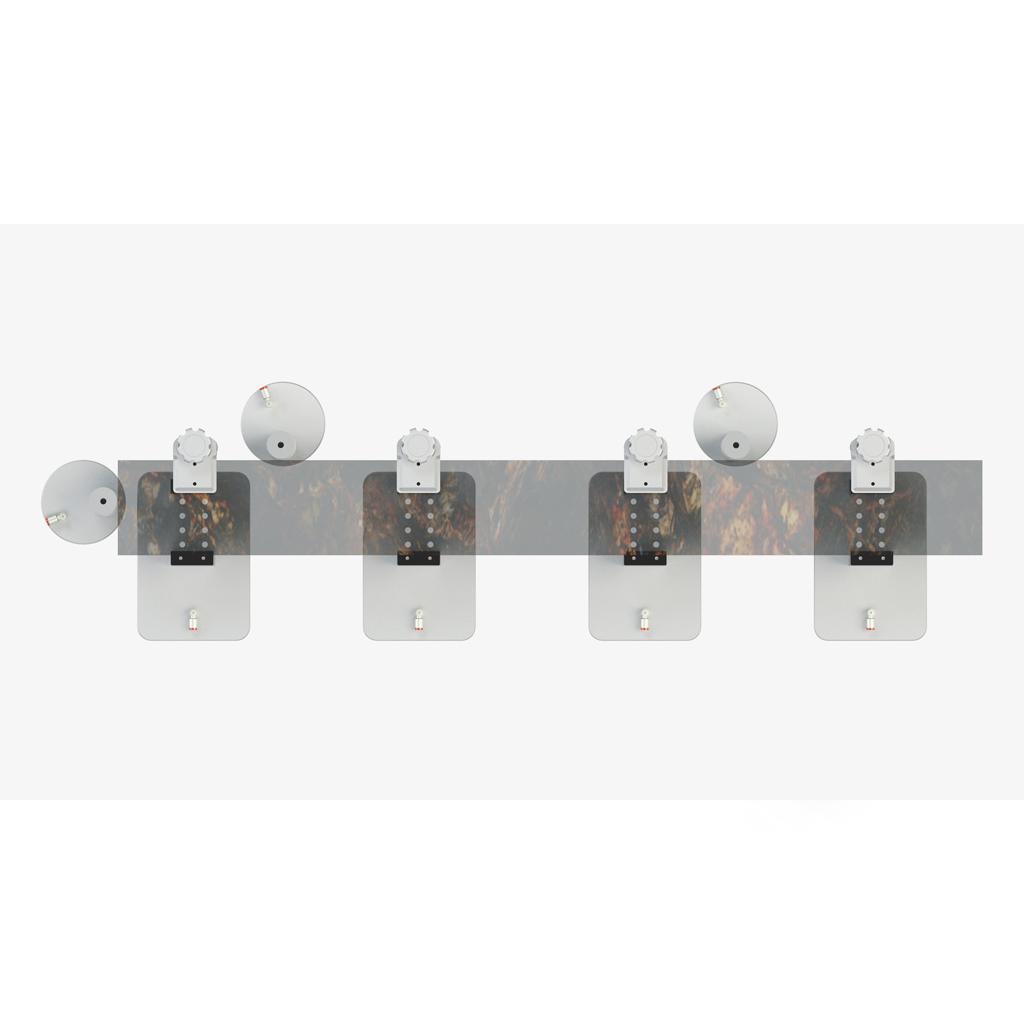

Prevents corner blowout and small pieces from moving and provides extra support for fragile regions such as sink rails.

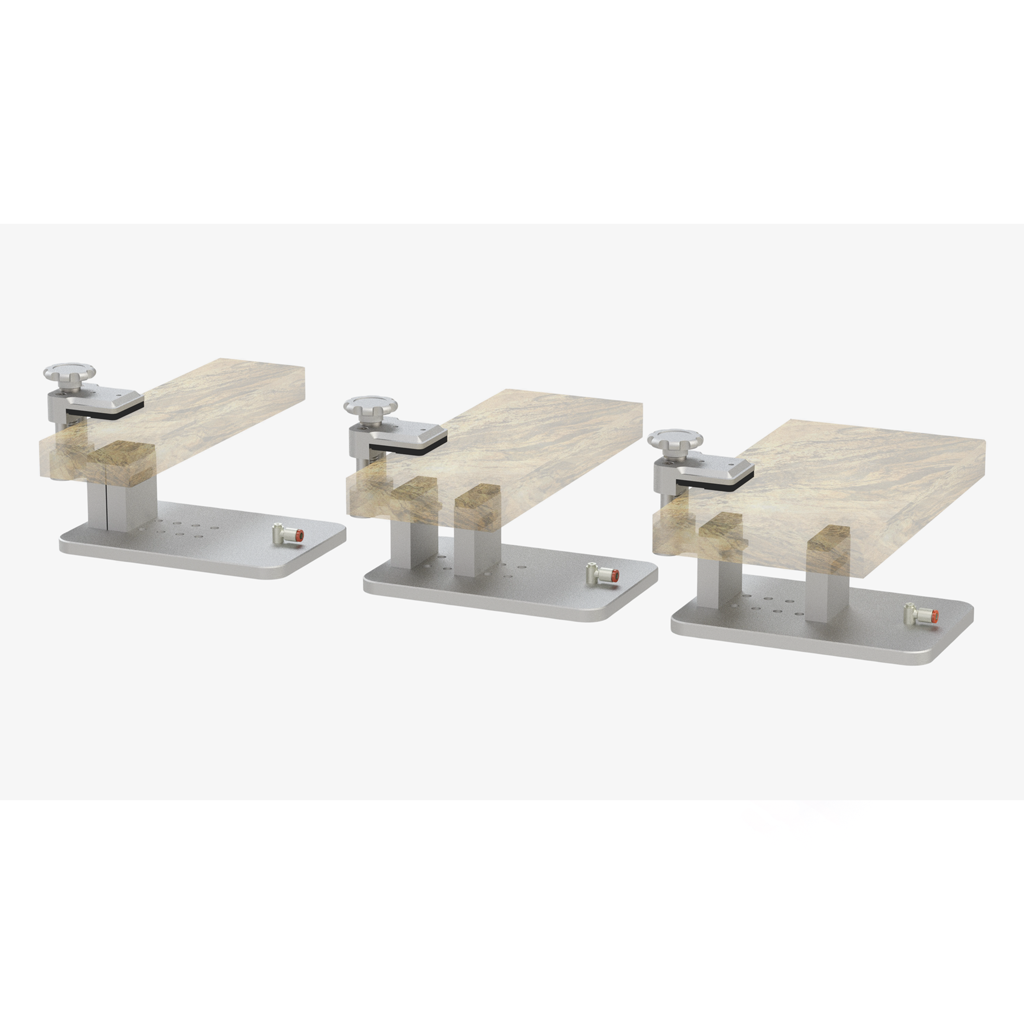

  • 6 Support body positions allow clamps to be used with varying material widths (1″ increments)
  • A clamp designed to mount on BLICK Suction Cups and Supports

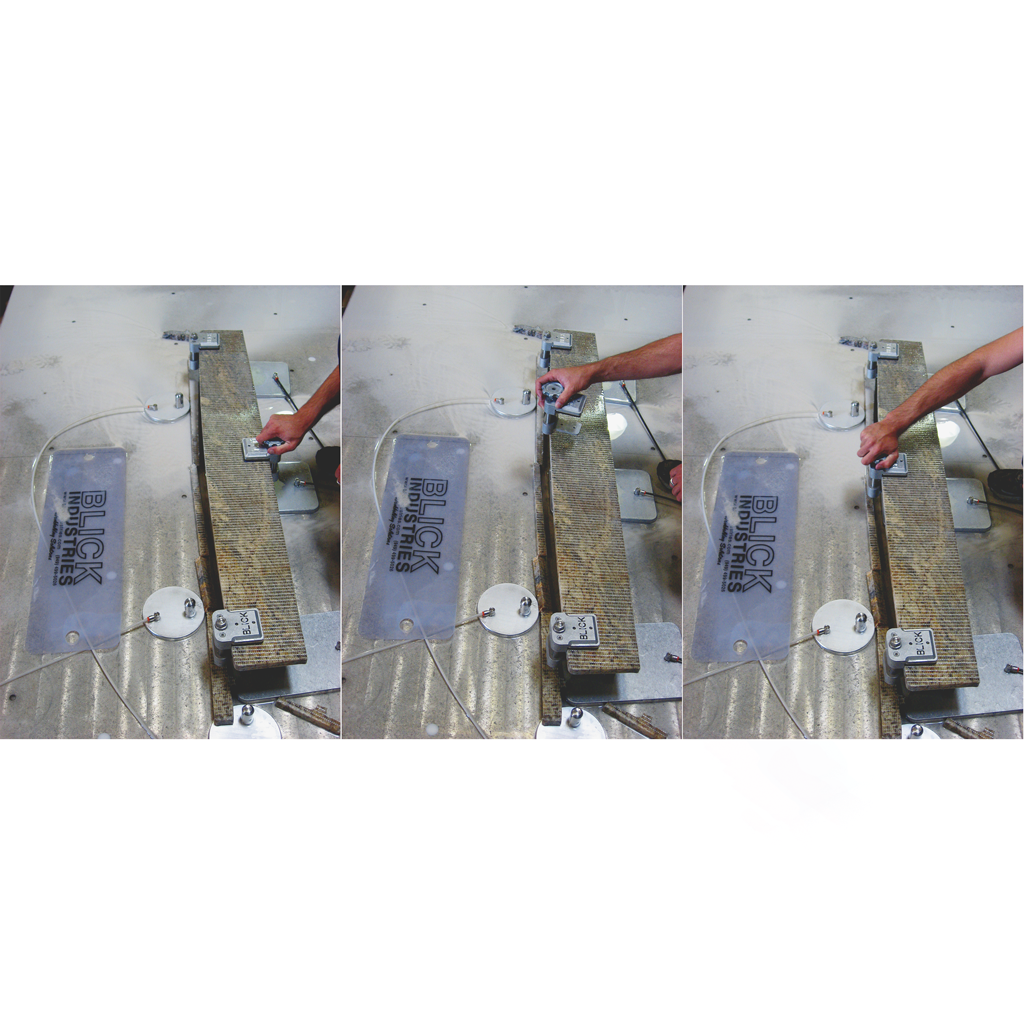

  • The clamp can be moved from one side to another without moving the part
  • Non-marking ABS pad on support + non-marking rubber pad on the clamp

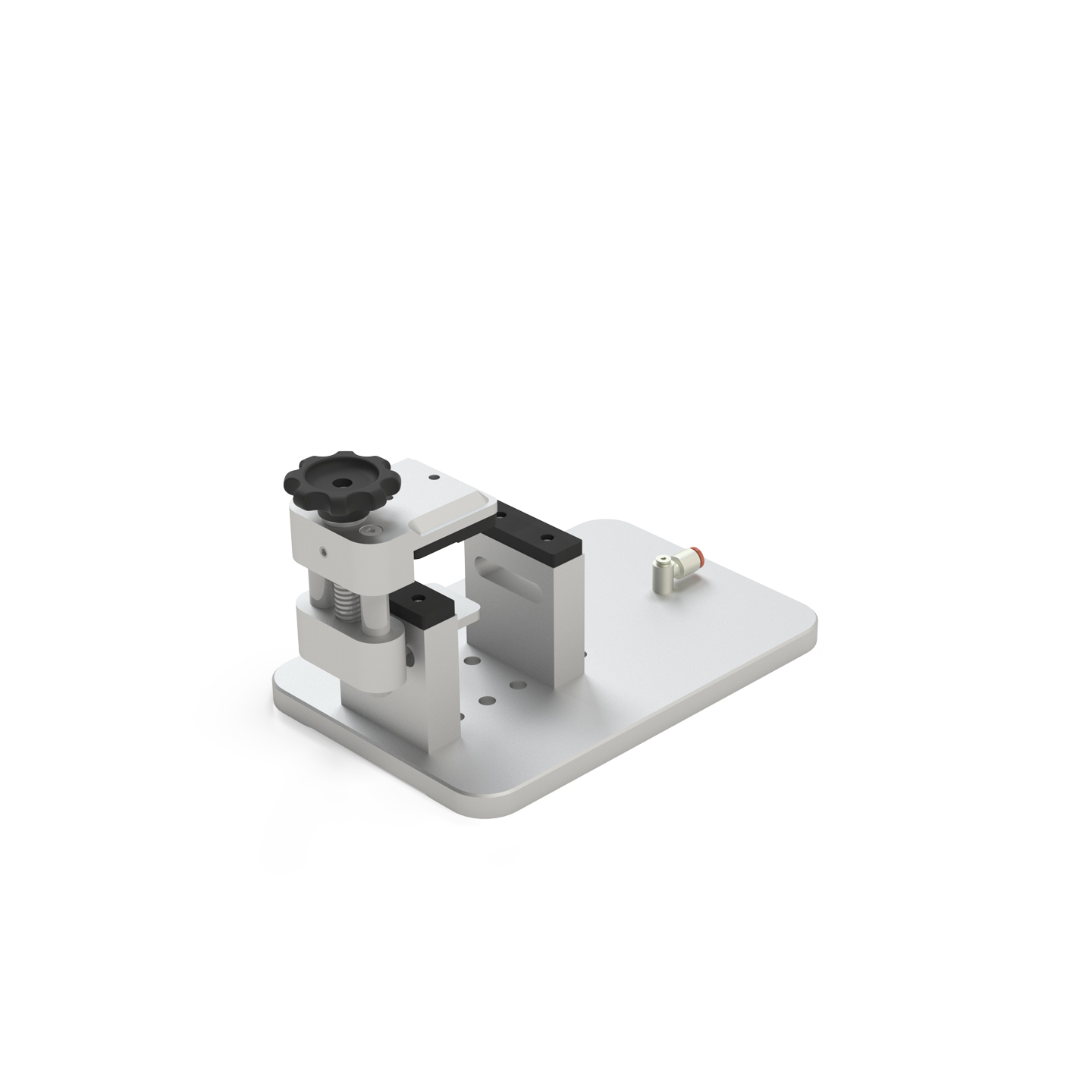

Included in Kit Part Number
Small Edge Clamp (x1)

Strip Clamp Support Base (x1)

13-300-12

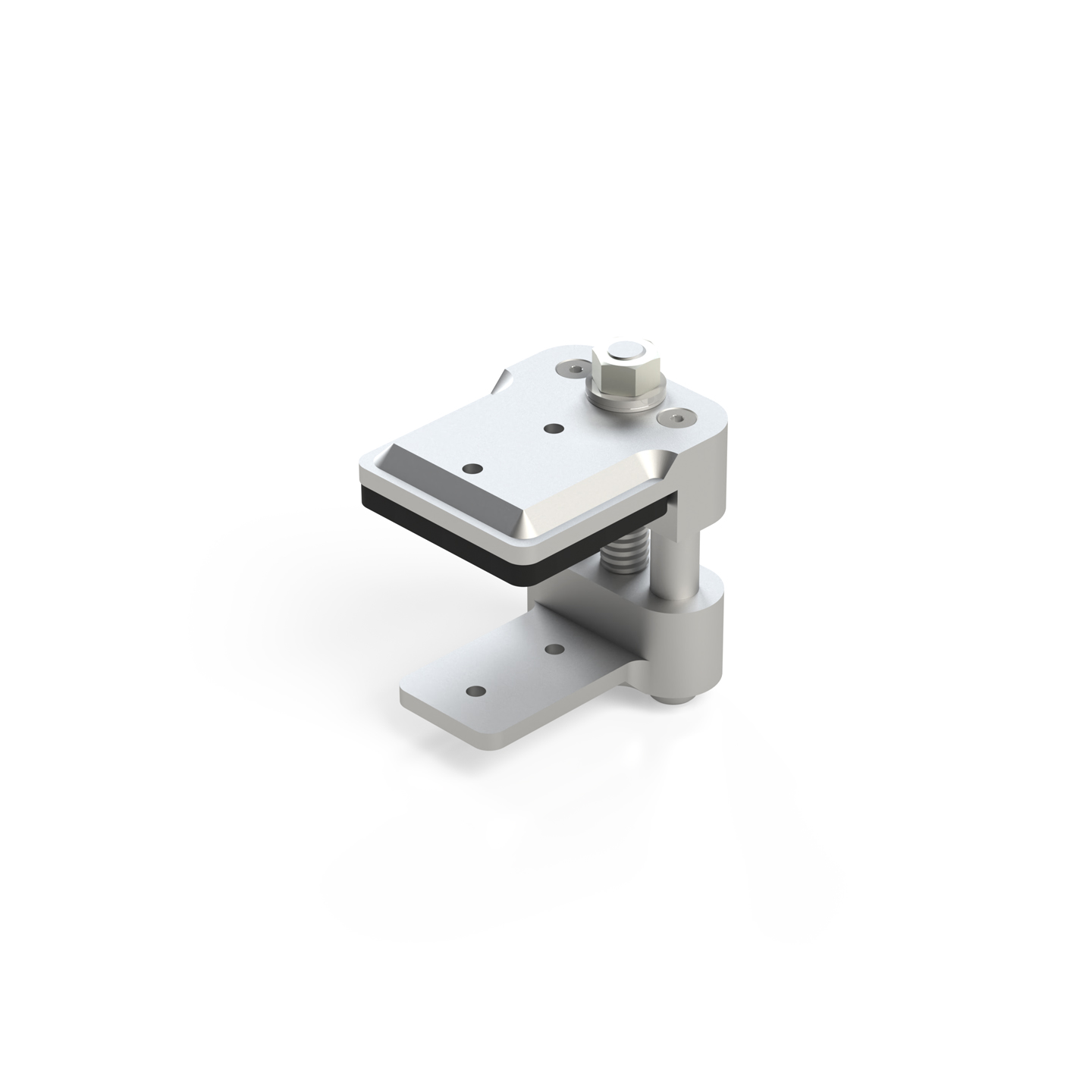

Small Edge Clamp Specs:
Clamping Method Mechanical Screw
Clamping Area 66 mm Dept x 76 mm Width (2.625″ x 30″)
Open Clamp Distance Up to 7 cm (2.76″)
Closed Clamp Distance 3 cm (1.18″)
Open Clamp Distance with Base 4.5 cm (1.79″)
Closed Clamp Distance with Base 0.6 cm (0.24″)
  • Low-profile design
  • Handle included

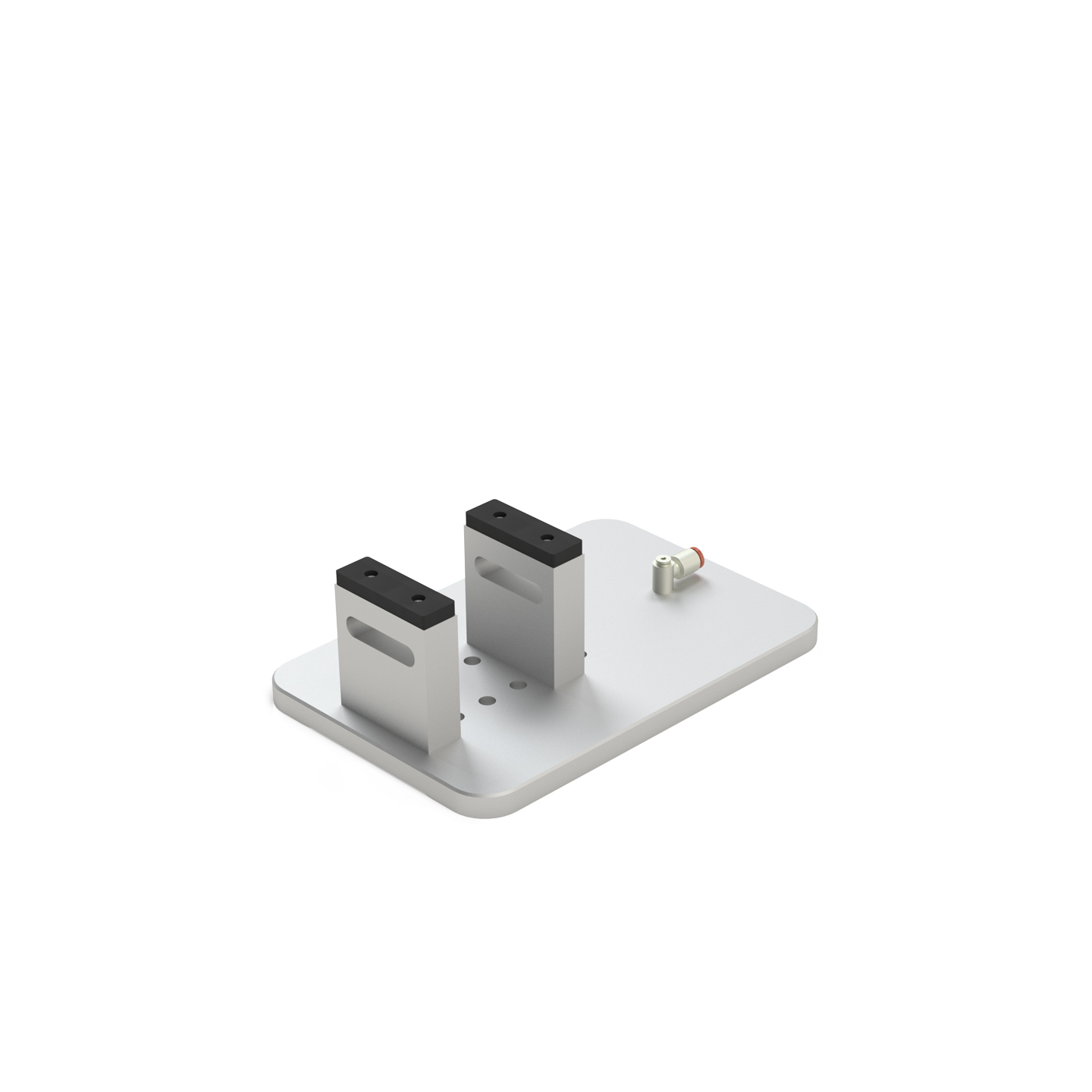

Strip Clamp Support Base Specs:
Base Surface Area 87.6 in2
Base Dimensions 200 x 300 mm (7.87″ x 11.81″)
Bottom Seal 12-200-12-11

Support base can be made at ANY height and is available in most popular fitting sizes
How to Measure Fittings & Suction Cup Heights
