Functions the same as the standard Pneumatic Mushroom Clamp, and are equipped with a pin on the bottom base for referencing tables.
Part Number | 13-103-04 |
Clamping Method | Pneumatic Cylinder |
Clamping Area (Circular Ring) |
152 mm OD x 70 mm ID (6″ x 2.75″) |
Material Thickness | 0.8~4.4 cm (0.32″~1.73″) |
Base Surface Area | 42 in2 |
Stop Diameter | 60 mm (2.36″) |
Bottom Seal Part # | 13-103-02-11 |
Reviews
Downloads

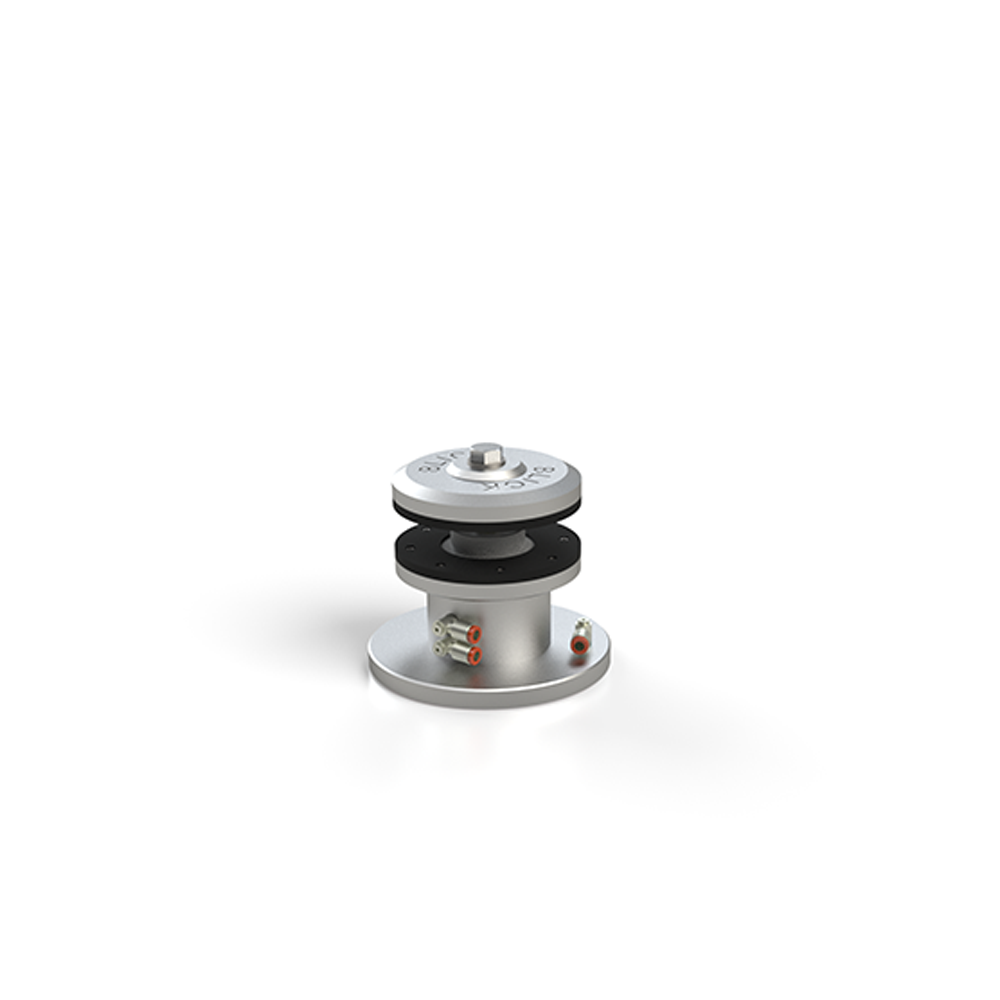

Pneumatic Mushroom Clamp for CMS Concept (100 mm Height )
The Pneumatic Mushroom Clamp is designed to interface with CMS (Brembana) machines at 100 mm height.
$495.00
Functions the same as the standard Pneumatic Mushroom Clamp, and are equipped with a pin on the bottom base for referencing tables.
Part Number | 13-103-04 |
Clamping Method | Pneumatic Cylinder |
Clamping Area (Circular Ring) |
152 mm OD x 70 mm ID (6″ x 2.75″) |
Material Thickness | 0.8~4.4 cm (0.32″~1.73″) |
Base Surface Area | 42 in2 |
Stop Diameter | 60 mm (2.36″) |
Bottom Seal Part # | 13-103-02-11 |
Reviews
Downloads
