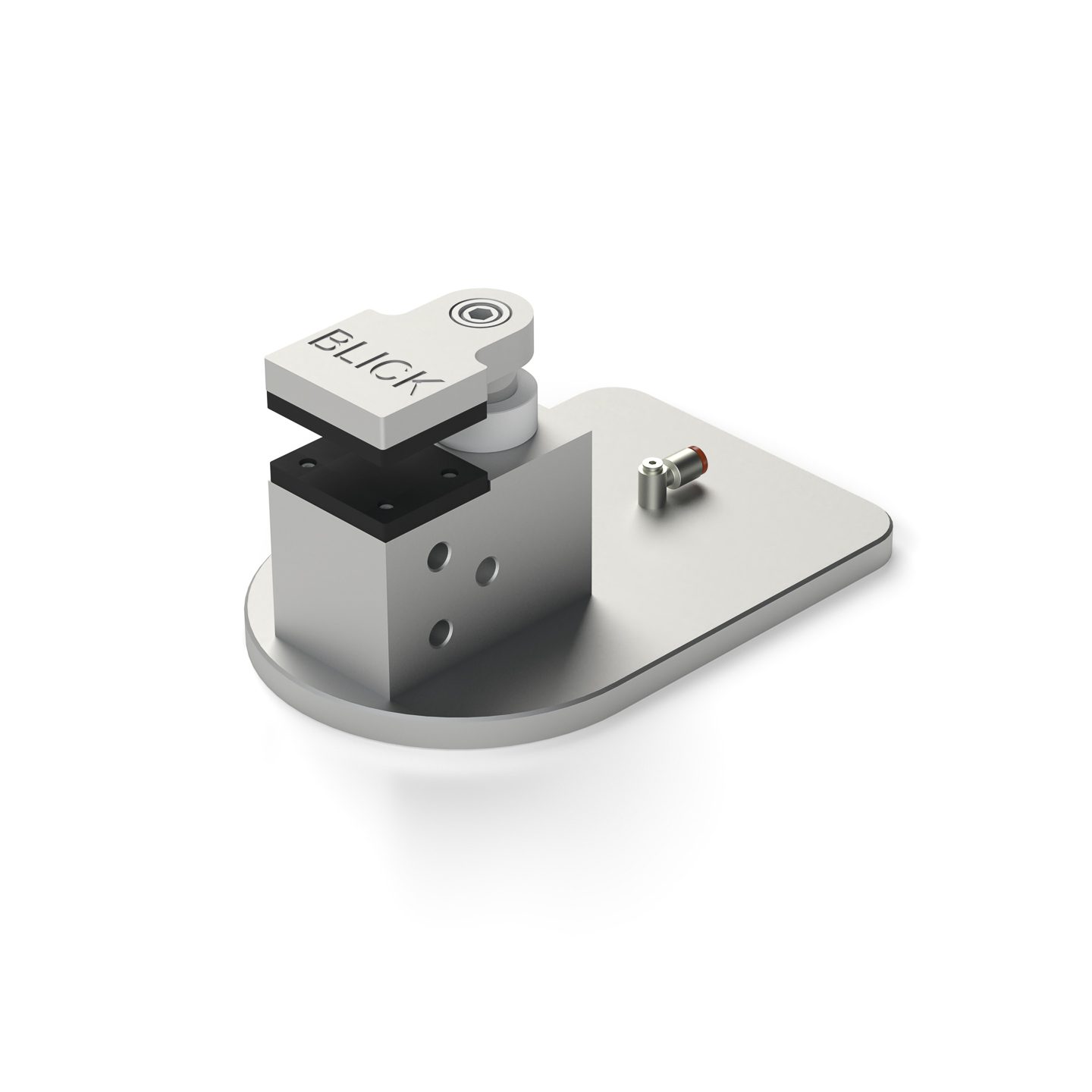

The Large Mechanical Clamp has a large clamping area and range.

  • A heavy-duty build to withstand the harsh environment it is intended to be used.
  • Clamps are used to hold workpieces that are either too small or have regions that are too delicate to be held by vacuum alone.

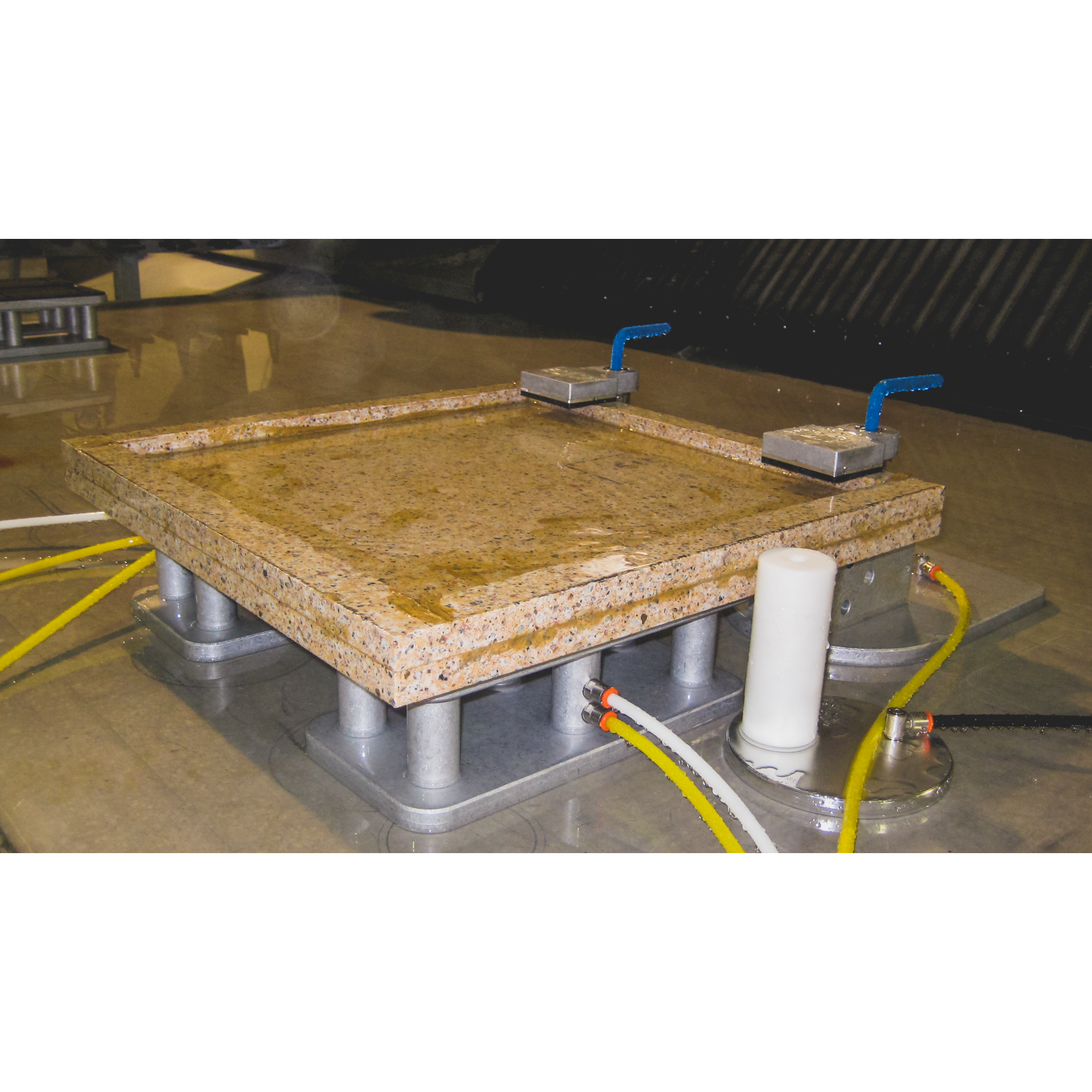

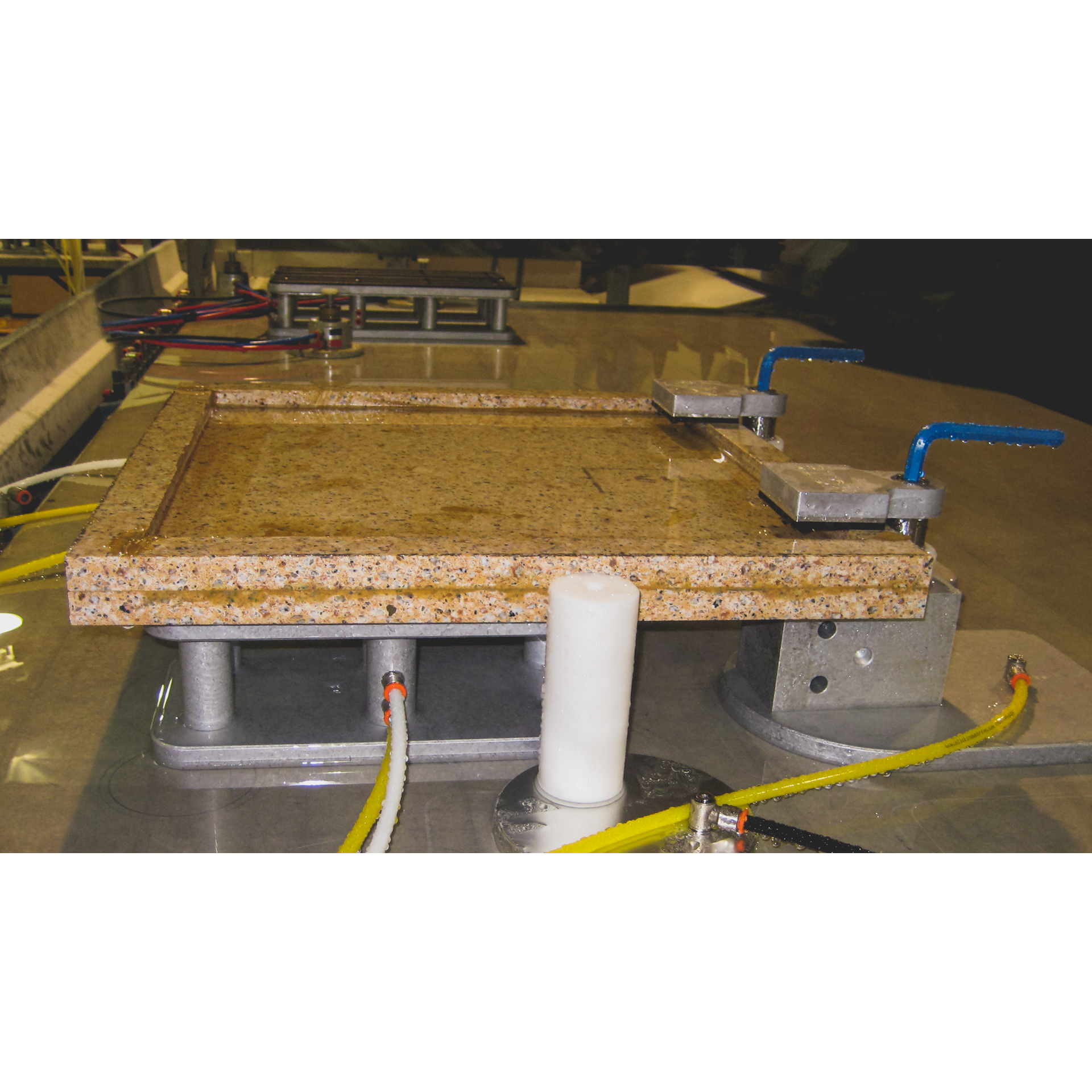

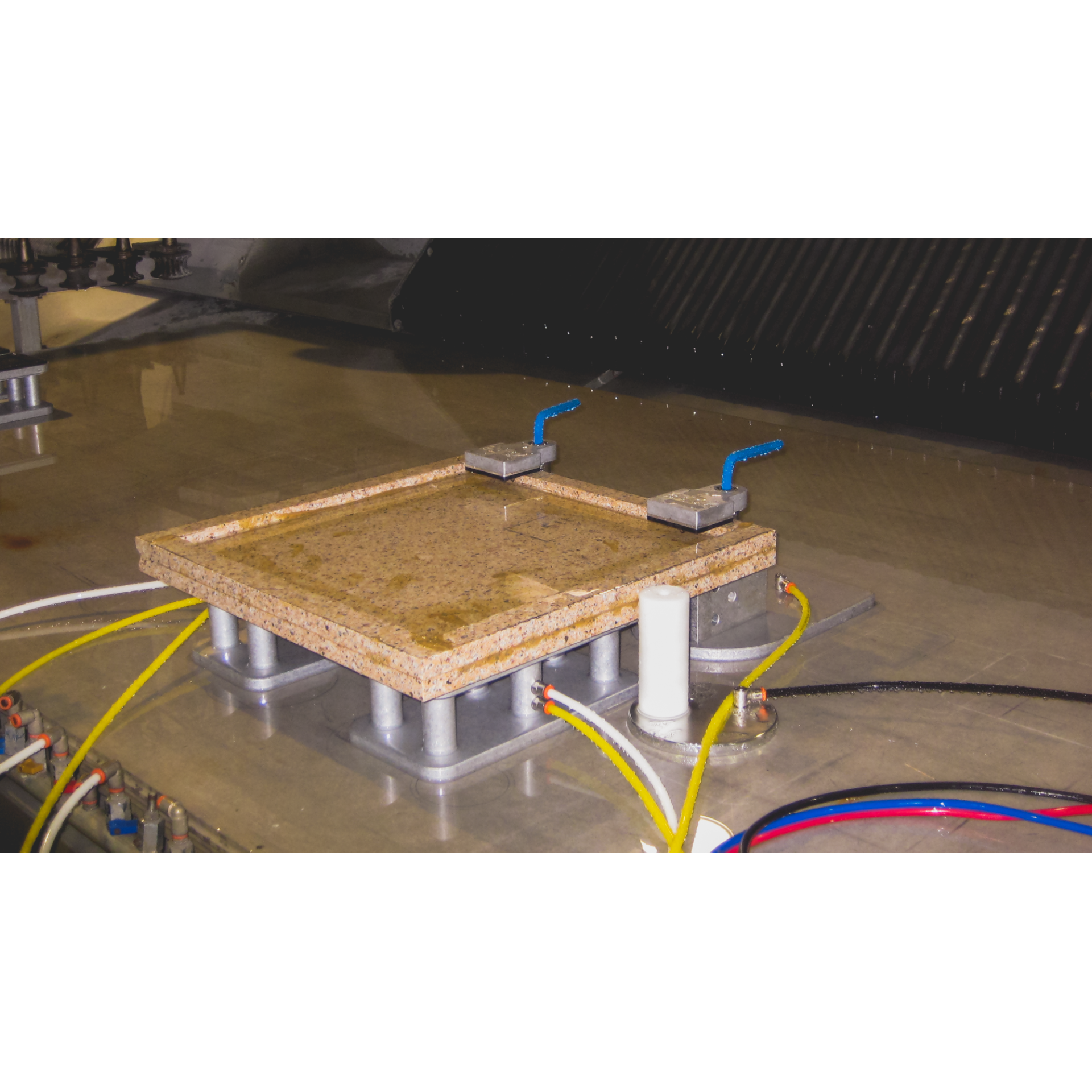

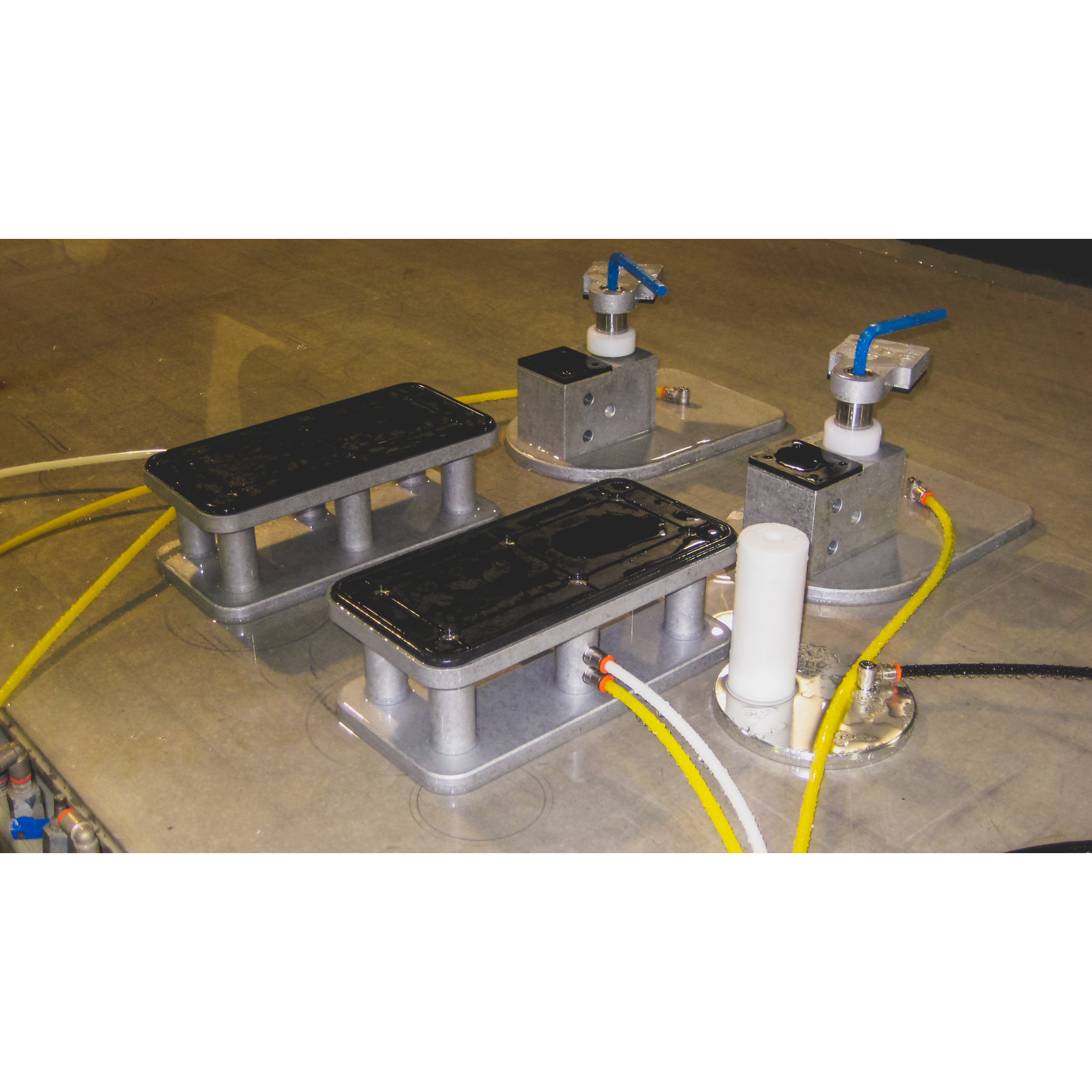

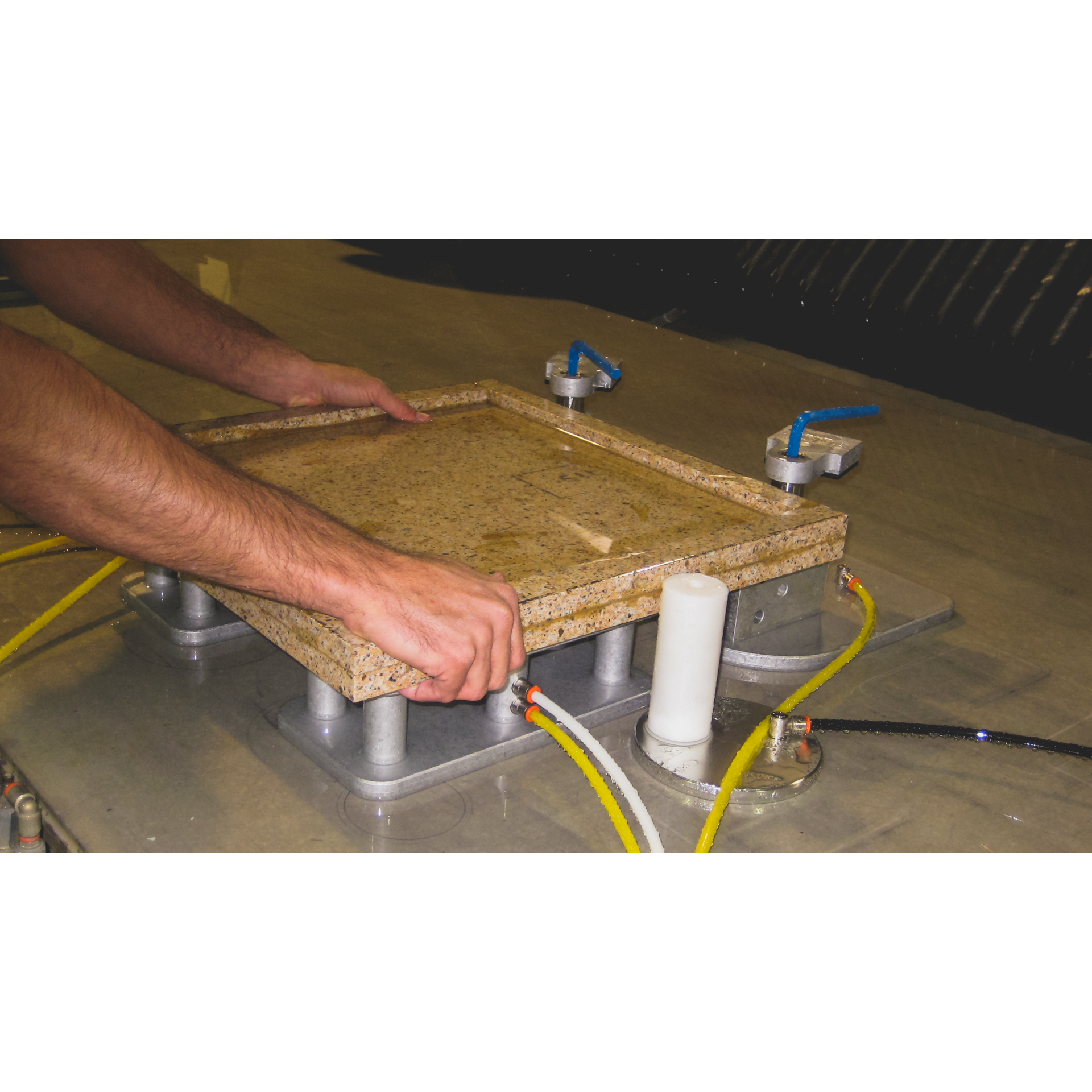

  • The jaw securely grips smaller parts while the large vacuum base holds firm to your machine’s table.

IMPORTANT: Use provided 10 mm alan wrench to avoid overtightening. Overtightening will cause damage to the clamp.

Part Number 13-102-04
Mounting Method Mechanical Screw (12 mm)
Clamping Area 63.5 mm Depth x 76.2 mm Width
(2.5″ x 3″)
Material Thickness* 1.2~4 cm (.47″~1.57″)
Base Surface Area 75 in2
Base Dimensions 200 x 300 mm (7.87″ x 11.81″)
Bottom Seal Part # 13-102-04-11

* More jaw heights are available upon request.

Available in ANY height and most popular fitting sizes.


How to Measure Fittings & Suction Cup Heights
