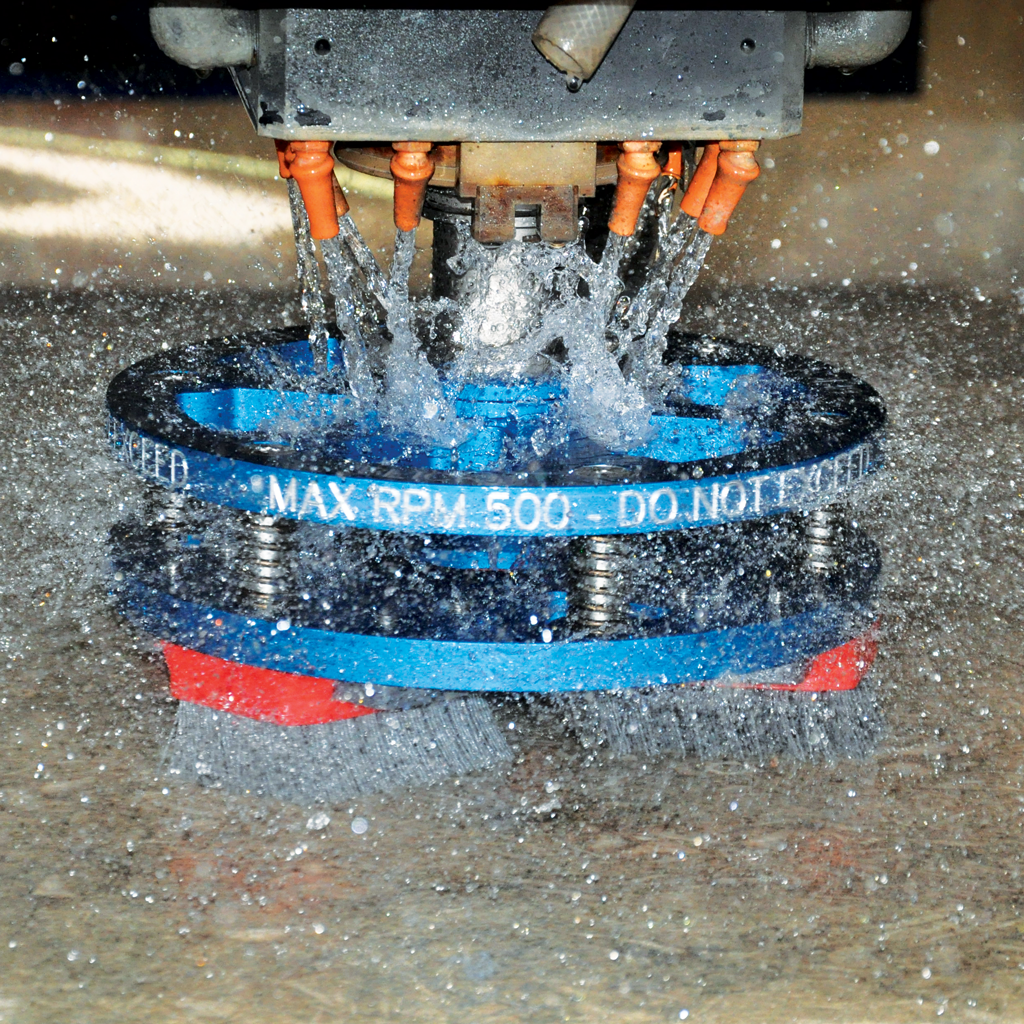

Use your CNC router or bridge saw to leather stone with The Leatherhead!

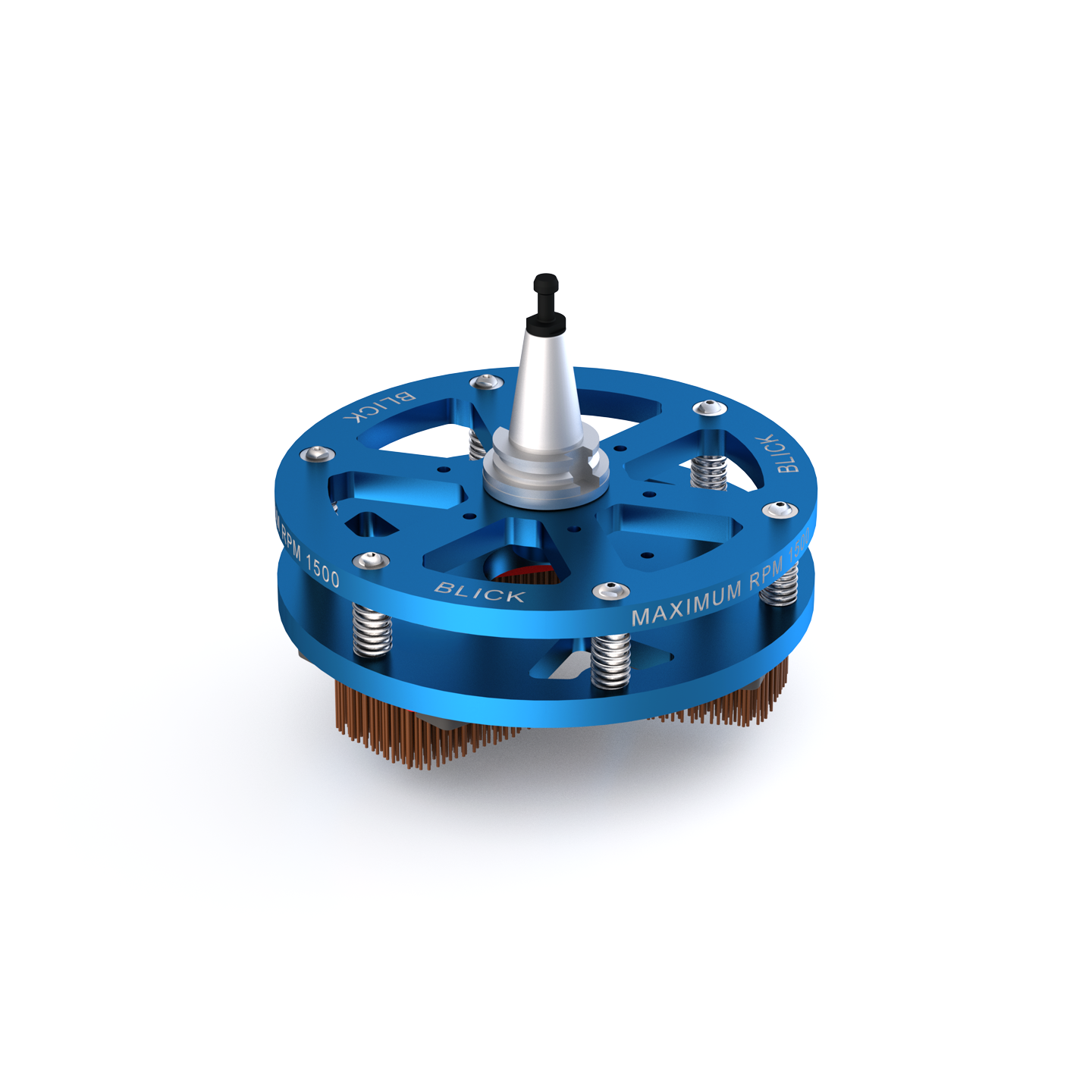

  • The Leatherhead adapts to any 35 mm conic tool holder.

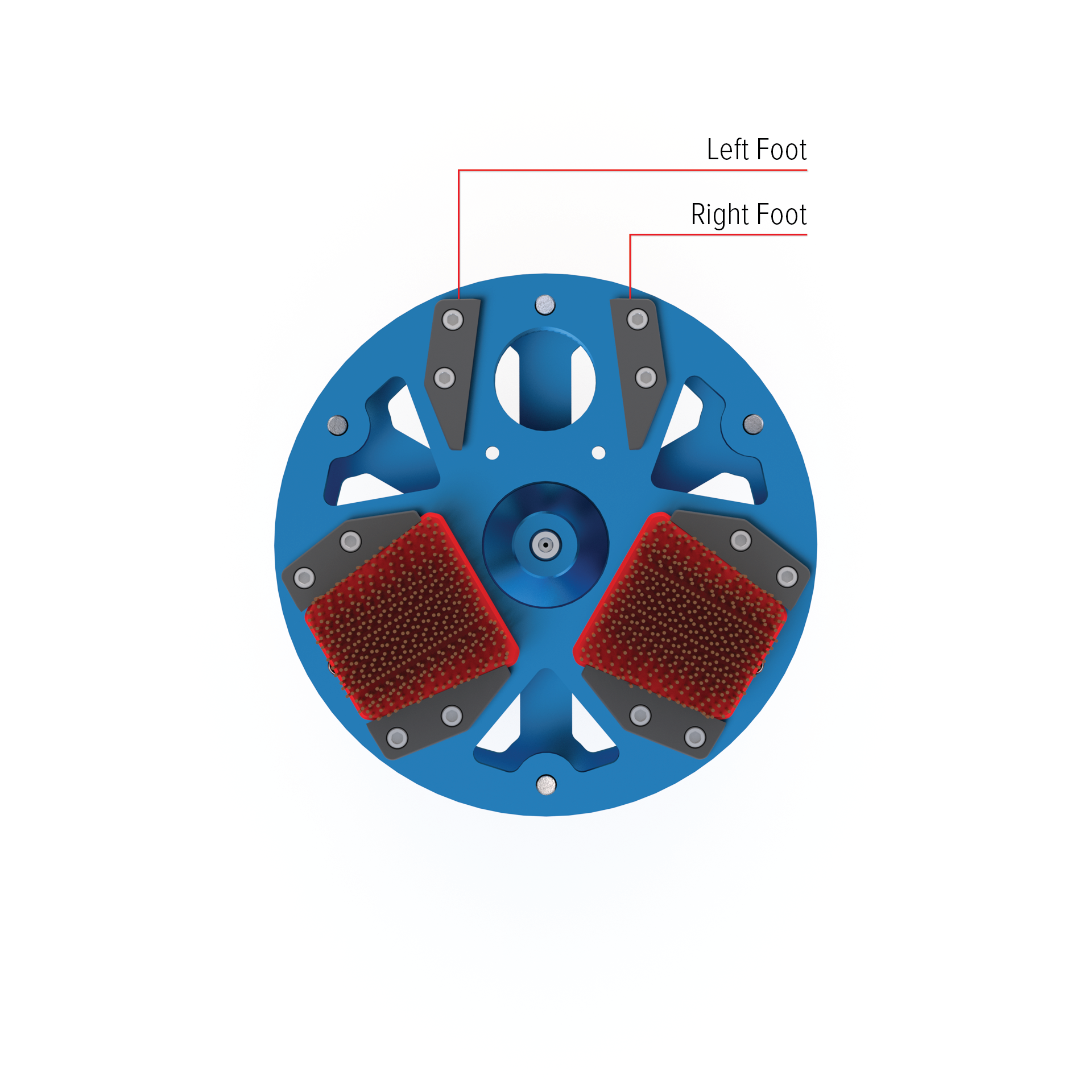

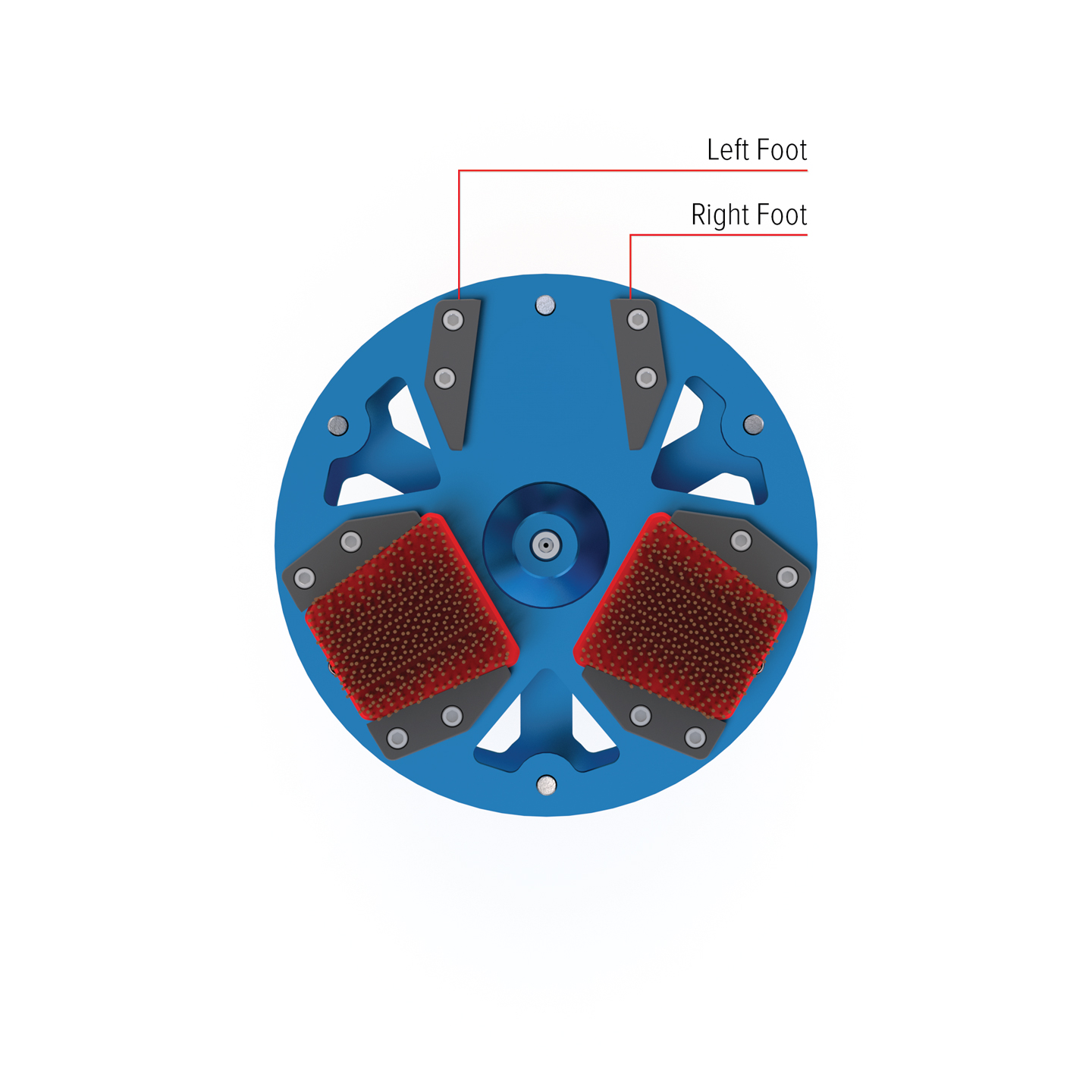

  • Accepts Frankfurt-style brushes (only).

  • Use on belt-driven or electro-spindle machines.

Included with The Leatherhead:

Part Number 14-500-12
Diameter 285.75 mm (11.25″)
Tool Weight ~14 lbs.

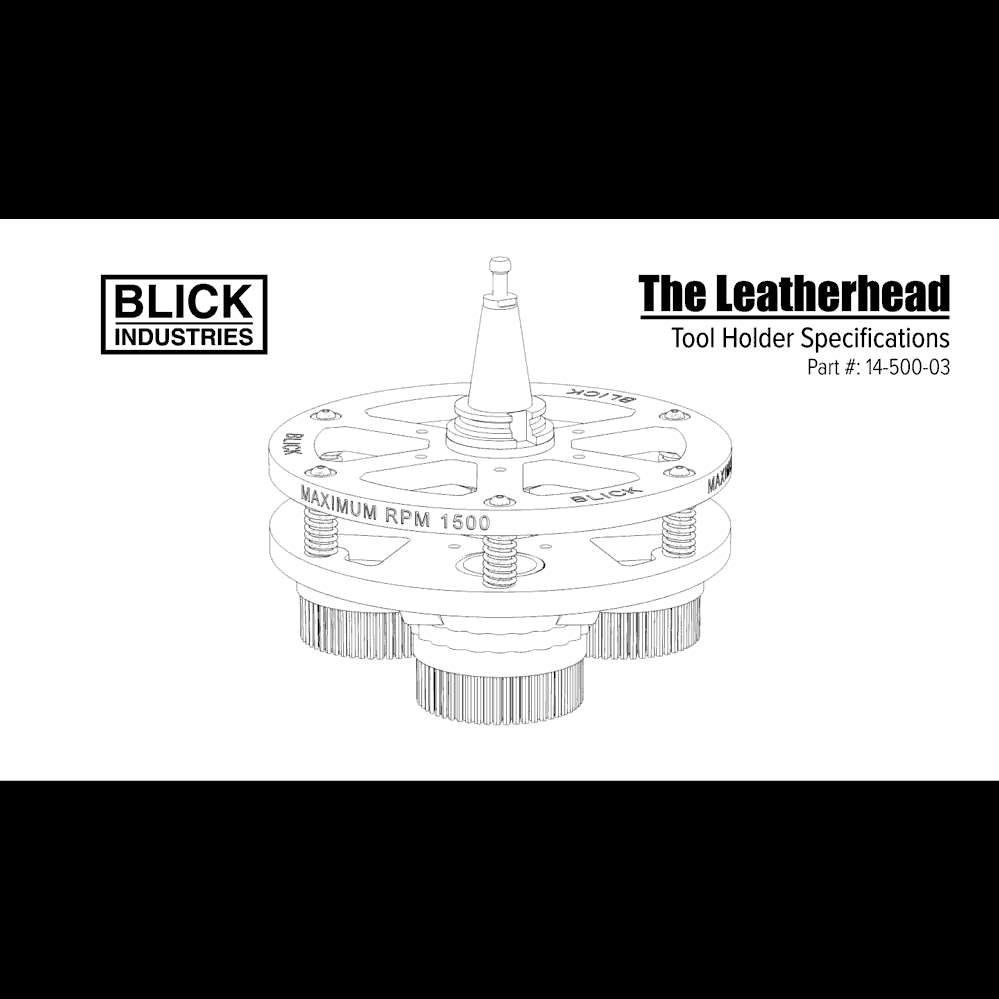

Recommended Tool Holder Size 35 mm Arbor with 39 mm Injection

(Park machine operators – READ HERE)

Overall Length 67 mm (2.625″)
Adaptor Type 35 mm Conic Tool Holder

Spindle Speed 1000 RPM or 1200 RPM < 1500 RPM MAX

(refer to the brush manufacturer’s ideal RPM before setting spindle speed)

Feed Start at 100 inches/minute (2540 mm per minute)

NOTES:

  • The Leatherhead 11.25″ DOES NOT accept Snail Lock brushes.
  • Dimensions and weights are for the tool only and do not include the spacers, brushes, or tool holders.
  • Brushes are not included with Leatherhead.
  • Do NOT subject the tool to more than 1/8″ of compression.
  • When purchasing Tool Holder, customers are to specify through-bolt sizes (M10 or M12)
  • For The Leatherhead with Snail Lock Adaptors, see here.

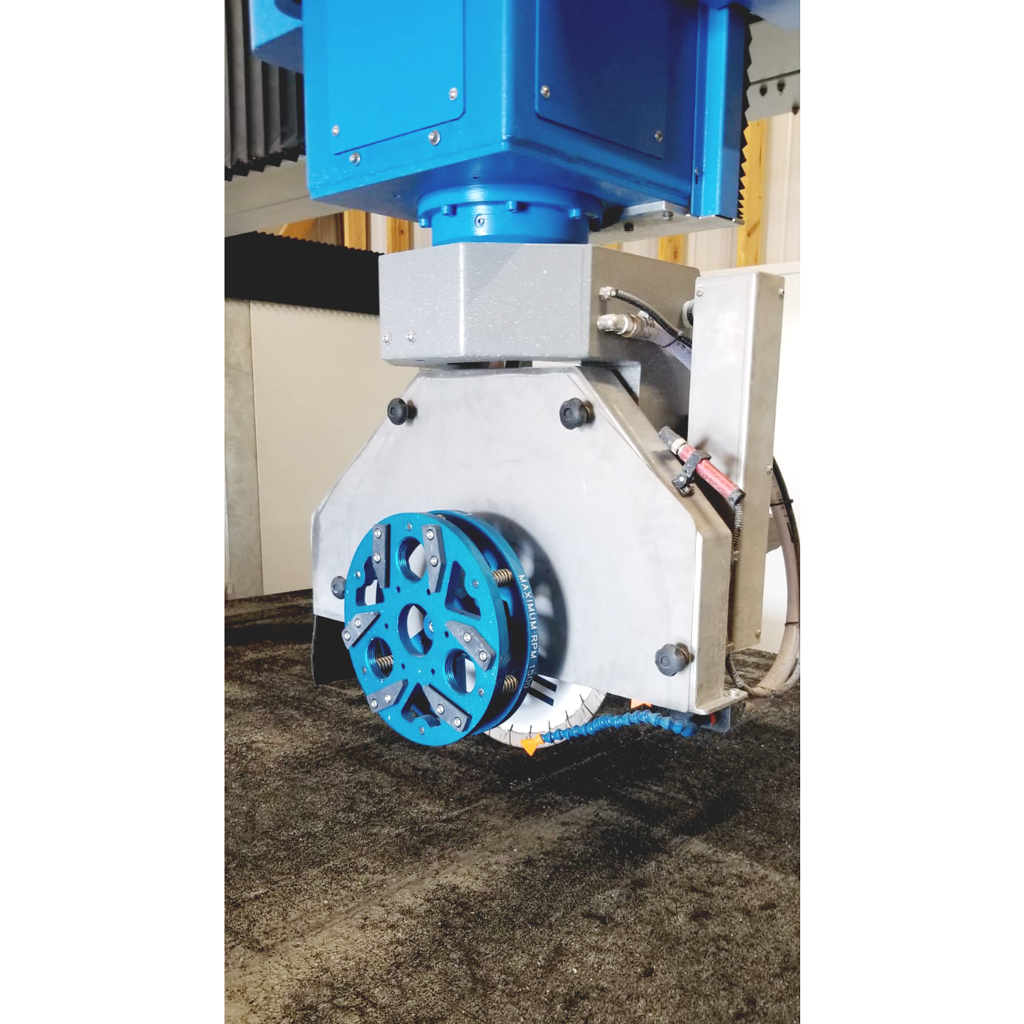

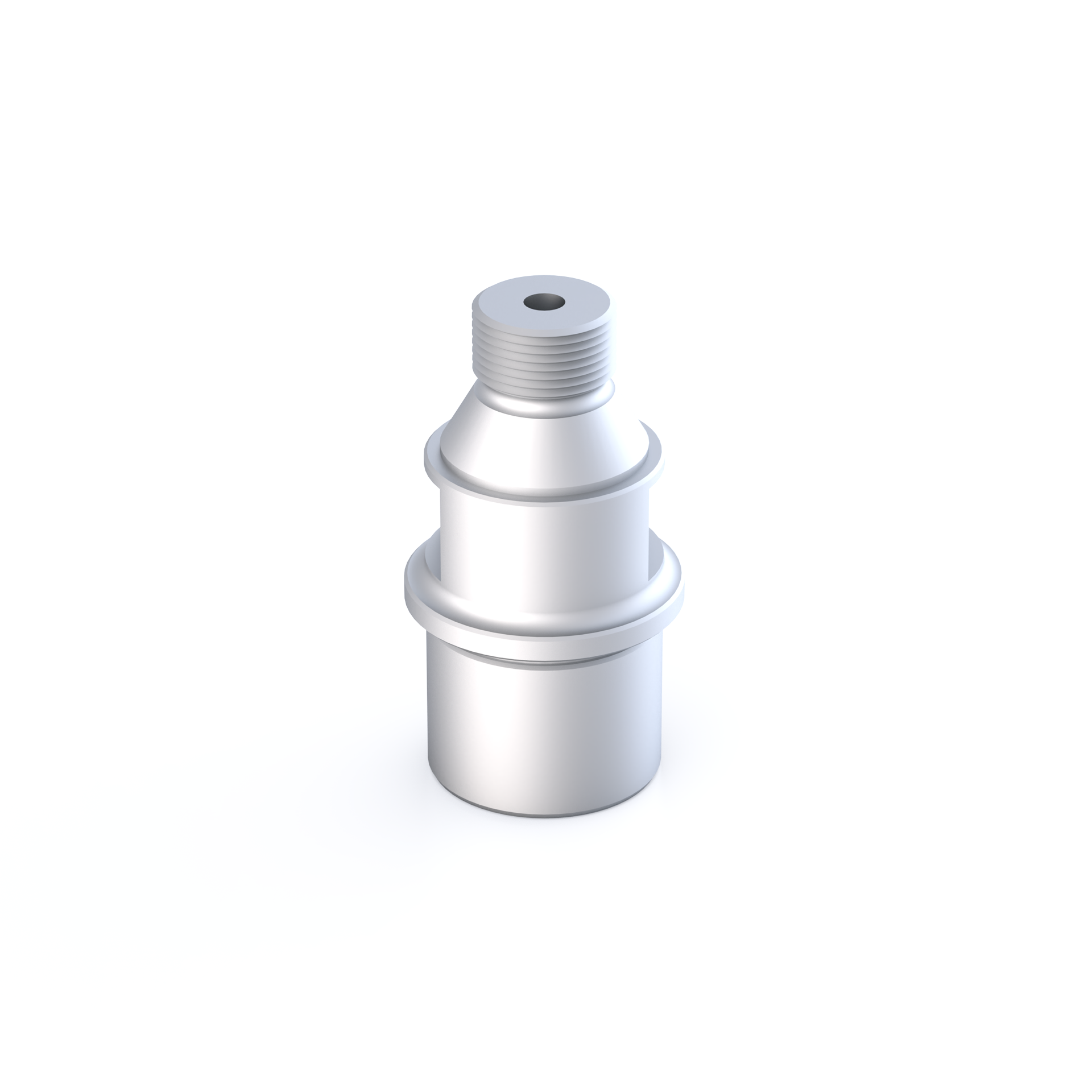

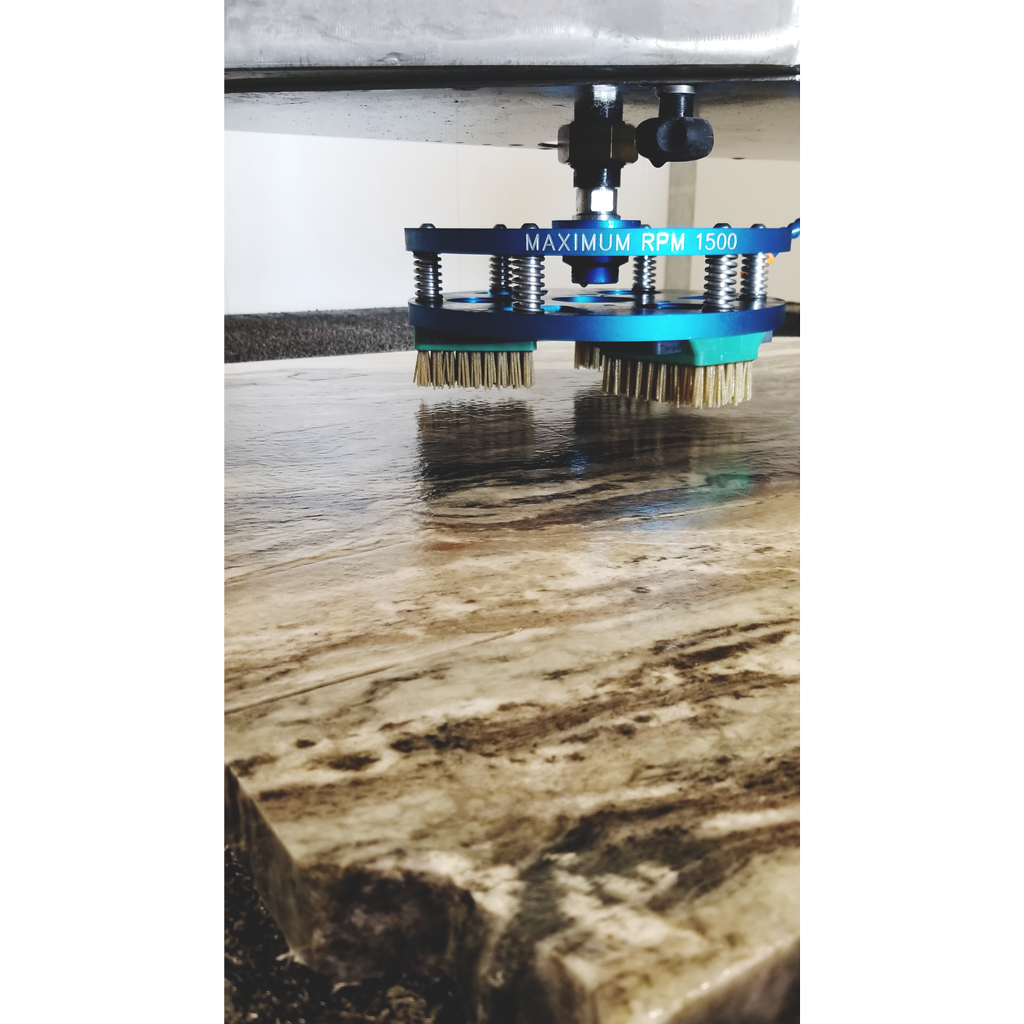

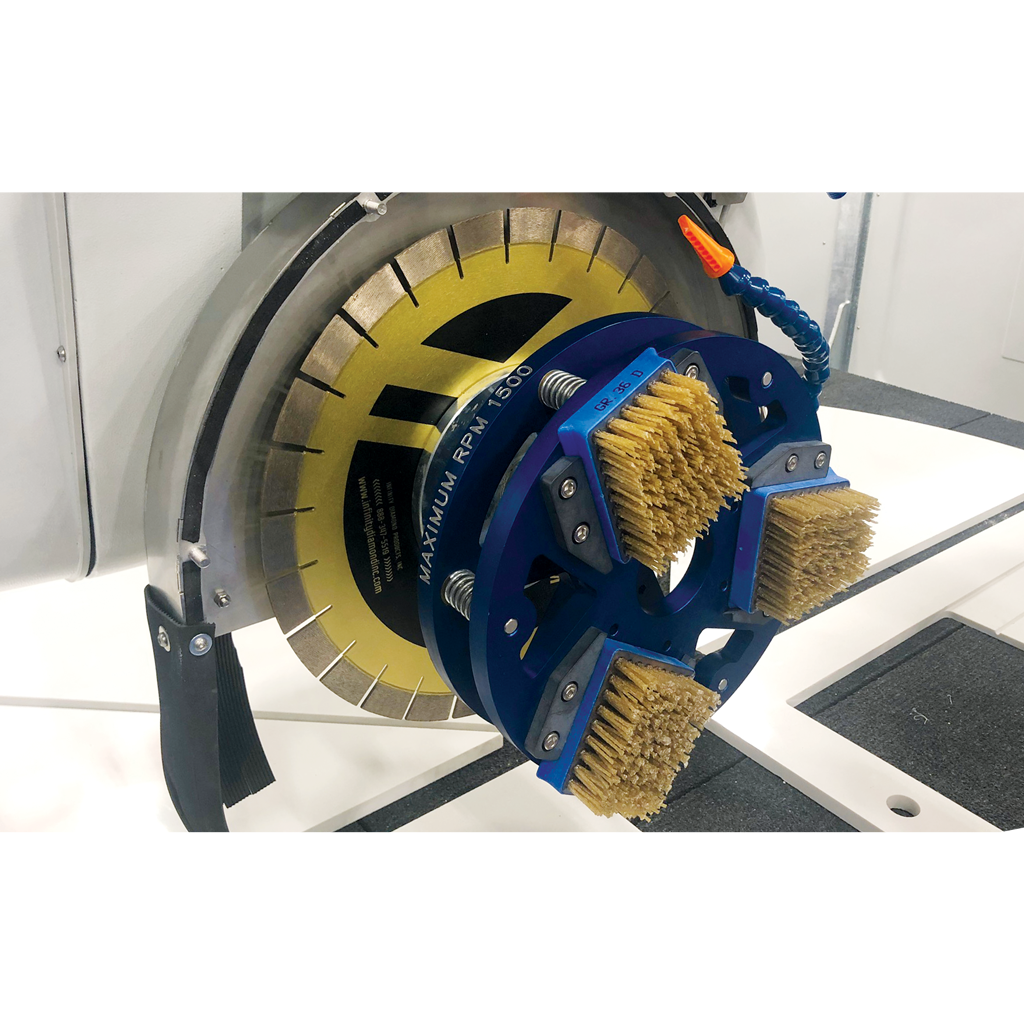

UPDATE! The Leatherhead can now be used with most 5-axis saws with the 1/2″ Gas Adaptor.
