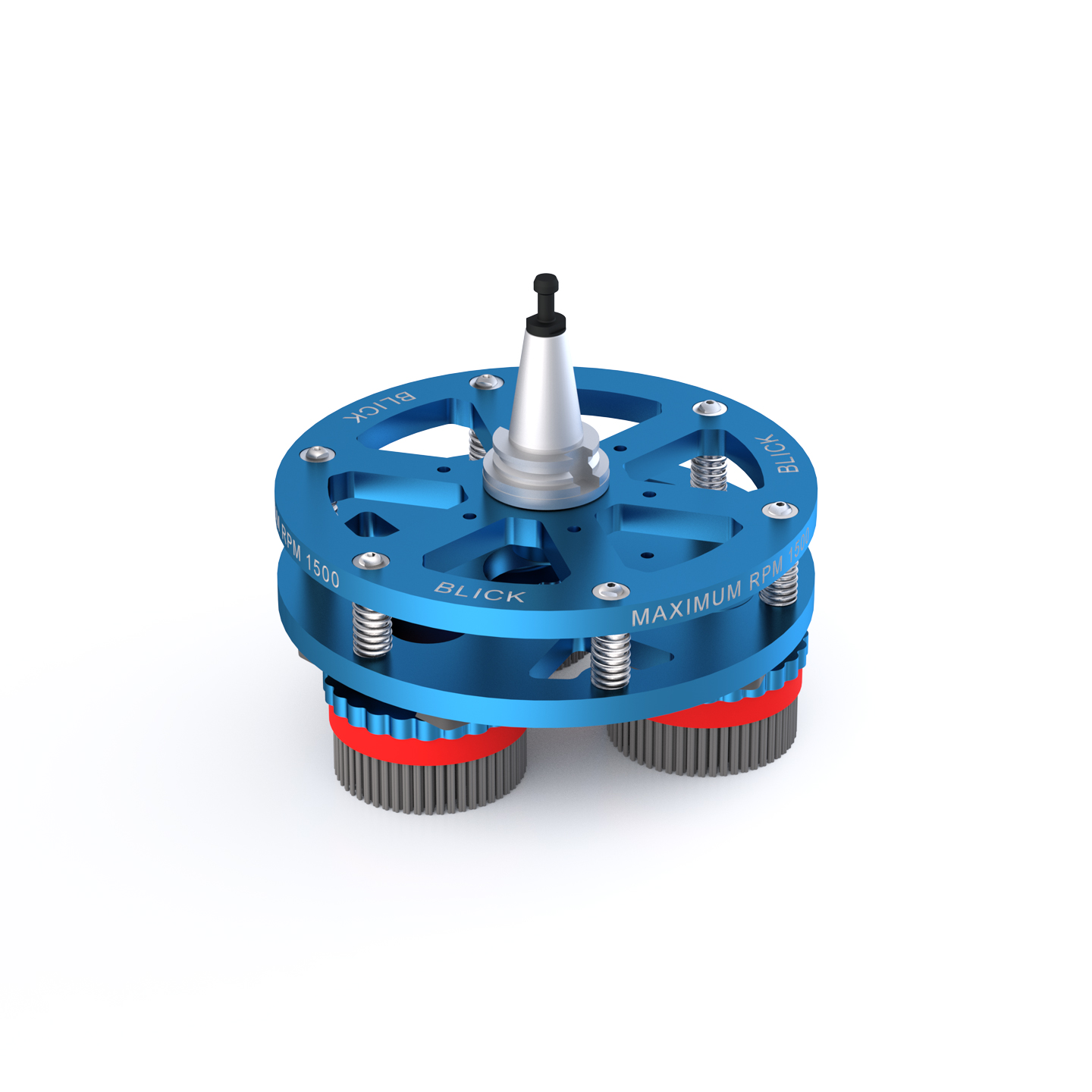

The Leatherhead

$1,495.00

Use your CNC router or CNC bridge saw to leather stone with The Leatherhead!

Out of stock

The Leatherhead adapts to any 35 mm conic tool holder.

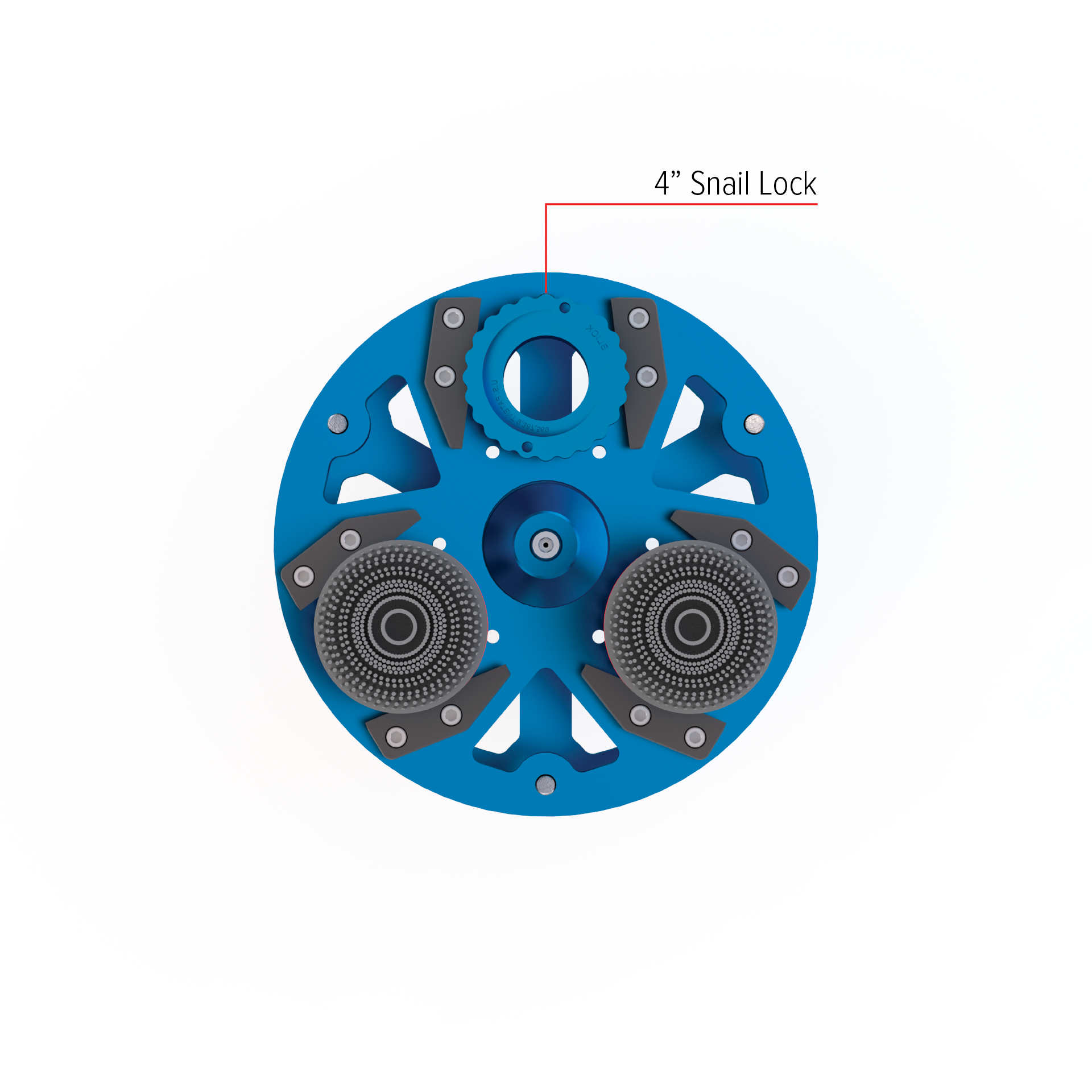

  • Accepts Frankfurt-style brushes or 4”, 5”, and 6” snail lock brushes.
  • Can be used on belt-driven and electro-spindle machines.

Included with Leatherhead:

Part Number 14-500-03
Diameter 323.85 mm (12.75″)
Tool Diameter 139.70 mm (5.5”)
Tool Weight ~16.5 lbs.
Overall Length 67 mm (2.625″)
Adaptor Type 35 mm Conic Tool Holder

(See diagram)

Spindle Speed 1000 RPM or 1200 RPM < 1500 RPM
Feed Start at 100 inches/minute (2540 mm per minute)

NOTES:

  • Dimensions and Weight are for the tool only and they do not include the brushes or tool holder.
  • Brushes are not included with Leatherhead.
  • Customer to specify through-bolt sizes (M10 or M12)

UPDATE! The Leatherhead can now be used with most 5-axis saws with the 1/2″ Gas Adaptor.
