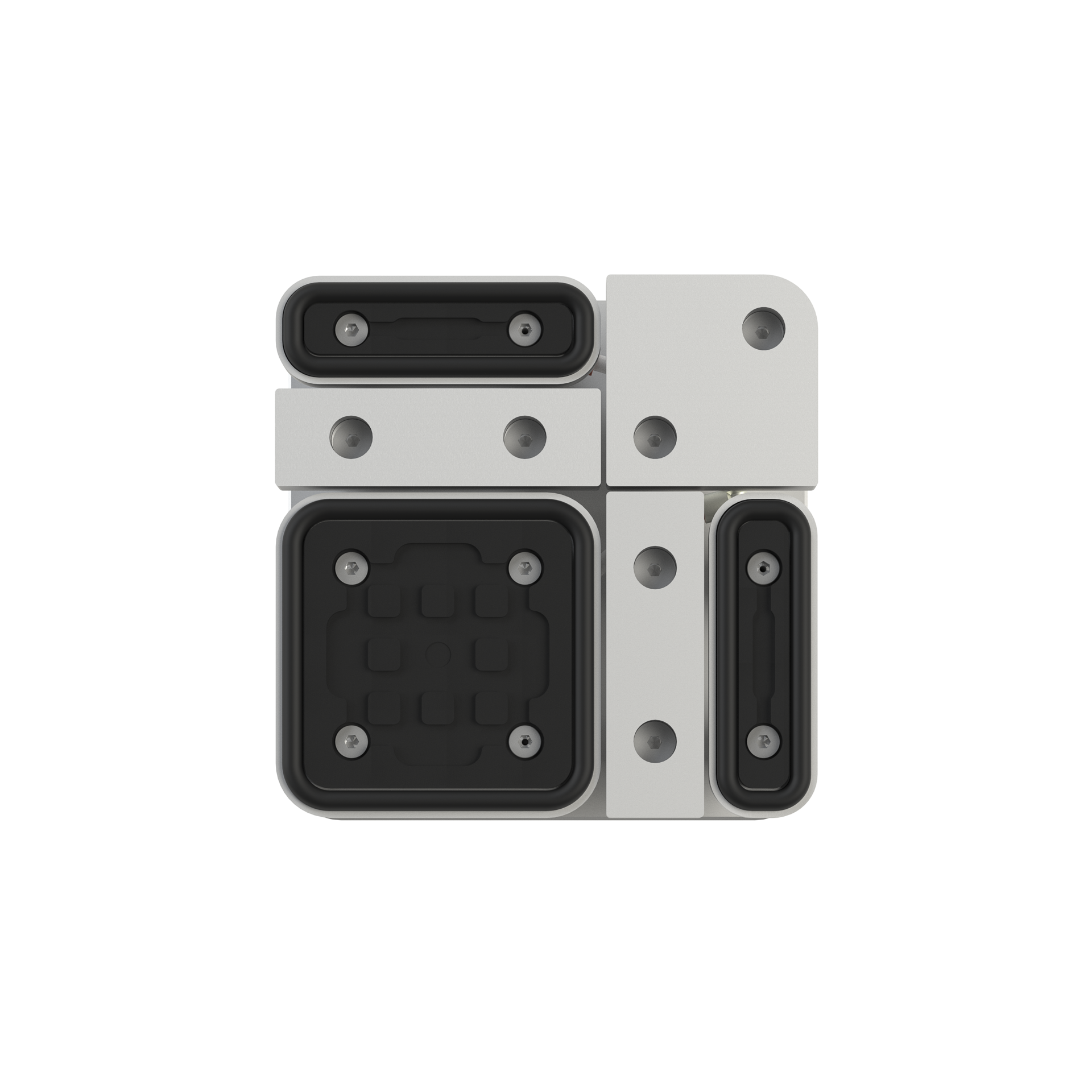

Miter Cup – Corner
Miter Cups allow you to cut a mitered edge on your CNC machine.
- Ideal for Fabcenters and CNC machines with a saw attachment
- Has a replaceable material that you can saw into
|Base Cup Dimensions||250 x 250 mm
(9.84″ x 9.84″)
|Base Surface Area||87 in2|
|45 x 150 mm Saw Top Part #||12-600-12-14|
|98 x 98 mm Saw Top Part #||12-600-12-05|
|Top Seal Part #||12-600-12-04|
|Bottom Seal Part #||12-600-12-11|
Available in ANY height and in most popular fitting sizes.
How to Measure Fittings & Suction Cups
When ordering suction cups, we’ll need to know what height you need, and what air fitting size you are using. The height is defined as the distance from the aluminum base of the suction cup to the top of the hard rubber bearing surface on top of the suction cup. It is important not to include the top seal in the measurement. The air fitting size is the outside diameter of the tubing that you are using.
To obtain precision height measurements, the suction cup must be held down to a flat surface by vacuum (using its own base) and the top of the hard rubber bearing surface must be measured using a height gauge. Since most fabricators do not have this equipment, we recommend sending a sample to us to be measured.
