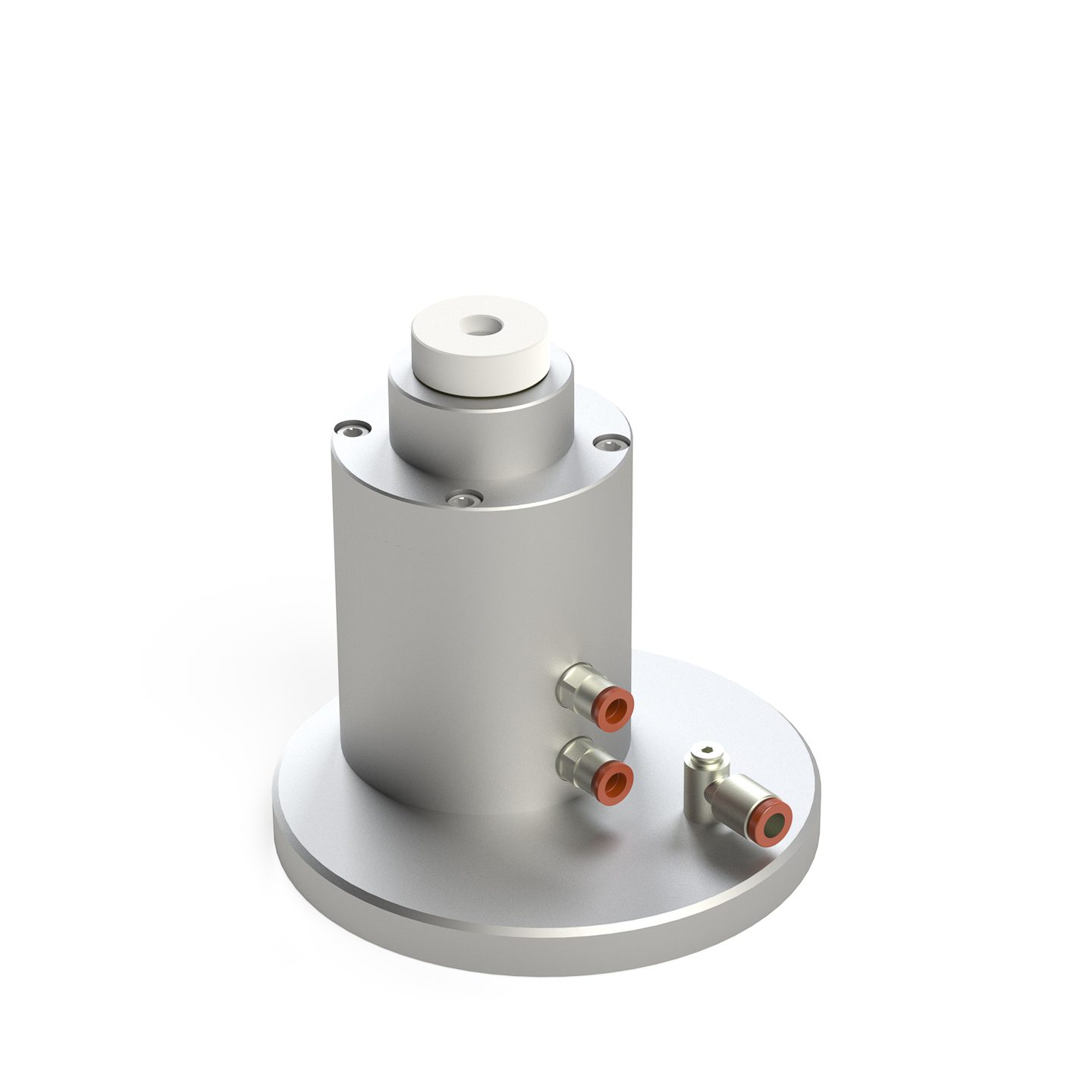

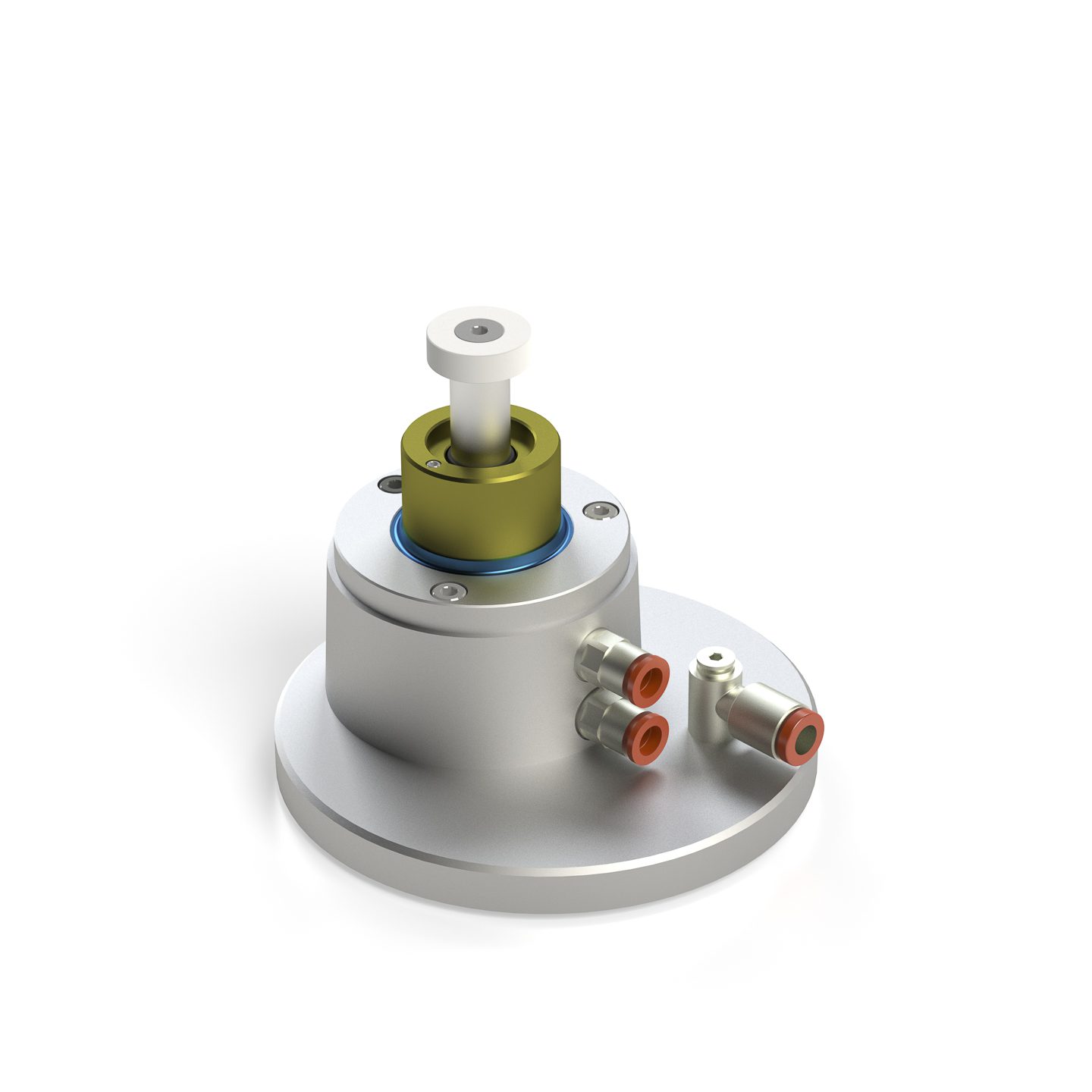

Pneumatic Vac-stops (Vacuum Back Stops)

$375.00$450.00

Pneumatic Vac-stops provide a repeatable, automated way to locate workpieces.

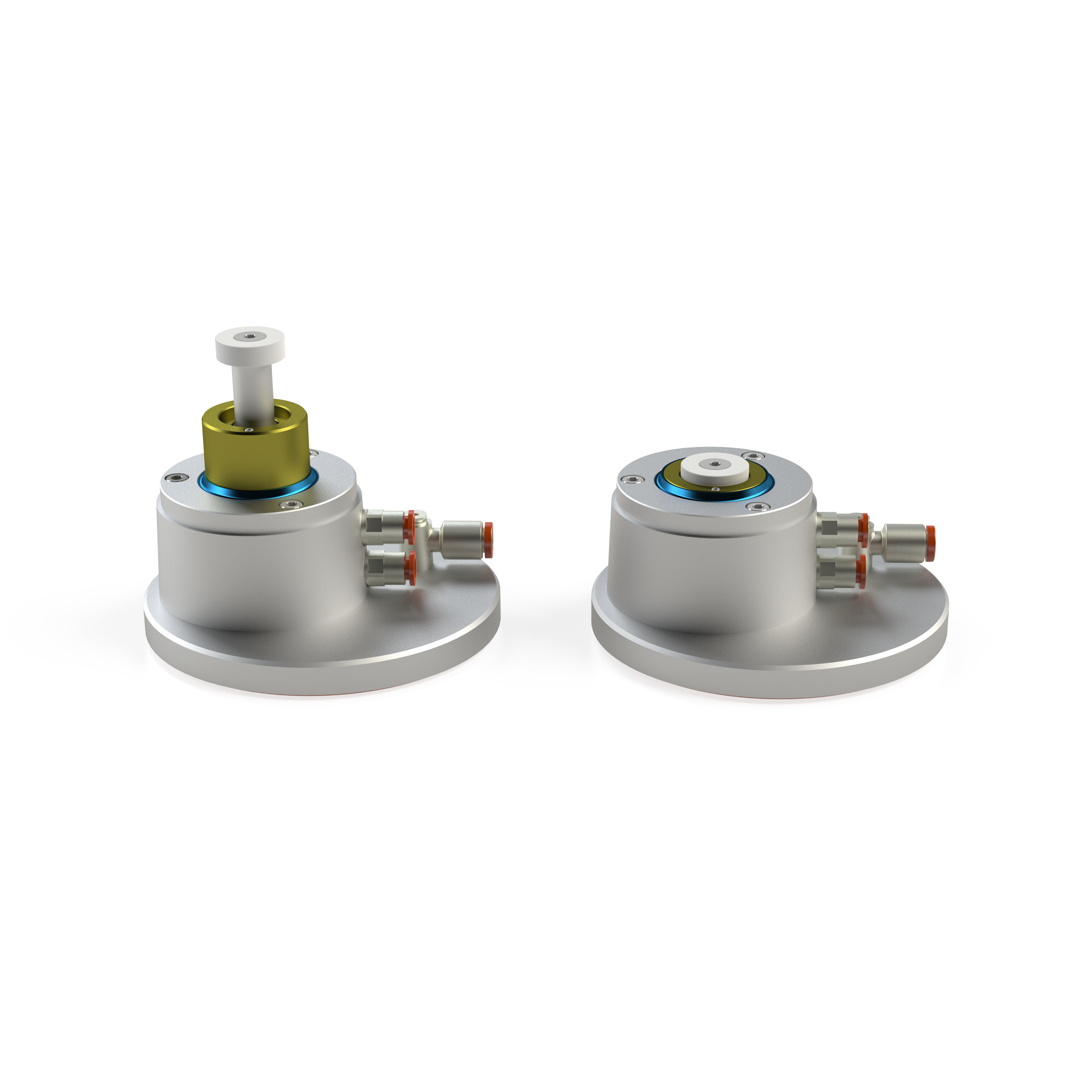

They serve as a rigid reference point during setup which can then be lowered automatically providing clearance for cutting tools while the machine is in operation.

Part Number 11-101-01 11-101-05 11-101-04
Machine Height 105 mm (4.13″) 150 mm (5.9″) 180 mm (7.08″)
Height in Down Position 66 mm (2.6″) 111 mm (4.4″) 141 mm (5.5″)
Height in Up Position 114 mm (4.5″) 159 mm (6.3″) 189 mm (7.4″)

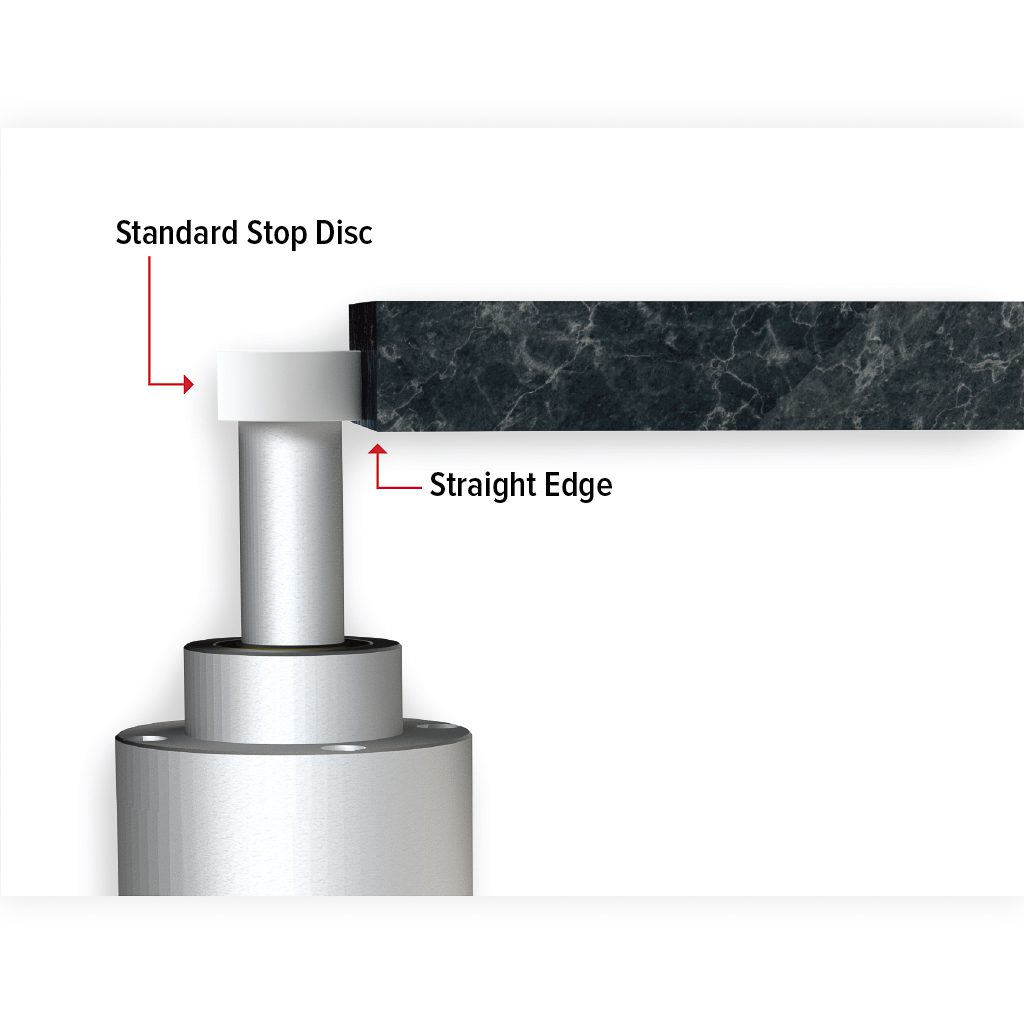

Back Stop Disc 26 mm (1.02″)
Base Surface Area 22.2 in2
Base Dimensions 140 mm (5.51″)
Bottom Seal Part # 11-101-01-13

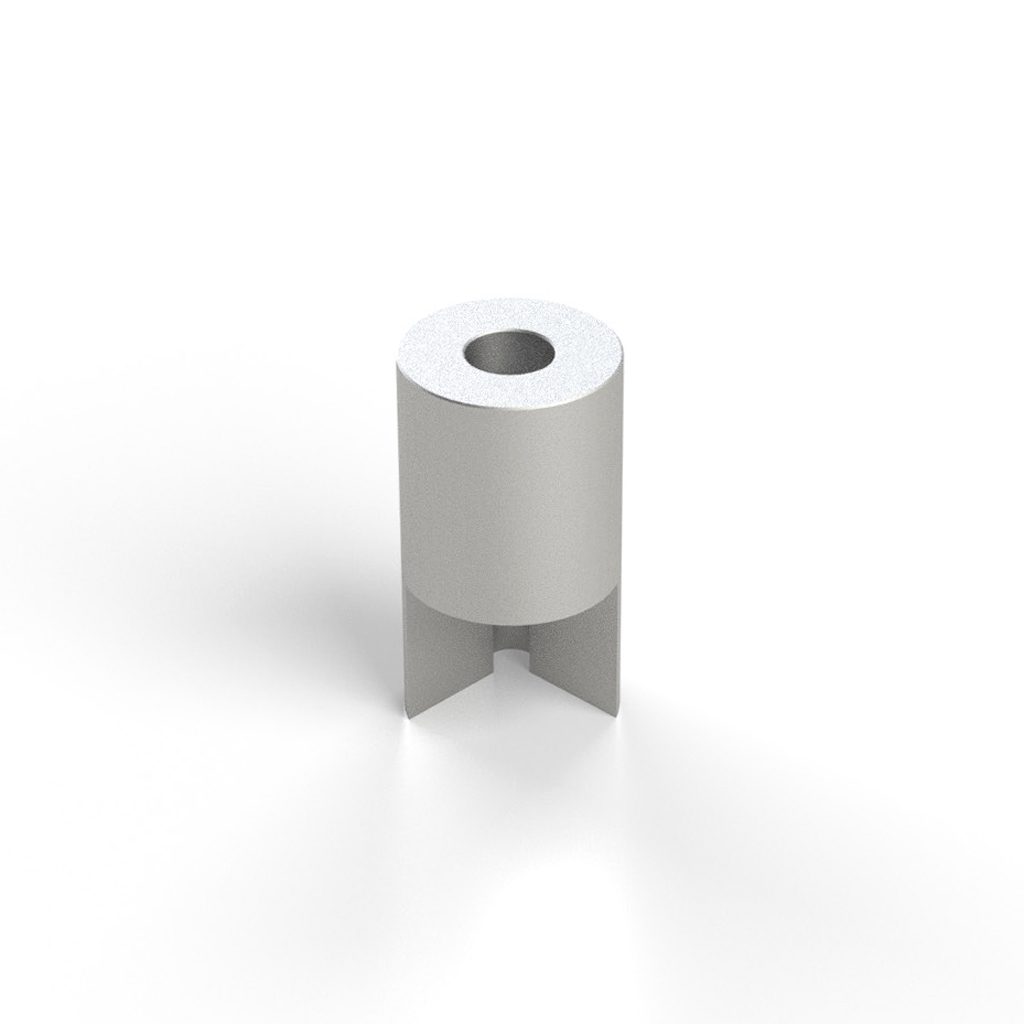

Location Method 26 mm Aggregate

How to Measure Fittings & Suction Cup Heights
