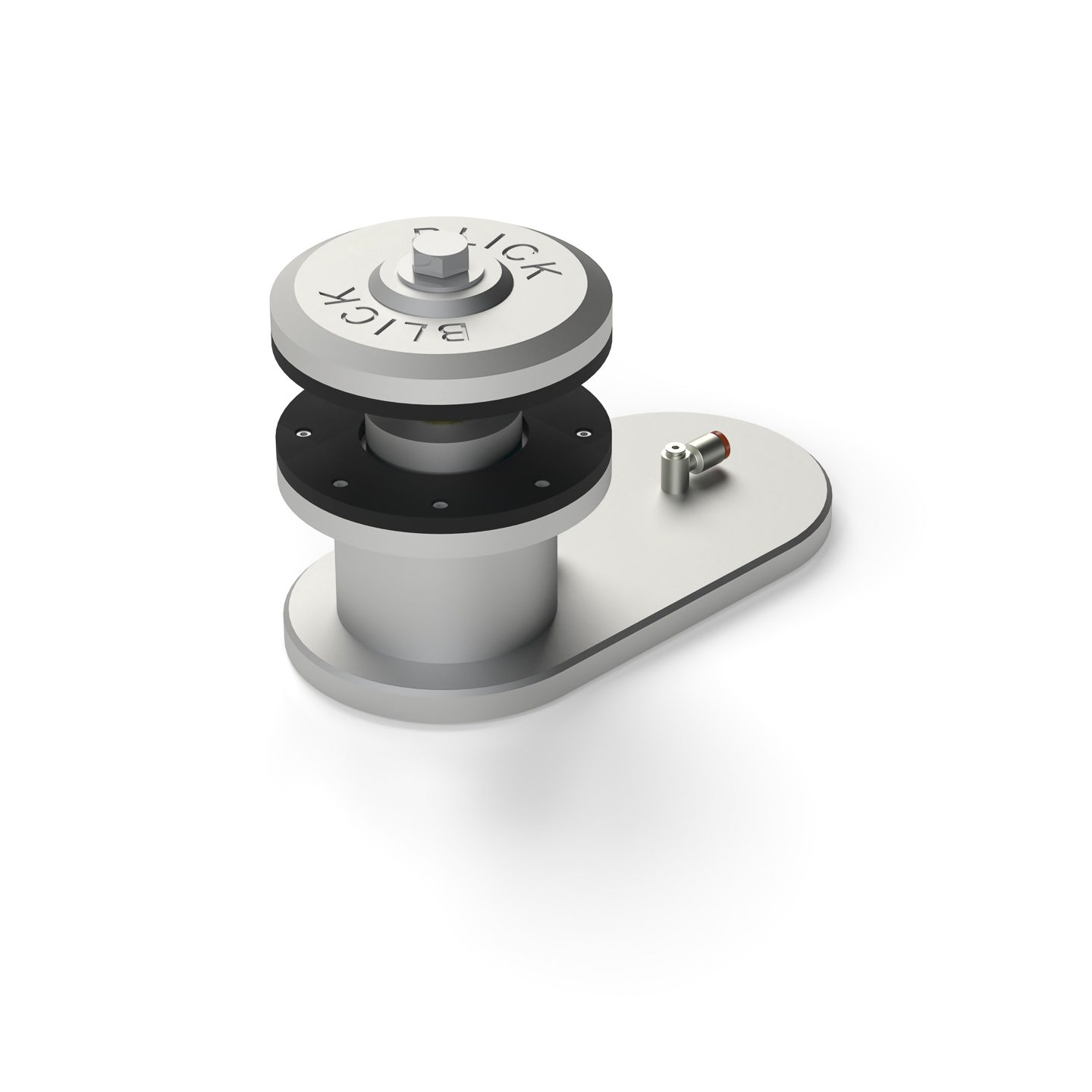

Pneumatic Mushroom Clamp by Blick Industries

The Pneumatic Mushroom Clamp offers the same automation as the Pneumatic Swing Clamp.

Part Number	13-103-01
Clamping Method	Pneumatic Cylinder
Clamping Area (Circular Ring)	152 mm OD x 70 mm ID (6″ x 2.75″)
Material Thickness	0.8~4.4 cm (0.32″~1.73″)
PSI	80 PSI
Base Surface Area	52.5 in²
Stop Diameter	75 mm (2.953″)
Bottom Seal Part #	13-103-01-11

How to Measure Fittings & Suction Cup Heights

Downloads

DOCUMENT	CATEGORY	LINK	SIZE
BLICK INDUSTRIES Catalog	Catalog	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_2022_Catalog_web.pdf	23 MB
How to Measure Suction Cup Heights & Air Fittings	Fittings	https://www.blickindustries.com/wp-content/uploads/2020/02/BLICK_Fittings-SuctionCups_20200210_Measurments.pdf	397 KB
Anatomy of a Suction Cup	Suction Cups	https://www.blickindustries.com/wp-content/uploads/2022/06/Anatomy200x200_20220620.pdf	2 MB
Suction Cup Seal Lengths	Suction Cups	https://www.blickindustries.com/wp-content/uploads/2023/12/SuctionCup_SealChart_20231221.pdf	829 KB
How to Measure Valves	Fittings	https://www.blickindustries.com/wp-content/uploads/2020/12/BLICK_Valve-Port-Mani_20201202_Measur.pdf	333 KB
Isolator Kit	Tools & Accessories: Vacuum Systems	https://www.blickindustries.com/wp-content/uploads/2024/11/BlickIndustries_IsolatorKit_20241105.pdf	937 KB
Leatherheads & Accessories	Tools & Accessories	https://www.blickindustries.com/wp-content/uploads/2024/03/BLICK_Leatherheads+Accessories_20240224.pdf	2.24 MB
Repair Form	Forms	https://www.blickindustries.com/wp-content/uploads/2022/11/Blick_Repair-Form_20221130.pdf	82 KB
Dimensions Diagram - 26 mm Edge Locating Pin	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_26mm-Edge-Locat-Pin_20200803.pdf	KB
Dimensions Diagram - 50 mm Edge Locating Pin	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_50mm-Edge-Locat-Pin_20200803.pdf	484 KB
Dimensions Diagram - 50 mm Edge Locating Pin EL	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_50mm-Edge-Locat-Pin-EL_20200803.pdf	483 KB
Incoming Vacuum Lines - Manifold for INTERMAC Machine (Right)	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-02_Intermac-Mani_20200828.pdf	844 KB
Incoming Vacuum Lines - Manifold for INTERMAC Machine (Left)	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-01_Intermac-Mani_20200828.pdf	855 KB
Replacement Parts - Intermac Manifolds	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/INTERMAC-Mani_Replace-Parts_20200828.pdf	134 KB
Height Diagram - Stop Locator Tool	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/08/Stop-Locator-Tool-Diagram.pdf	929 KB
Dressing Tool Assembly & Body Lengths	Tools & Accessories	https://www.blickindustries.com/wp-content/uploads/2020/08/20-022-0x_Dressing-Tool-Assembly_20190520_All_1920.pdf	1 MB
Overview - Backsplash Clamp System	Clamps	https://www.blickindustries.com/wp-content/uploads/2018/06/BSClampInstructions.pdf	66 KB
Blowback Kit Setup Diagram	Manifolds	https://www.blickindustries.com/wp-content/uploads/2021/03/BlowbackKit_SetupDiagram_20210219.pdf	38 KB
Ghost Markings	Service & Repairs	https://www.blickindustries.com/wp-content/uploads/2024/04/BI_Vacuum-Pod_Ghost-Mark_Info.pdf	3 MB

Pneumatic Mushroom Clamp

$655.00

The round clamping area allows parts to be held from any direction and also allows the option of holding two parts (same thickness) at the same time.

Height

90 mm
105 mm
120 mm
150 mm
160 mm
180 mm
200 mm
213 mm
Other

Pneumatic Air Fittings

6 mm
8 mm (5/16 in)

Vacuum Line Fittings

6 mm
8 mm (5/16 in)
10 mm
Other

Clear

Tags: 150x300 Clamps Mushroom PneumaticCategories: Clamps, Pneumatic ClampsSKU: 13-103-01
