Perfect for profiling backsplashes, thresholds, stair treads, and wall caps
- Solid rubber vulcanized friction pads promote superior holding

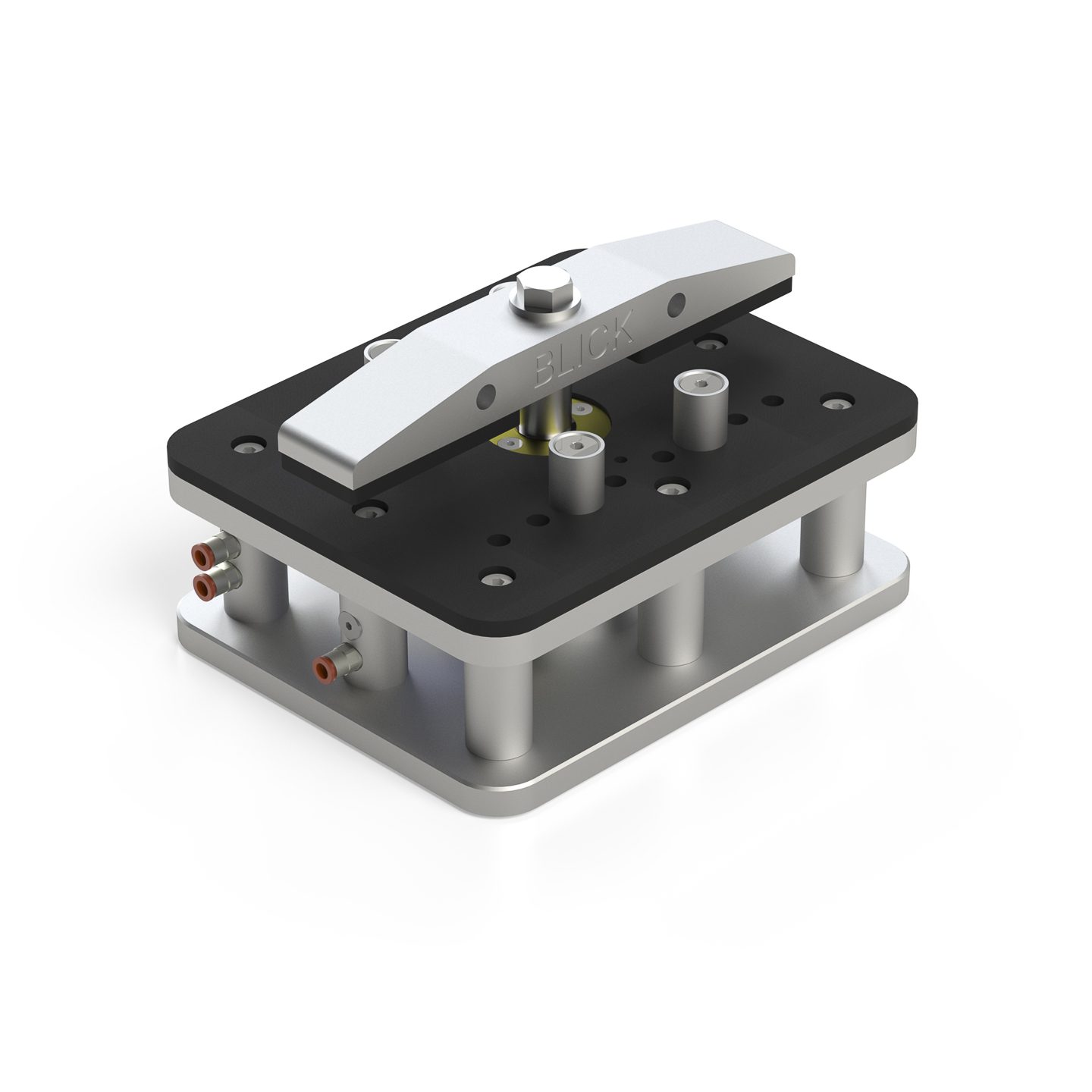

- Each pneumatic clamp provides up to 700-lbs. of clamping force
- Easily adjustable for different widths
- The width of each clamp is roughly 9.5″

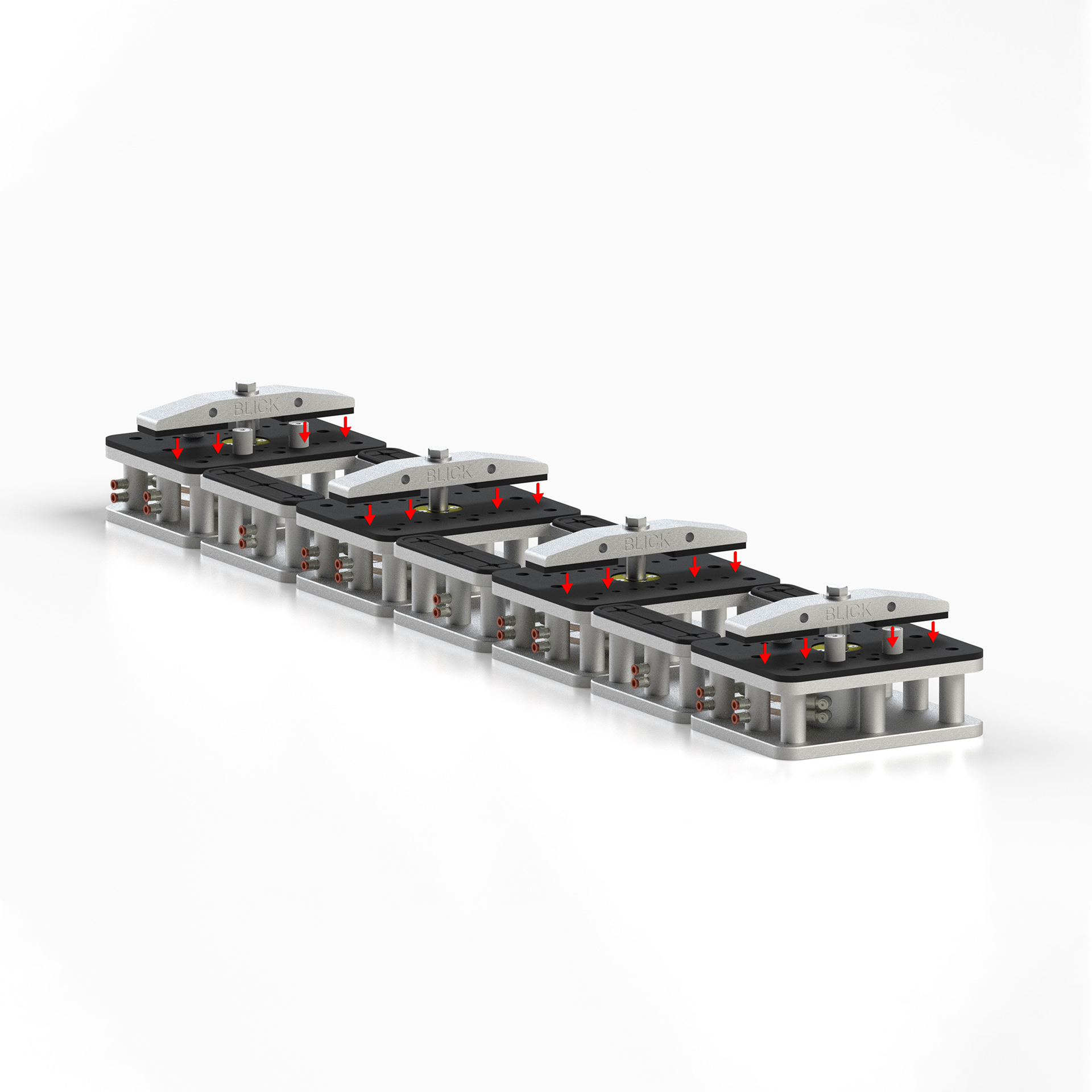

- Clamping units provide the necessary downward pressure to securely hold the work while suction cups support the work between clamps and prevent vibration

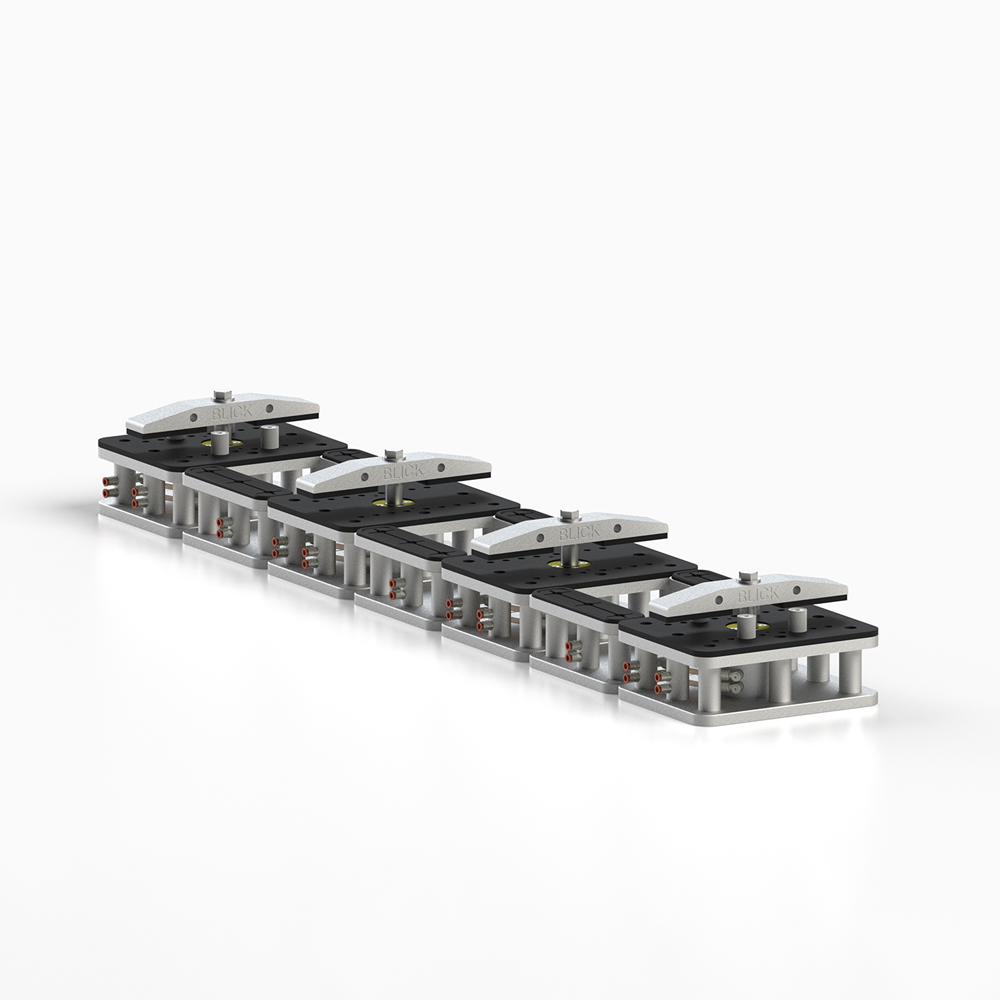

- Backsplash Clamp Systems consist of a series of alternating suction cups and pneumatic clamps. Various combinations of clamping units and suction cups can be used to accommodate workpieces of different lengths.
- Pneumatic Clamping Units can be actuated automatically by the air system of the CNC machine, or manually with an air switch
| Part Number | 13-104-01 | |
| Clamping Method | Pneumatic Cylinder | |
| Clamping Range | 1~6 cm (.39″~2.36″) | |
| PSI | 80 PSI | |
| Base Surface Area | 92 in2 | |
| Bottom Seal Part # | 12-240-10-11 | |
| Base Dimensions | 240 x 300 mm (9.45″ x 11.81″) | |
Overview & Instructions:
[3d-flip-book mode=”thumbnail-lightbox” urlparam=”fb3d-page” id=”19708″ title=”false” lightbox=”dark”]
Downloads
Backsplash Clamp
$1,100.00
Backsplash Clamps allow long narrow pieces, such as backsplashes, to be easily worked on a standard CNC machine.
