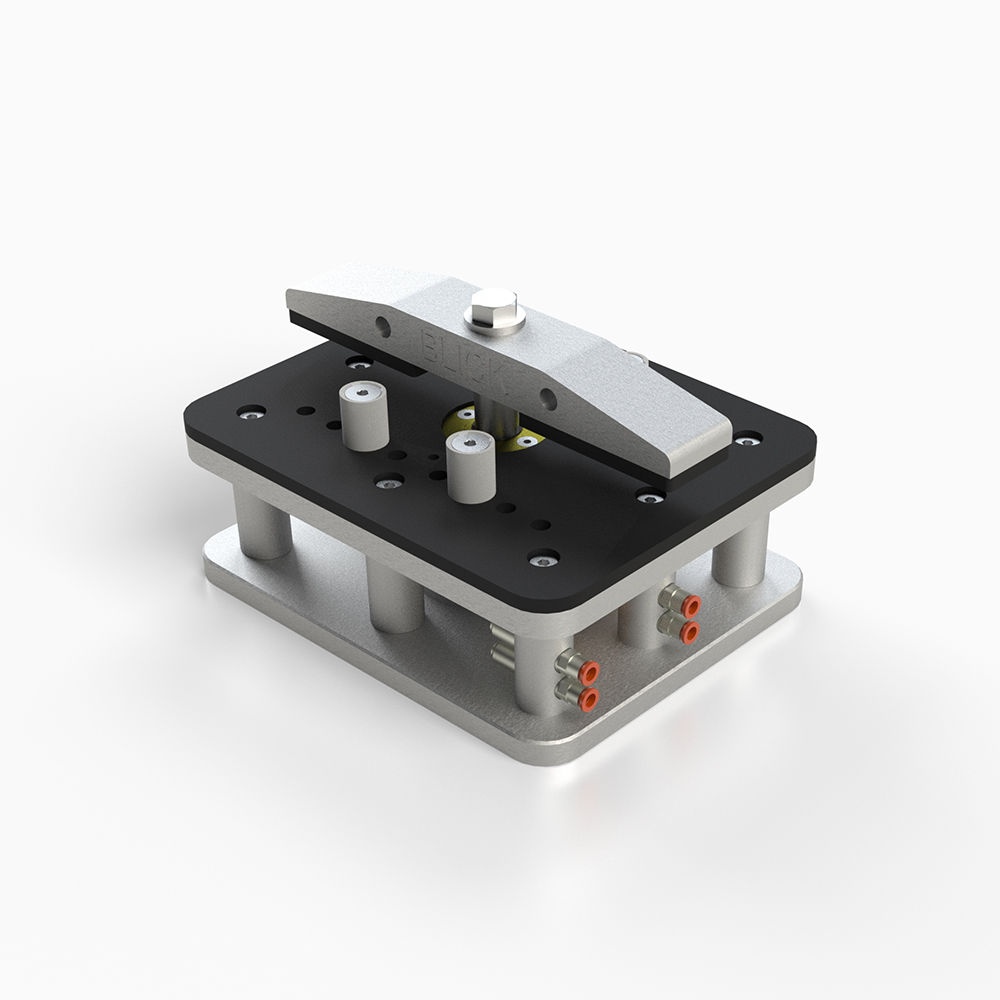

Backsplash Clamp Systems

$3,326.25$4,508.50

Perfect for profiling backsplashes, thresholds, stair treads, and wall caps.

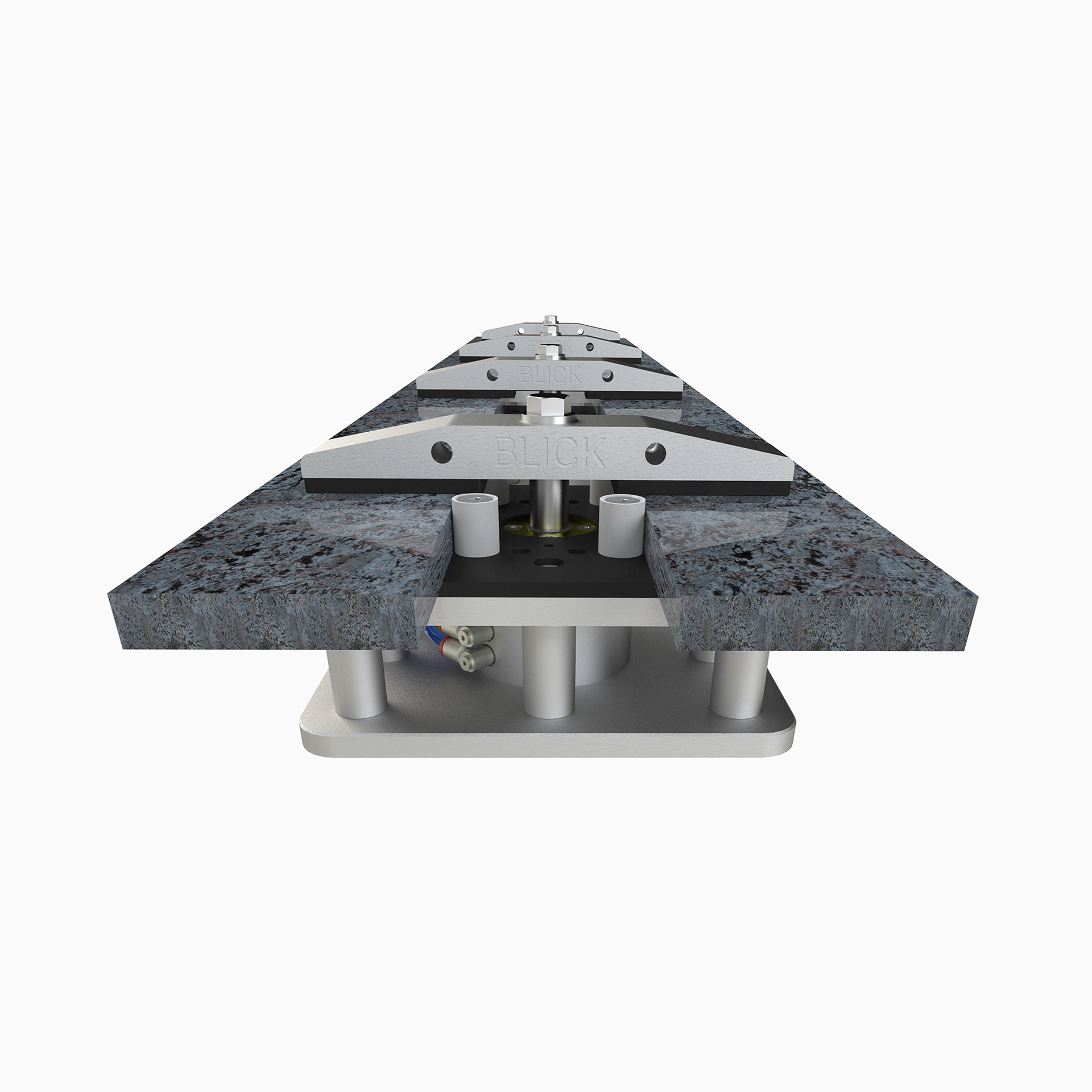

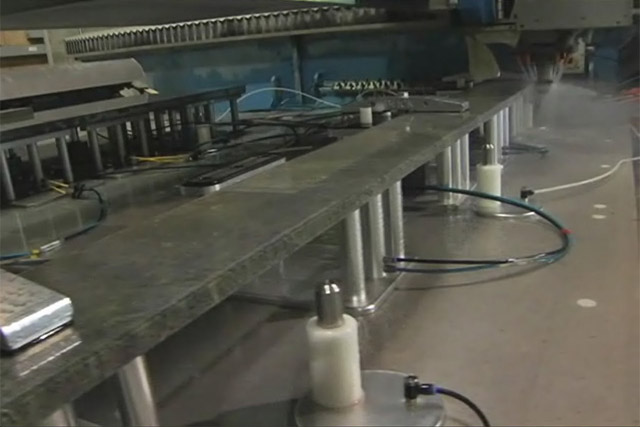

The Backsplash Clamp Systems were developed to allow long narrow pieces such as backsplashes, stair treads, and wall caps to be easily worked on any standard CNC Machine.

  • Solid rubber vulcanized friction pads promote superior holding
  • Each pneumatic clamp provides up to 700-lbs. of clamping force
  • Easily adjustable for different widths
  • The width of each cup and each clamp is roughly 9.5″

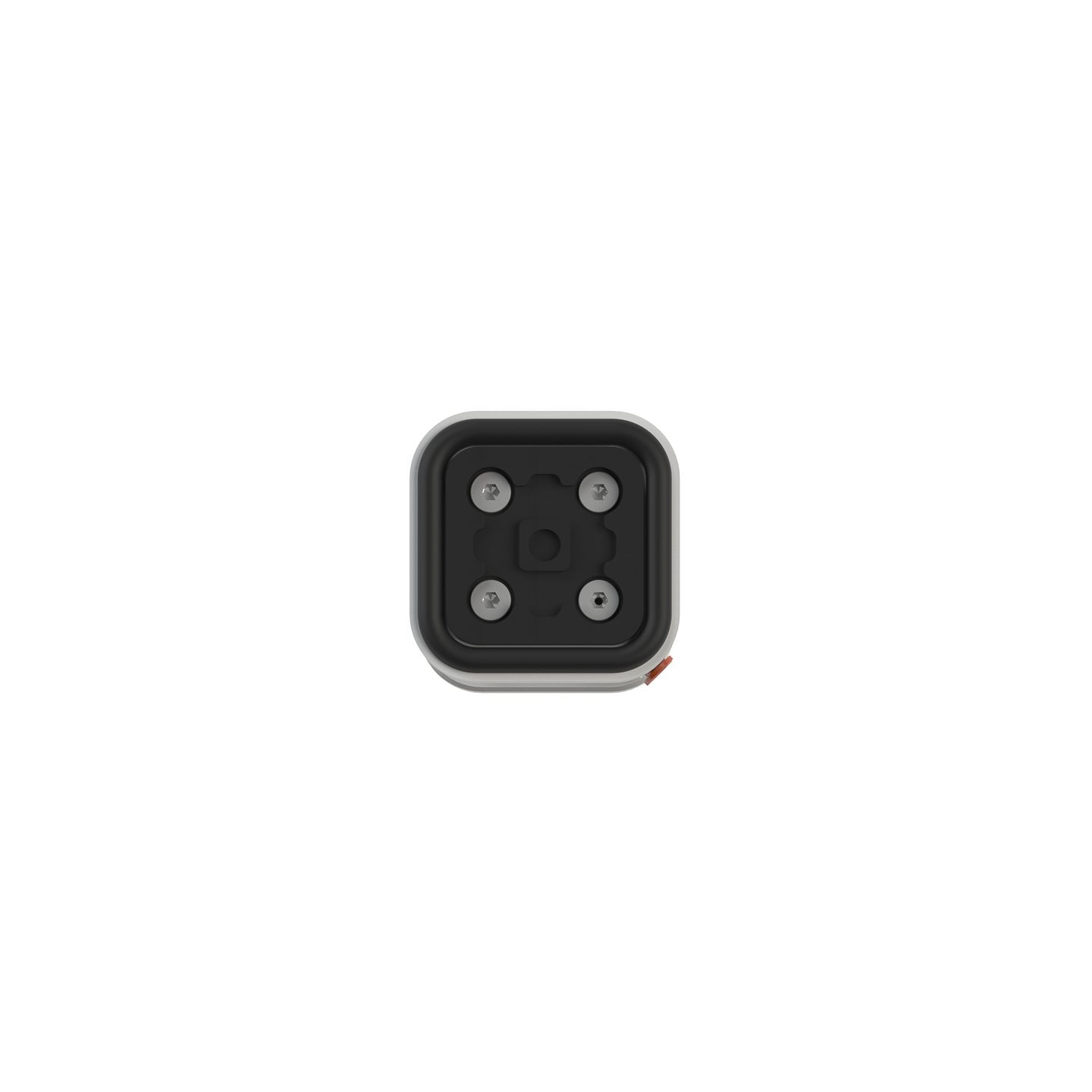

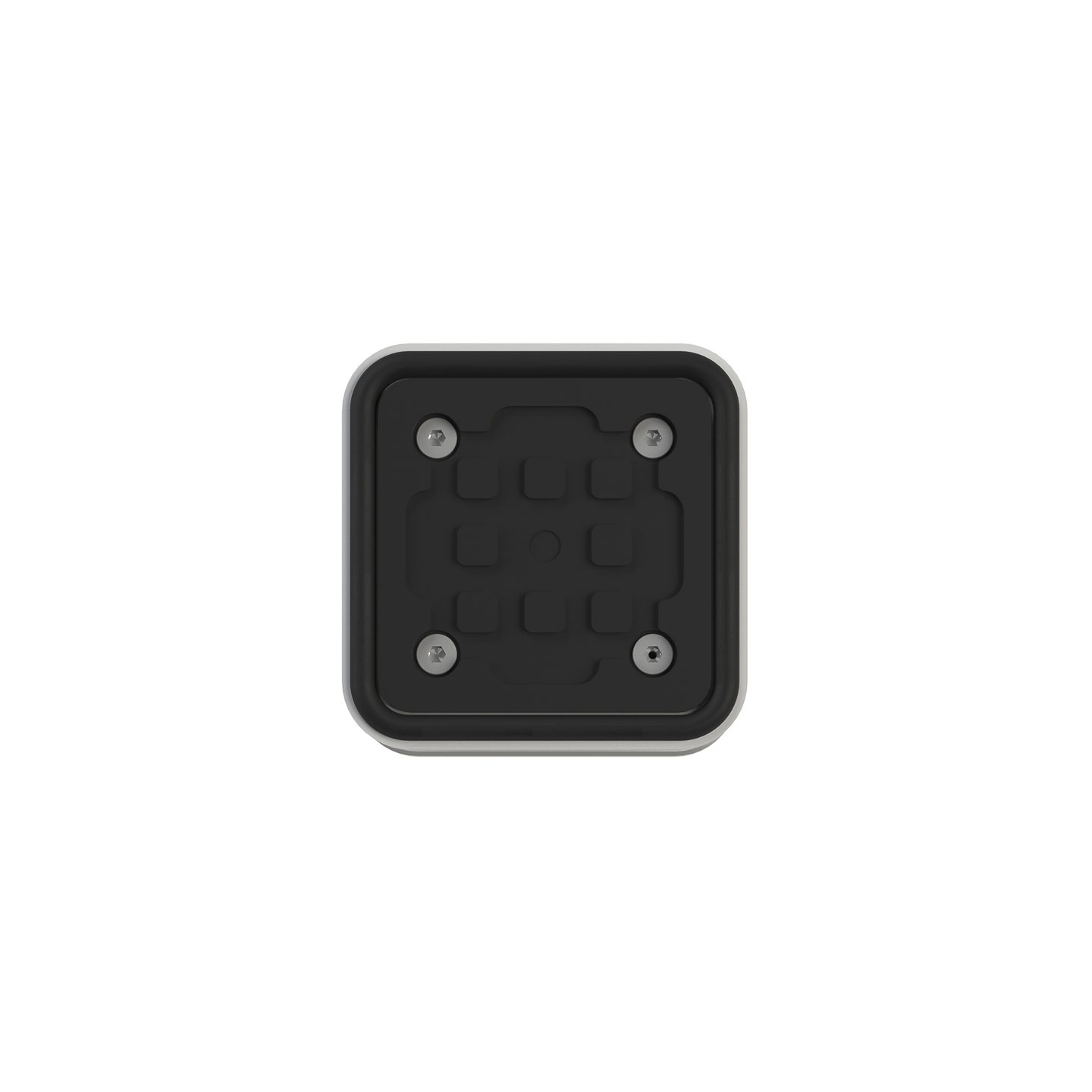

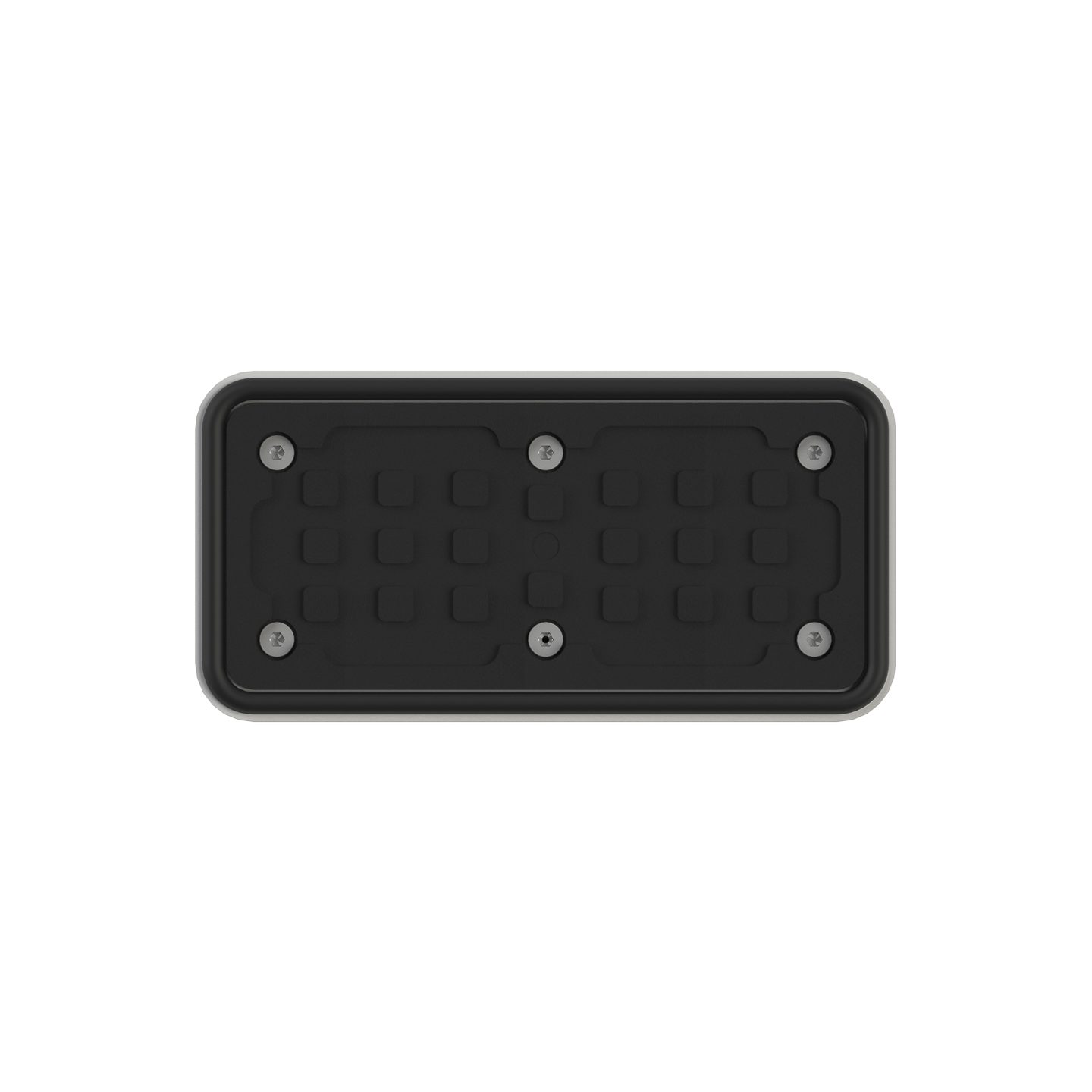

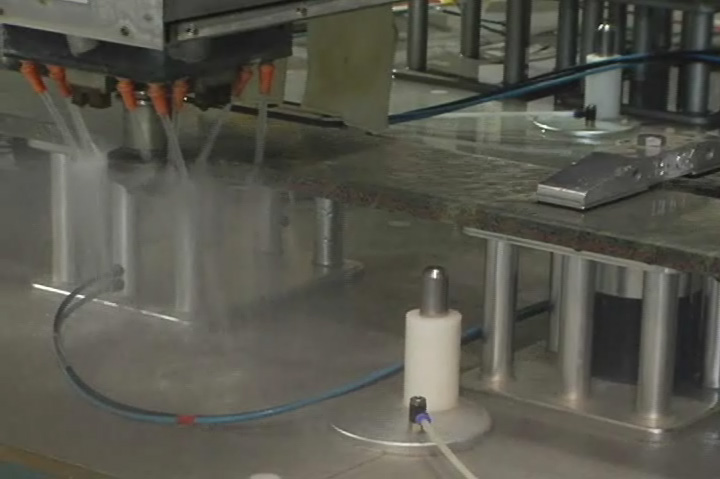

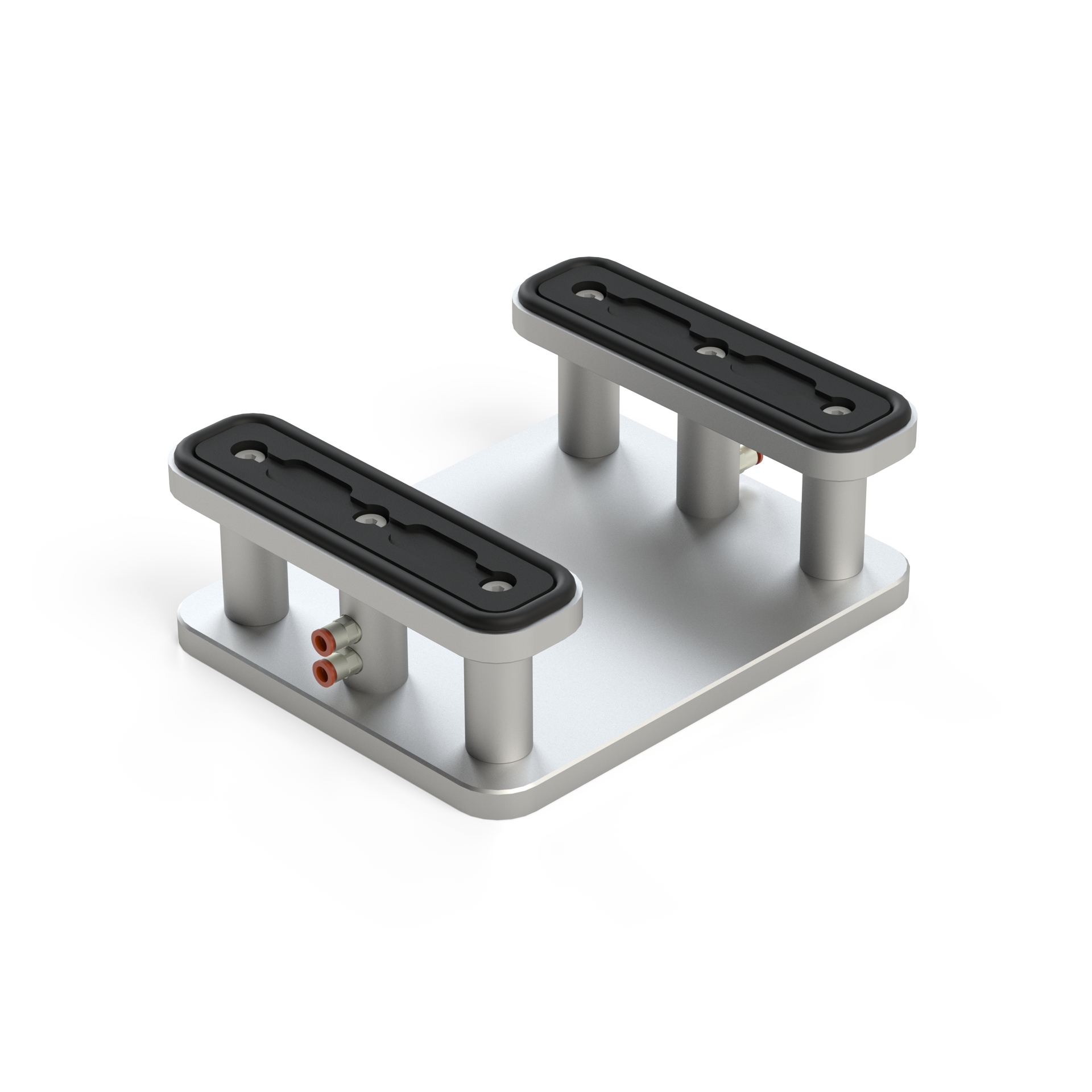

  • Clamping units provide the necessary downward pressure to securely hold the work while suction cups support the work between clamps and prevent vibration

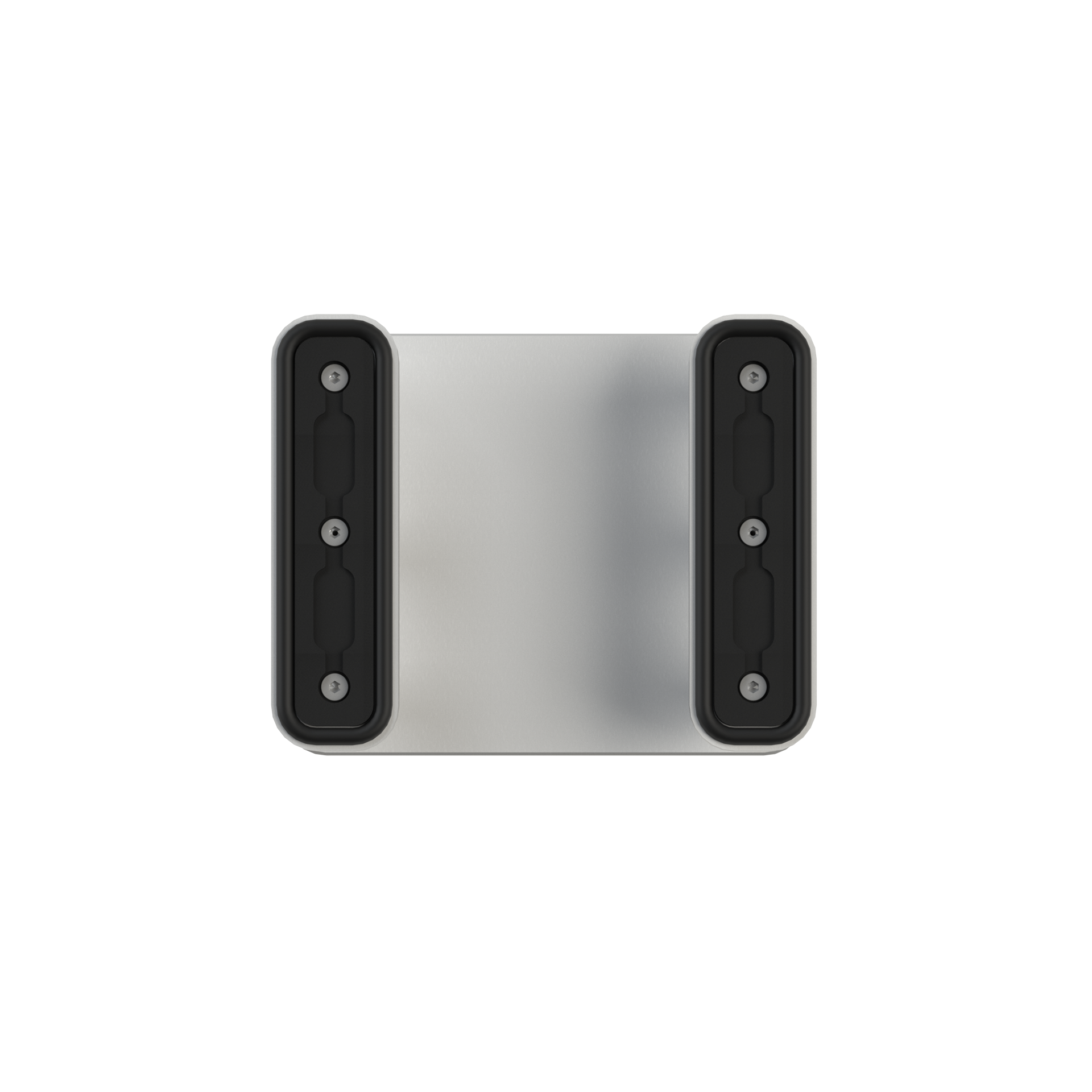

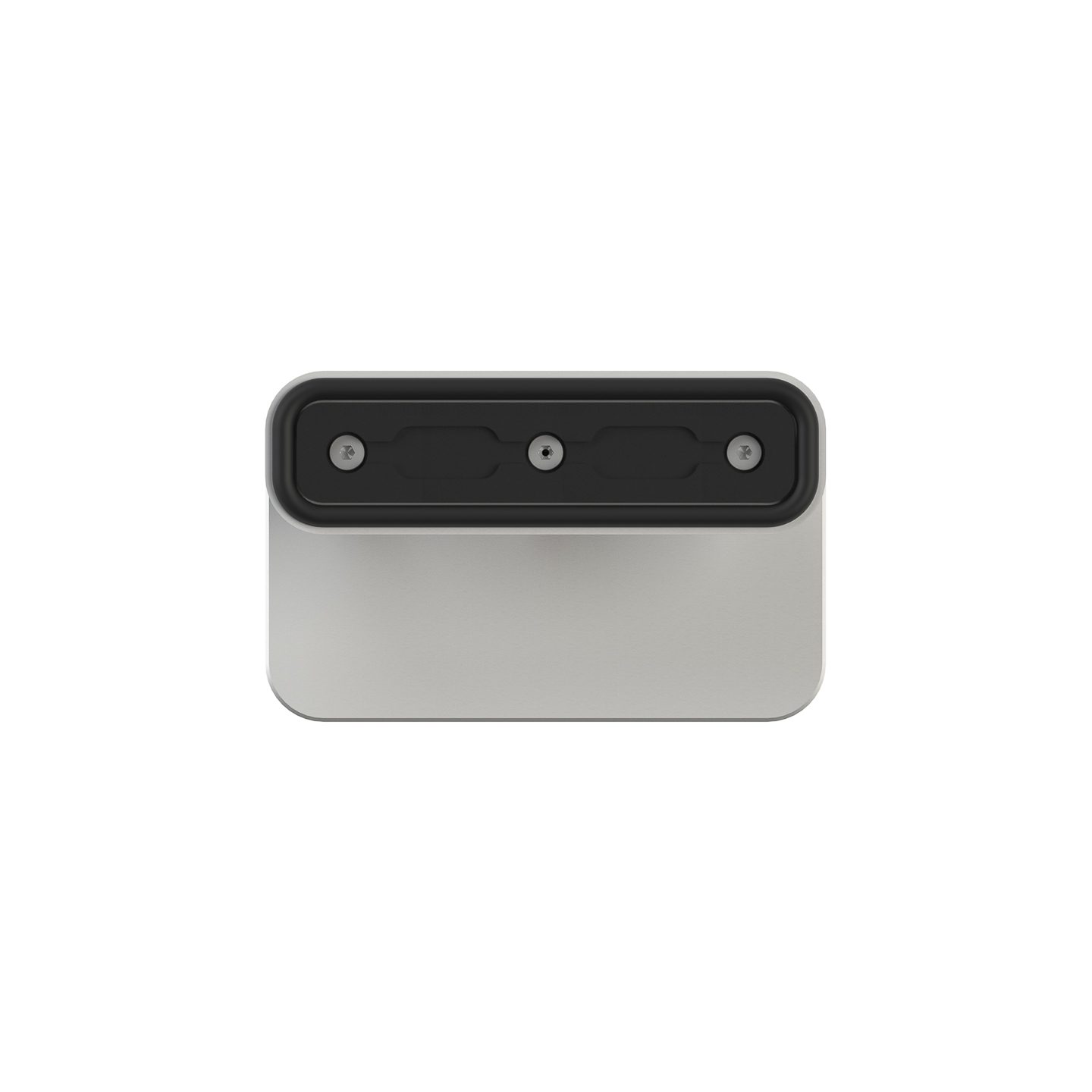

  • Systems consist of a series of alternating suction cups and pneumatic clamps. Various combinations of clamping units and suction cups can be used to accommodate workpieces of different lengths.

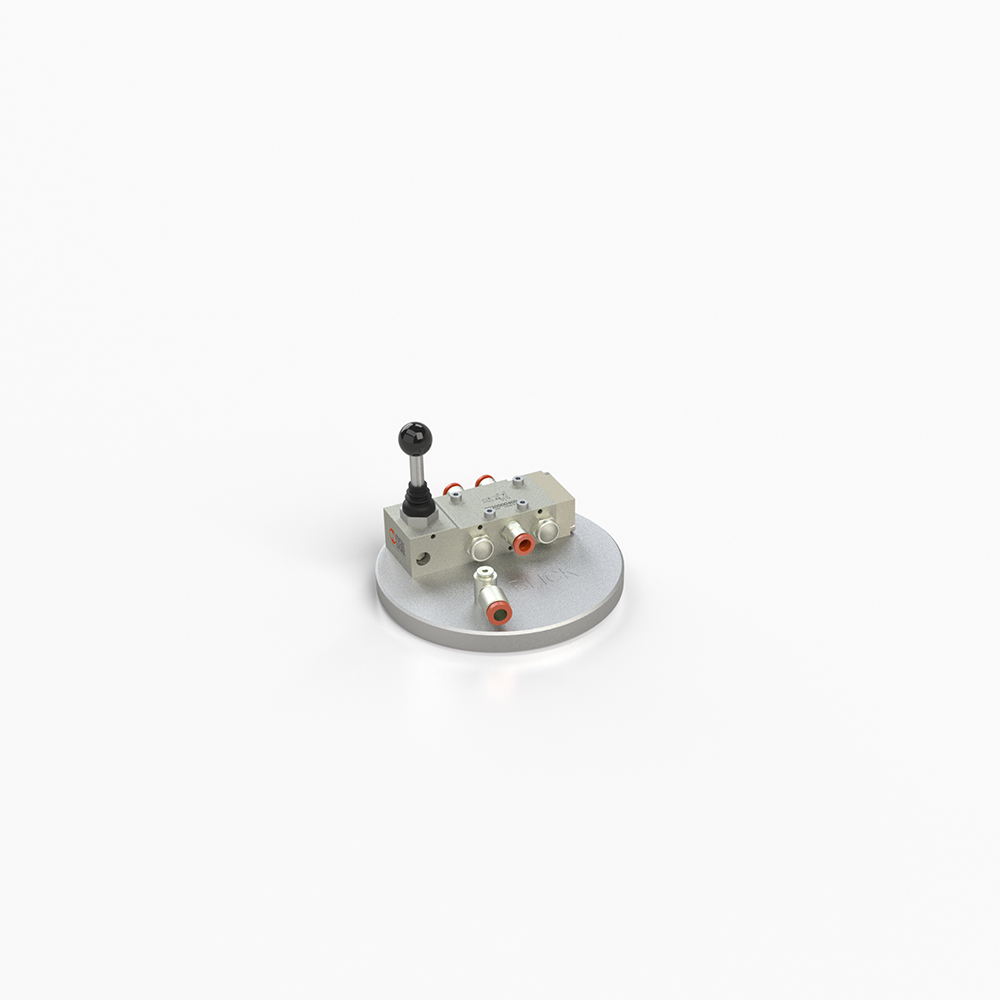

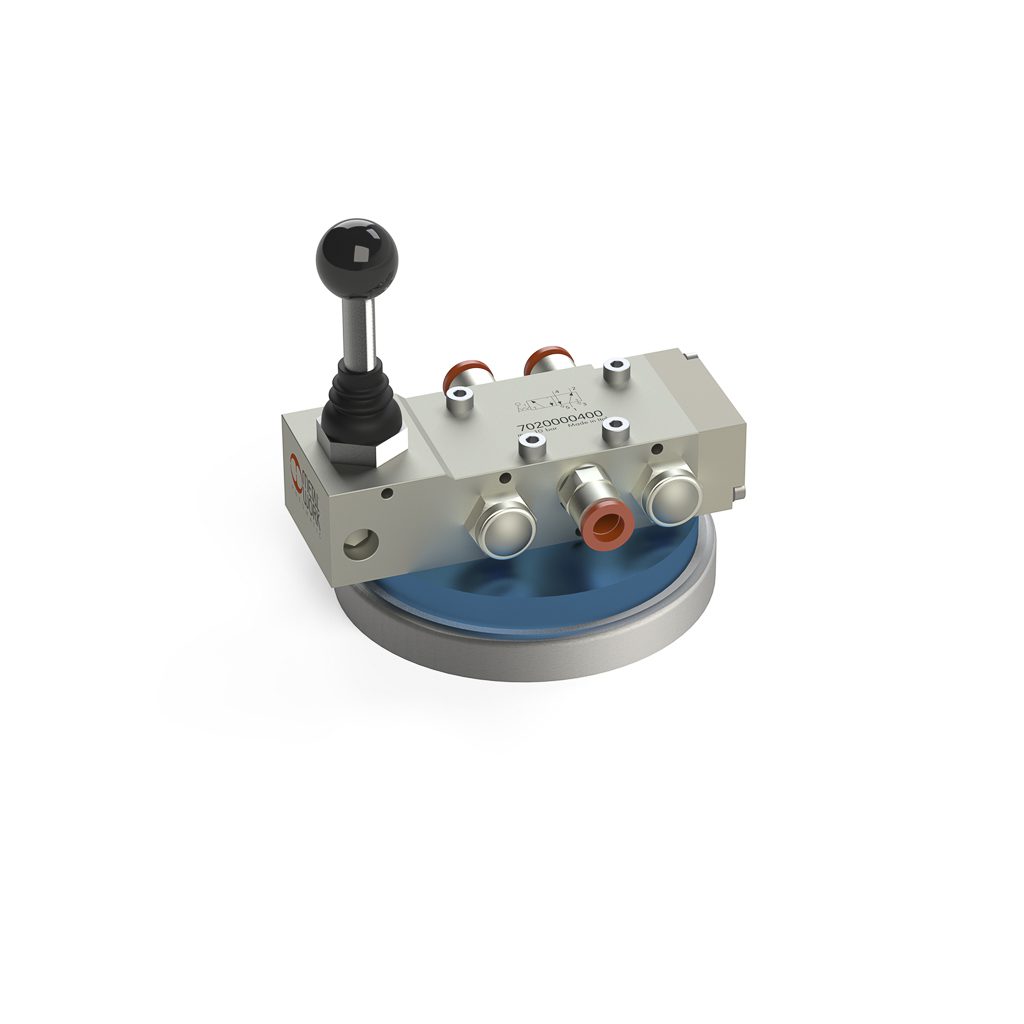

  • Pneumatic Clamping Units can be actuated automatically by the air system of the CNC machine, or manually with an air switch
Description Part Number
Standard System 30-BIBS43
Mini System 30-BIBS32

Overview & Instructions:


How to Measure Fittings & Suction Cup Heights
