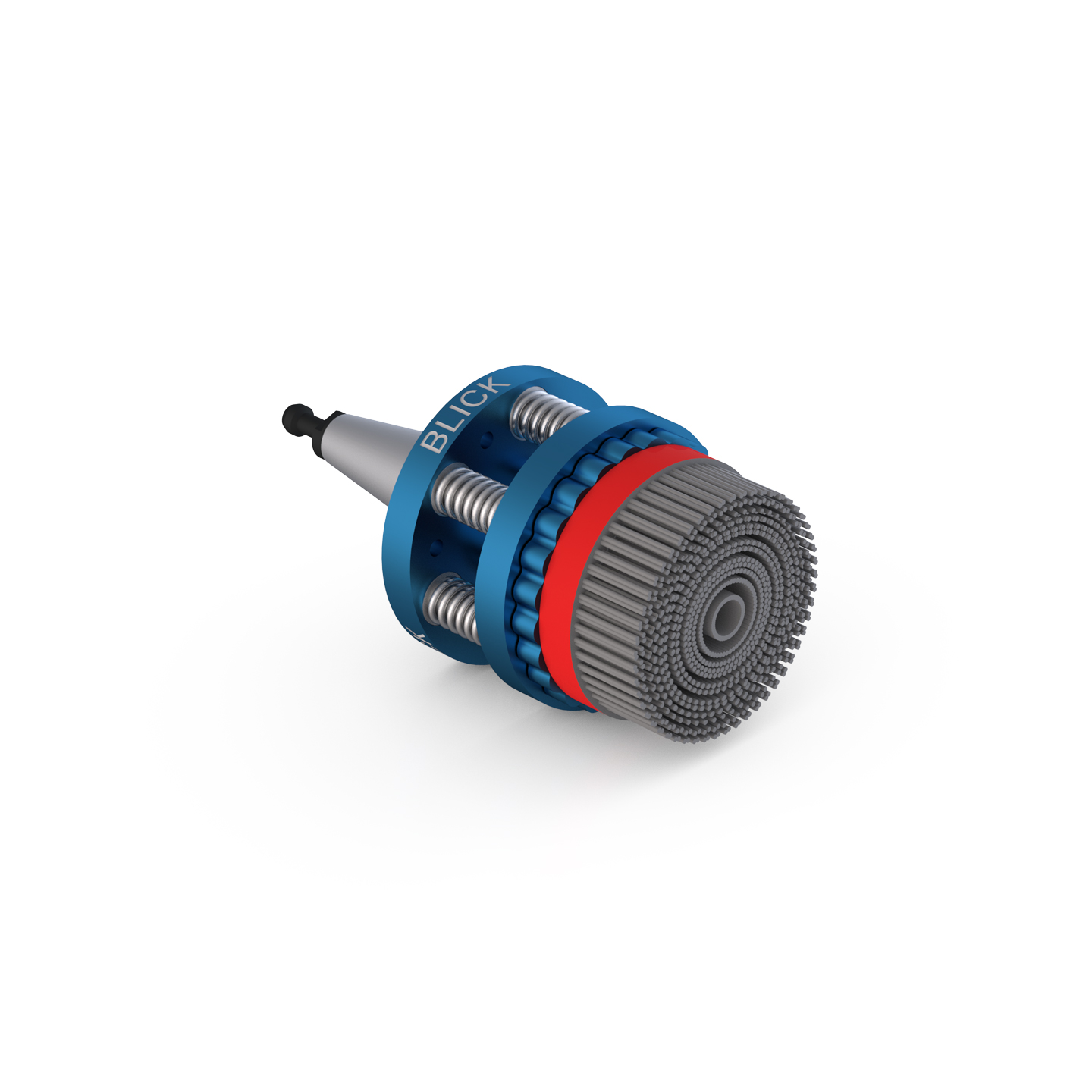

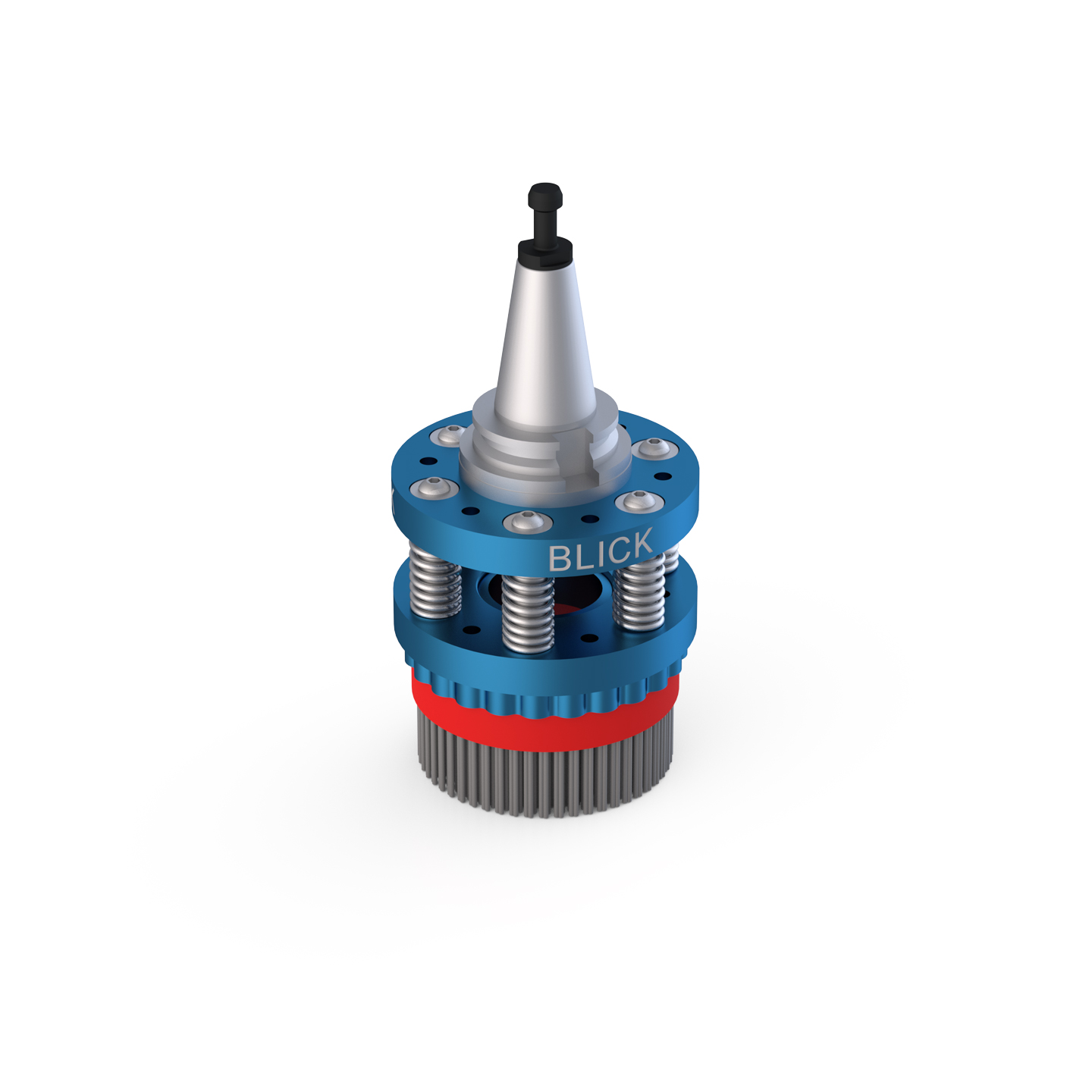

The Leatherhead Mini adapts to any 35 mm conic tool holder.
- Accepts Frankfurt-style brushes or 4”, 5”, and 6” snail lock brushes.
- Use on belt-driven or electro-spindle machines.
Included with Leatherhead Mini:
- 4″ Snail Lock Adaptor (x1)
- 5″ Snail Lock Adaptor (x1)
| Part Number | 14-500-04 |
| Tool Diameter | 140 mm (5.5″) |
| Tool Weight | ~4 lbs. |
| Overall Length | 67 mm (2.625″) |

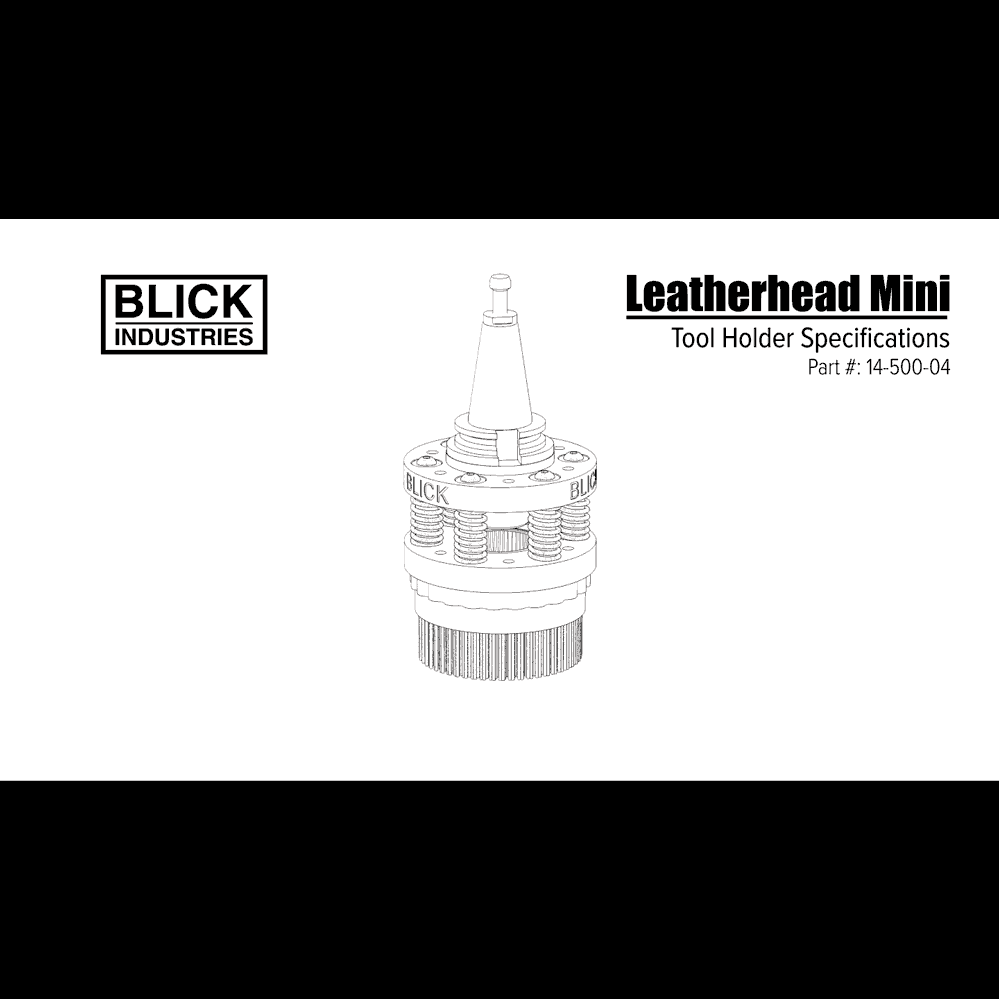

| Adaptor Type | 35 mm Conic Tool Holder
(Park machine operators – READ HERE)  |
| Spindle Speed | 3000 RPM MAX
(refer to the brush manufacturer’s ideal RPM before setting spindle speed) |
| Feed | Start at 250 inches/minute (6350 mm per minute) |
NOTES:
- Do not use with Left-handed 1/2″ Gas Adaptor
- Do NOT subject the tool to more than 1/8″ of compression.
- Dimensions and weights are for the tool only and do not include the spacers, brushes, or tool holders.
- Brushes are not included with Leatherhead Mini.
- Customers are to specify through-bolt sizes (M10 or M12)
How to clean your table with a Leatherhead Mini
The Leatherhead & Leatherhead Mini
Misc.
FAQ
| Category | Question |
|---|---|
| Suction Cups | Q: What length should I cut my Top Seals? A: For the cut lengths for both your Top and Bottom Seals, see the link here for instructions on how to replace your seal. There you will find a chart to reference the cut lengths. |
| Location Devices | Q: Can Locating Pins be used as fences? A: No, Locating Pins can not be used as fences. They are not designed to withstand any significant amount of force. See the link here to see our line of Vacuum Fences |
| Fittings | Q: How do I properly remove tubing? A: Push in the collar of the fitting until it clicks, then pull out the tubing. Pulling out the tubing without pushing down the collar will damage the fitting. |
| Tools & Accessories: Vacuum Systems | Q: I have a vacuum leak. How do I find it? A: To locate a leak in your system, use the Isolator Kit to quickly and efficiently find where problem is, see the link here for instructions on how to pinpoint your leak and how to set things right. |
| Services & Repairs | Q: Do you guys do repairs? A: Yes, we do. Go to the link here to see how to get your BLICK tools fixed. |
| Services & Repairs | Q: I have "ghosting" on my piece, how do I prevent this? A: Here's how; see the link here |
Downloads
Leatherhead Mini
$950.00
