Designed for CMS (Brembanna) machines with an operating height of 200 mm.
- Made to the same specifications as the reference pins that come with your machine.
- Compatible with BLICK INDUSTRIES Stop Locator Tool
| Part Number | 11-601-01 |
| Stop Disc Diameter | 35 mm, 60 mm, 200 mm |
| Table Reference Pin Diameter | 12 mm |
| Height in Down Position | 170 mm (6.7″) |
| Height in Up Position | 223 mm (8.8″) |
| Machine Height* | 200 mm (7.87″) |
| Base Surface Area | 41 in² |
| Pounds per Square Inch (PSI) | 80 PSI |
| Base Dimensions | 200 mm (7.87″) |
| Bottom Seal Part # | 11-601-01-13 |
NOTE:
- Available in 6 mm and 8 mm air-fitting configurations
- *Only available for machines with a 200 mm working height
- Requires EasyStone Installation (Complimentary installation is offered on all BLICK Products, call or email to schedule an installation.)
Downloads

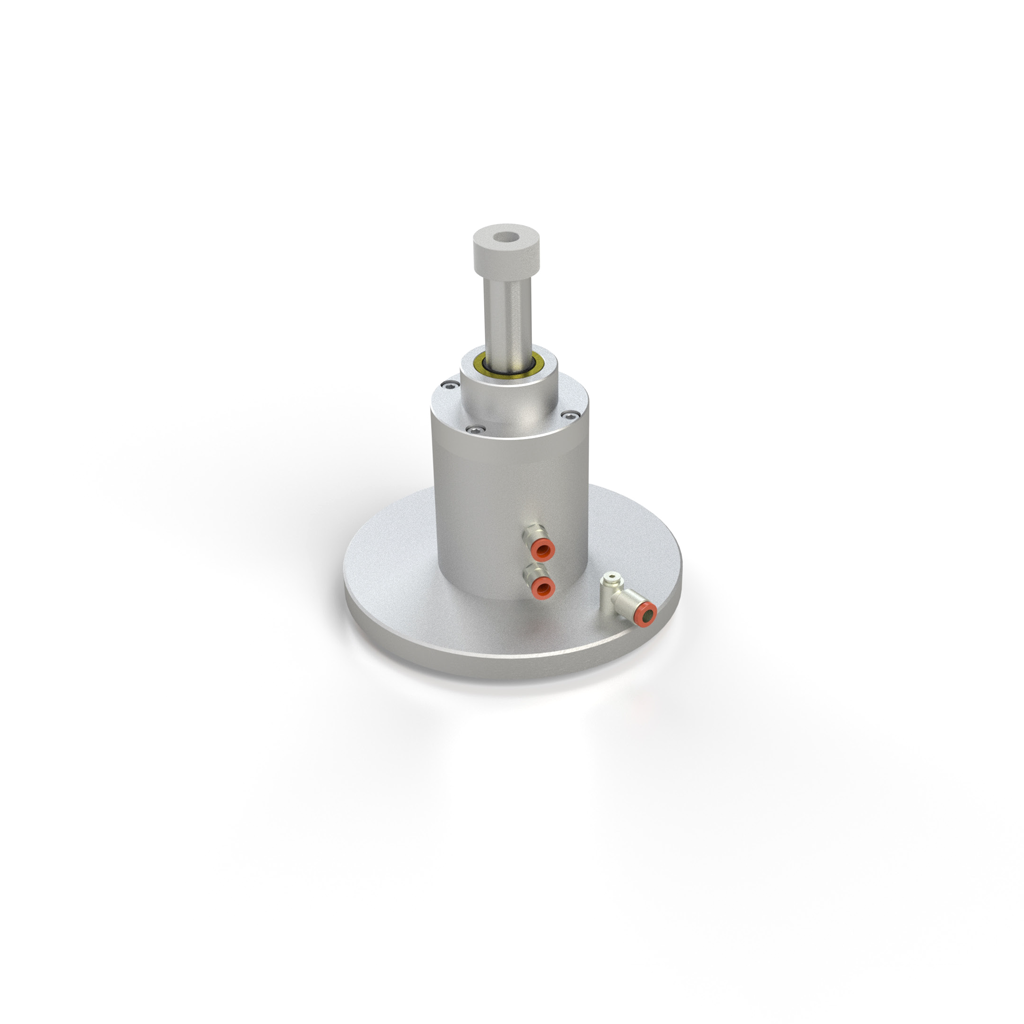

CMS (Brembanna) Pneumatic Reference Pin
Price range: $445.00 through $565.00
