Use with both vacuums and air pressure.
- Corrosion-resistant stainless steel and brass construction.
| Part Number | 56-15C18BTF |
| Dial Diameter | 1.5″ |
| Pressure Range Shown | 0-30 in of Hg, 0-100 psi |
| Connector Size | 1/8″ NPT Male |
| Mount Location | Bottom |
How to Zero Liquid-Filled Gauges
-
- Locate the vent hole on the gauge. It is usually a small hole with a rubber stopper or a brass pin.
- Insert a fingernail or a small screwdriver into the vent hole and apply pressure*. This will release the pressure in the gauge and the pointer will return to zero.
- If the gauge has a brass pin, you may need to pull the pin out to release the pressure.
- Once the pressure is released, the pointer should return to zero. If it does not, you may need to repeat the steps above.
*NOTE: Be careful when pushing on the stopper; it has the potential to fall into the gauge, and will be difficult to remove.
FAQ
| Category | Question |
|---|---|
| Suction Cups | Q: What length should I cut my Top Seals? A: For the cut lengths for both your Top and Bottom Seals, see the link here for instructions on how to replace your seal. There you will find a chart to reference the cut lengths. |
| Location Devices | Q: Can Locating Pins be used as fences? A: No, Locating Pins can not be used as fences. They are not designed to withstand any significant amount of force. See the link here to see our line of Vacuum Fences |
| Fittings | Q: How do I properly remove tubing? A: Push in the collar of the fitting until it clicks, then pull out the tubing. Pulling out the tubing without pushing down the collar will damage the fitting. |
| Tools & Accessories: Vacuum Systems | Q: I have a vacuum leak. How do I find it? A: To locate a leak in your system, use the Isolator Kit to quickly and efficiently find where problem is, see the link here for instructions on how to pinpoint your leak and how to set things right. |
| Services & Repairs | Q: Do you guys do repairs? A: Yes, we do. Go to the link here to see how to get your BLICK tools fixed. |
| Services & Repairs | Q: I have "ghosting" on my piece, how do I prevent this? A: Here's how; see the link here |
Downloads

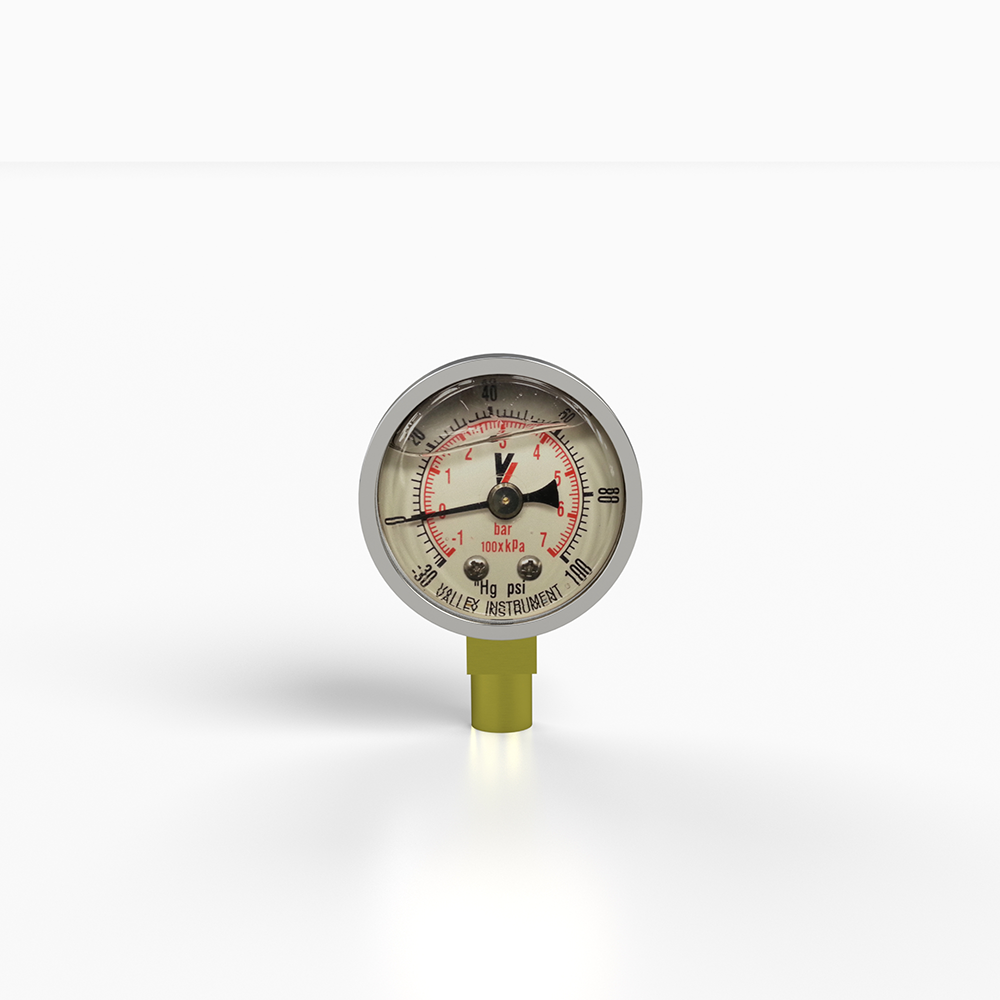

1.5″ Compound Oil Filled Gauge – Bottom Mount
$35.00
Replacement gauge for the 8 Pair Portable Manifold, and the 16 Pair Universal Manifold with gauges.
