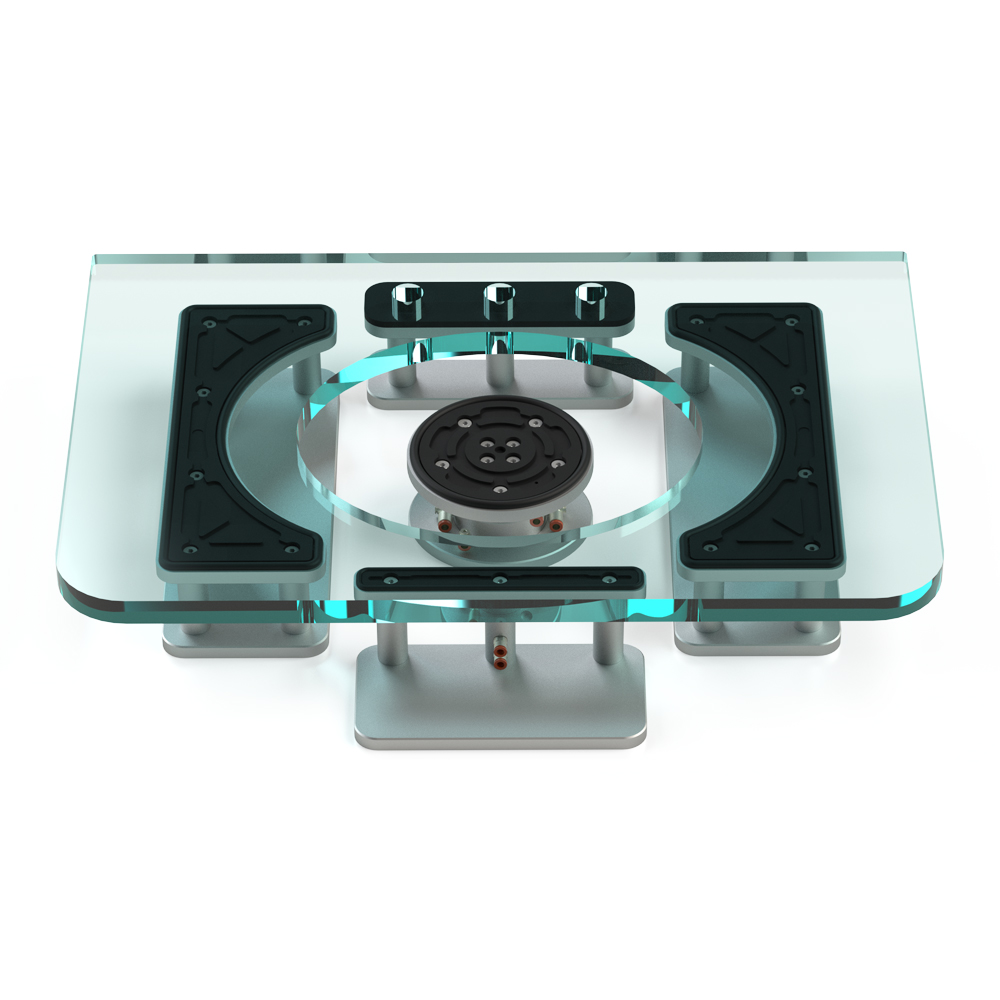

The Vanity Sink Suction Cup Kits are designed around the industry’s most popular sinks (Kohler 2209, 2210, 2211).

  • Symmetrical design allows the Vanity Sink Cups to be used on both sides of the sink bowl.

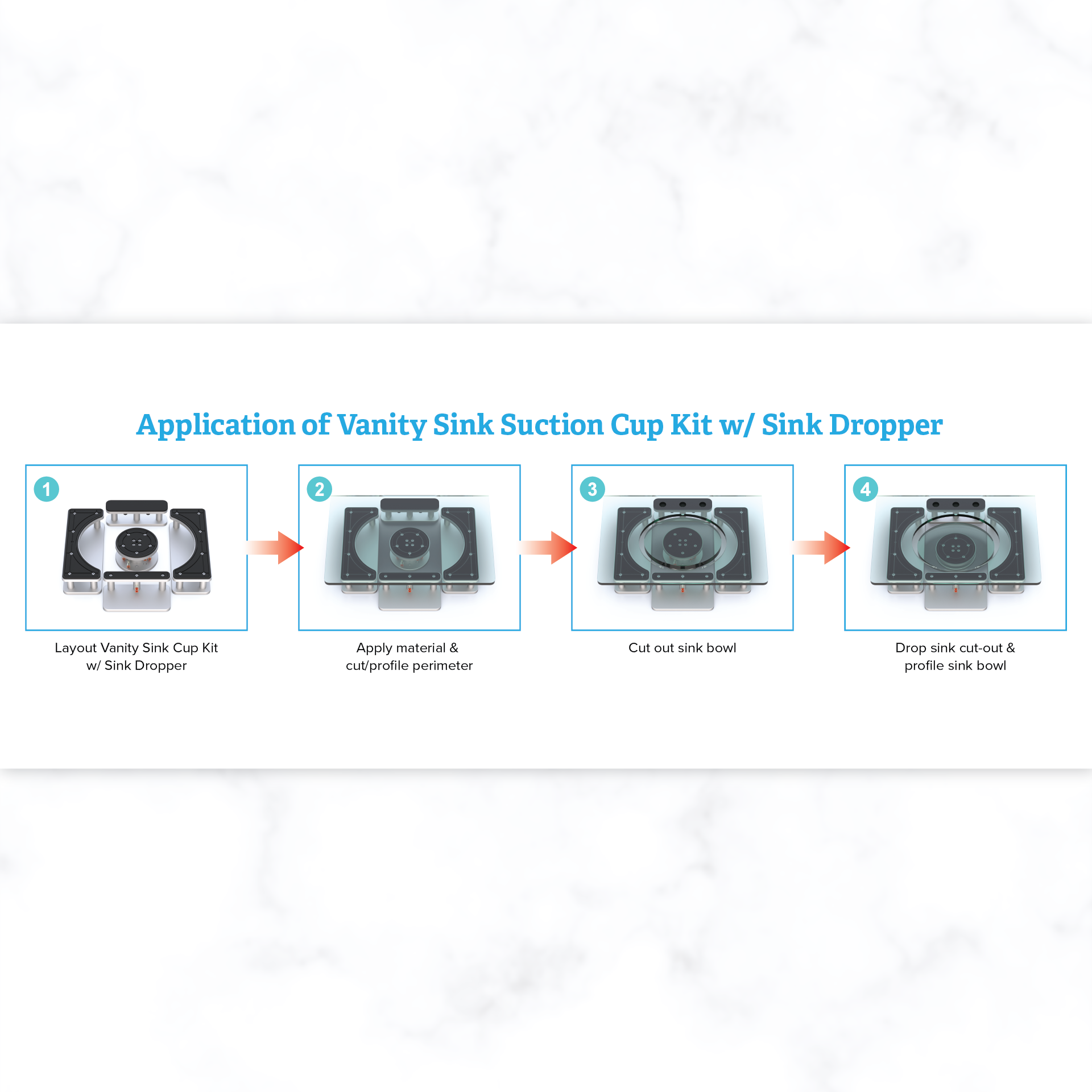

NOTE: Sink Droppers (Retractable Cups) are only available in 105 mm, 150 mm, and 200 mm heights.

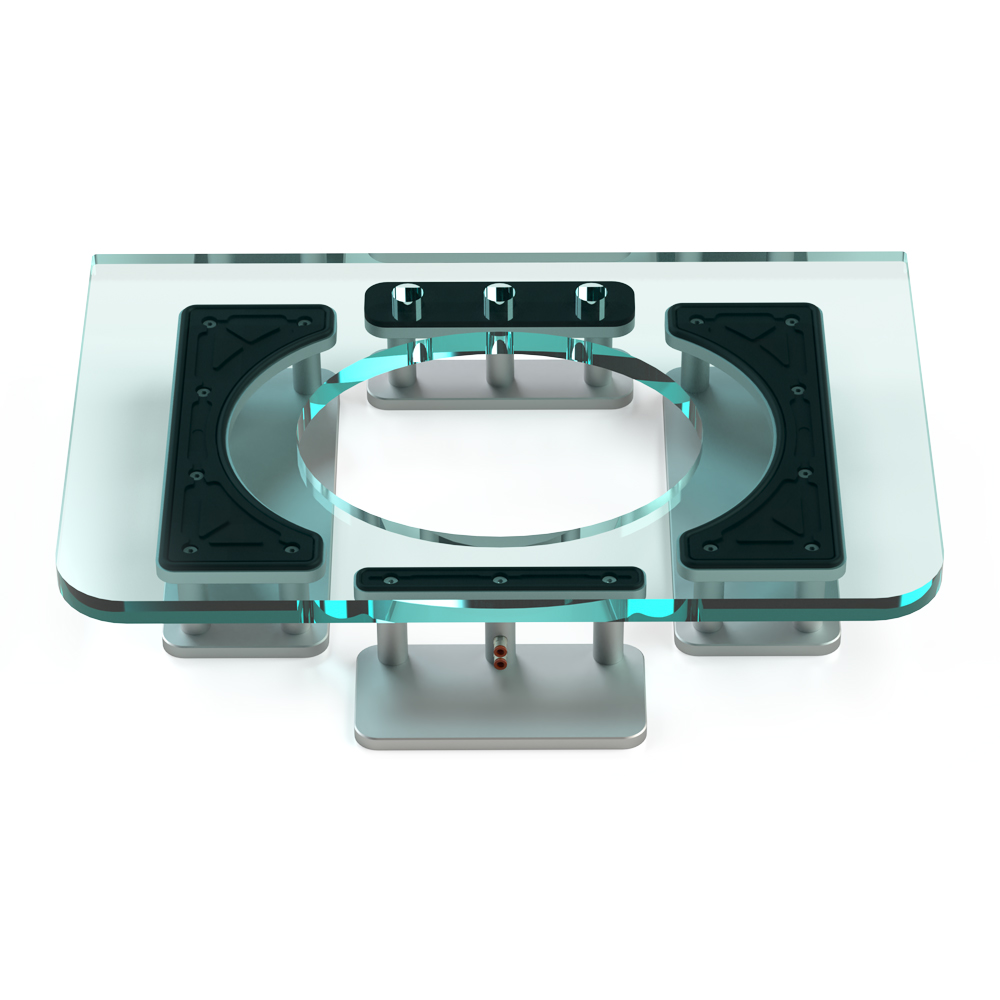

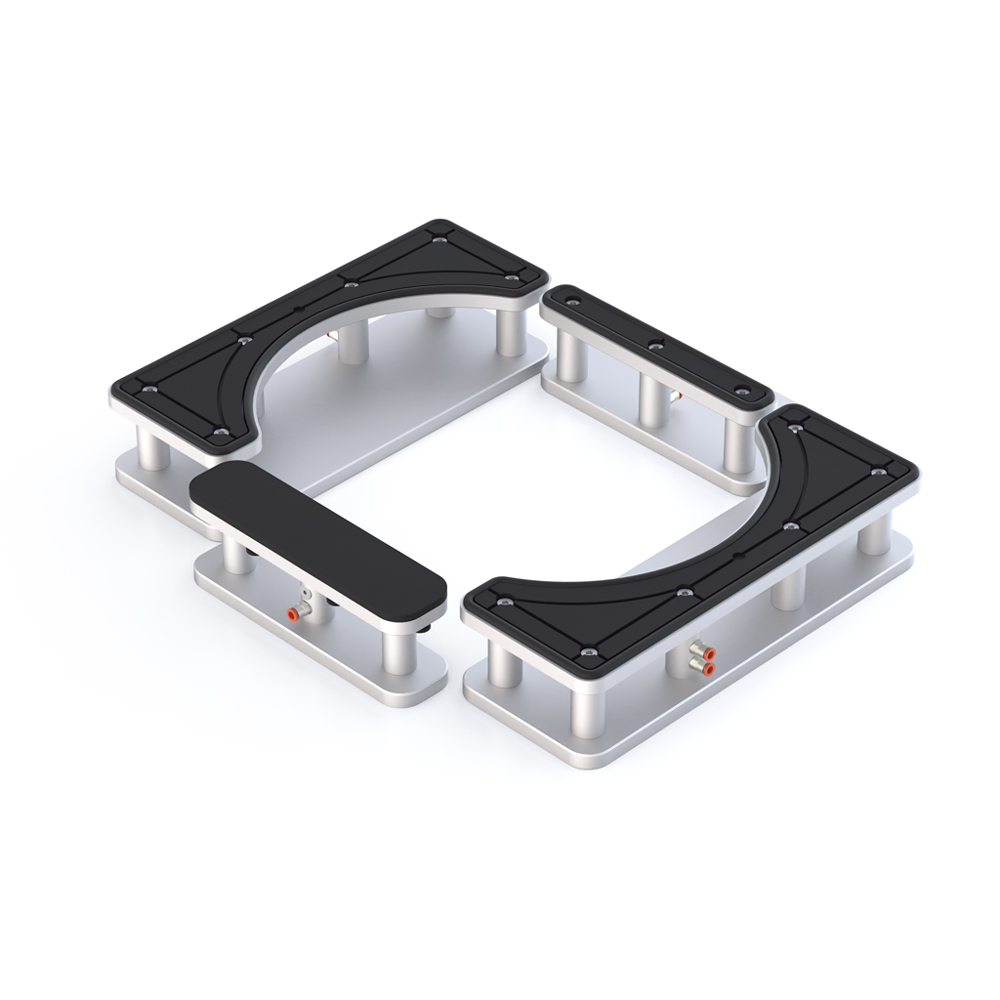

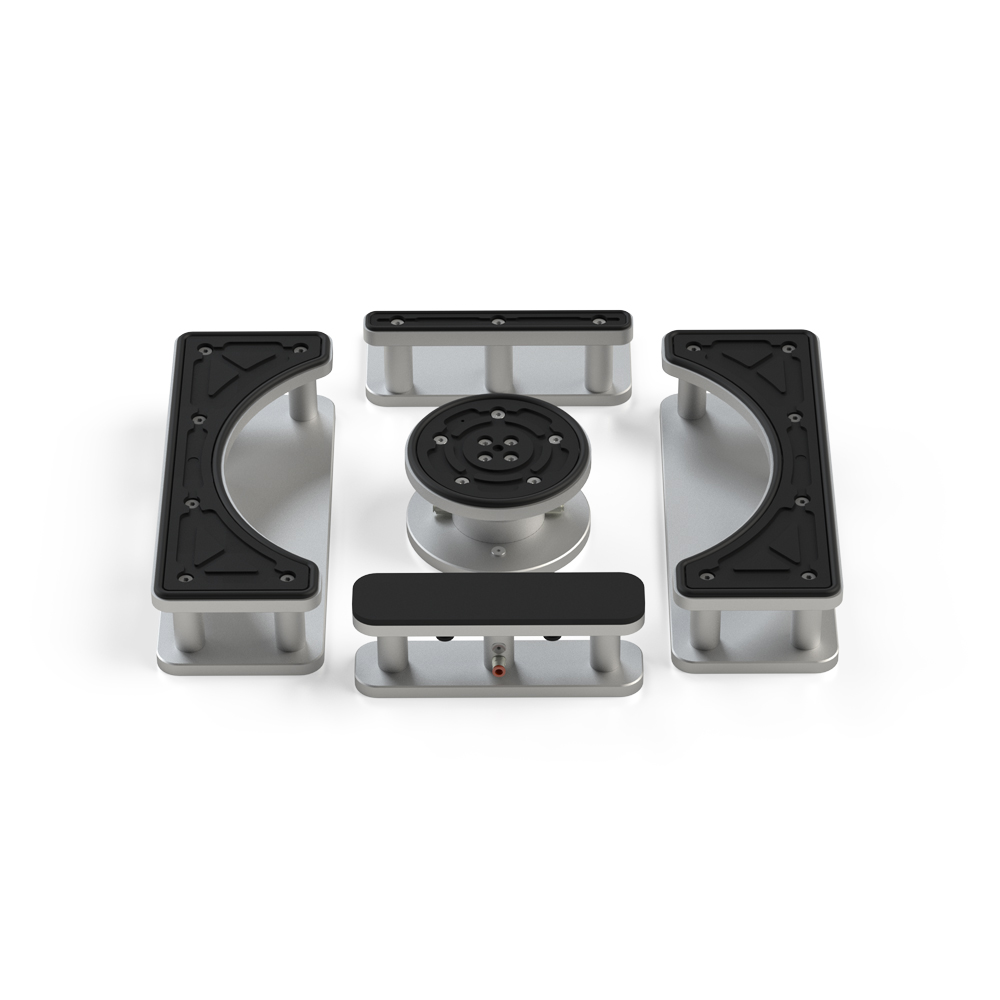

Standard Kit
(30-BIVanKit)

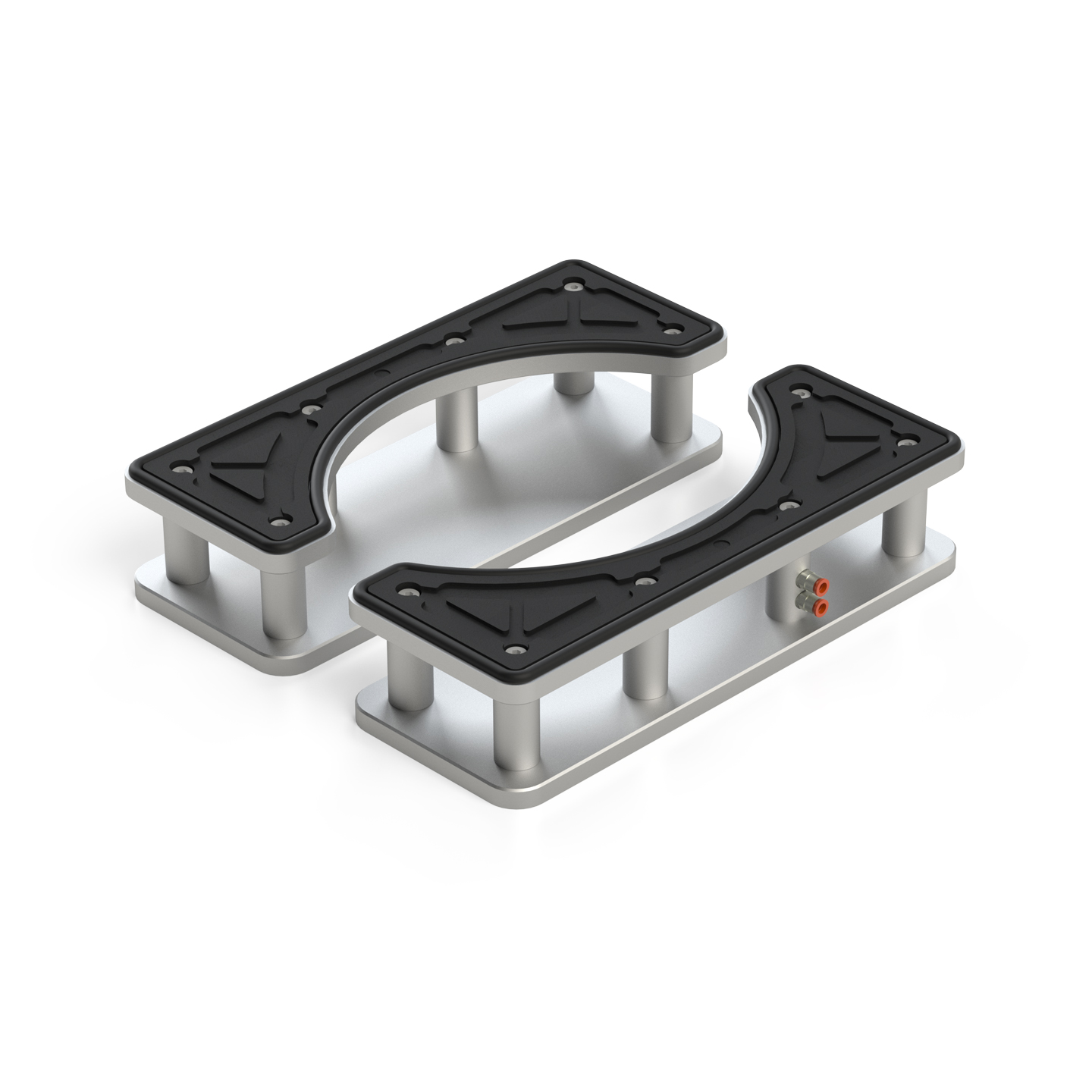

• Vanity Cups (x2)

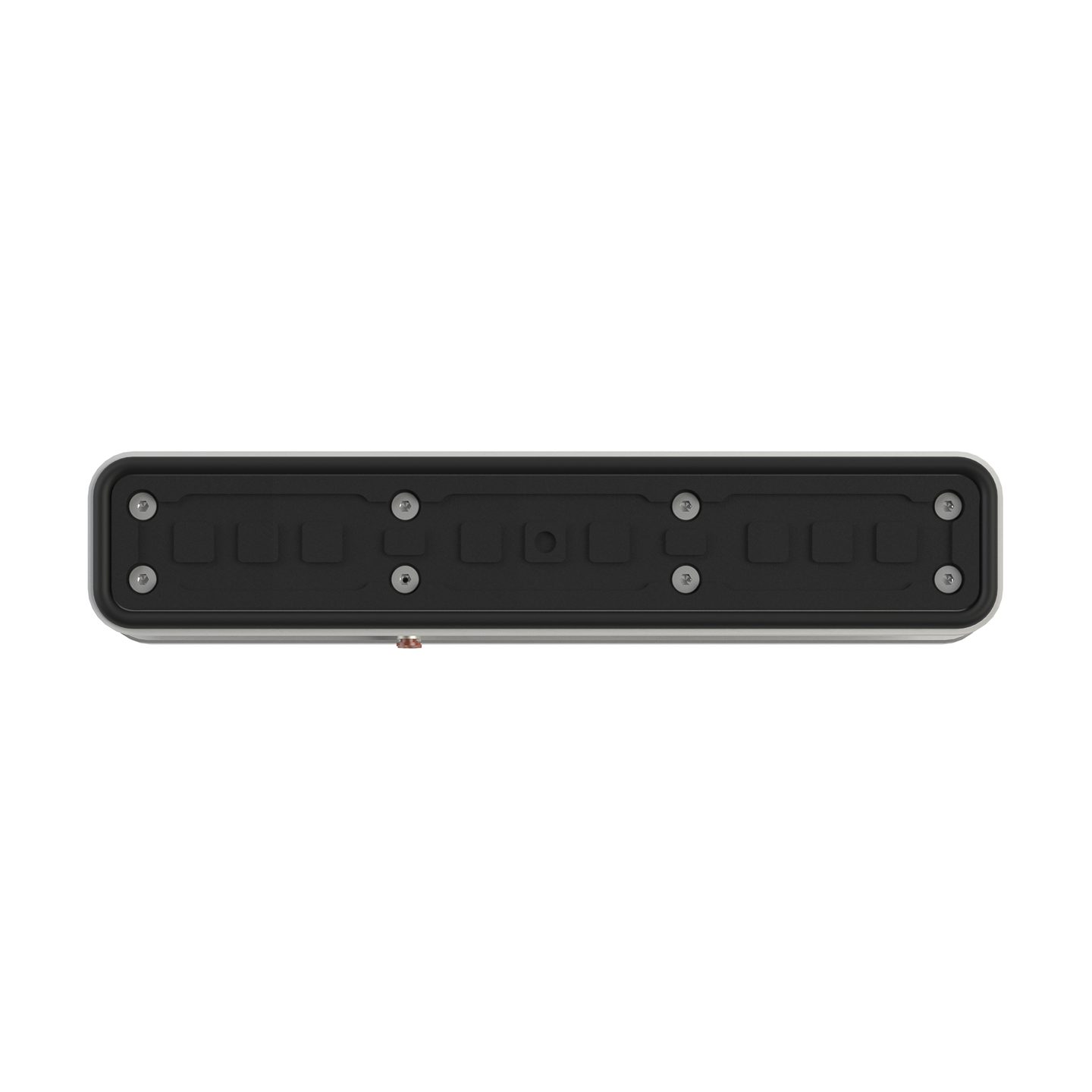

• 40 x 150 x 300 mm Cup

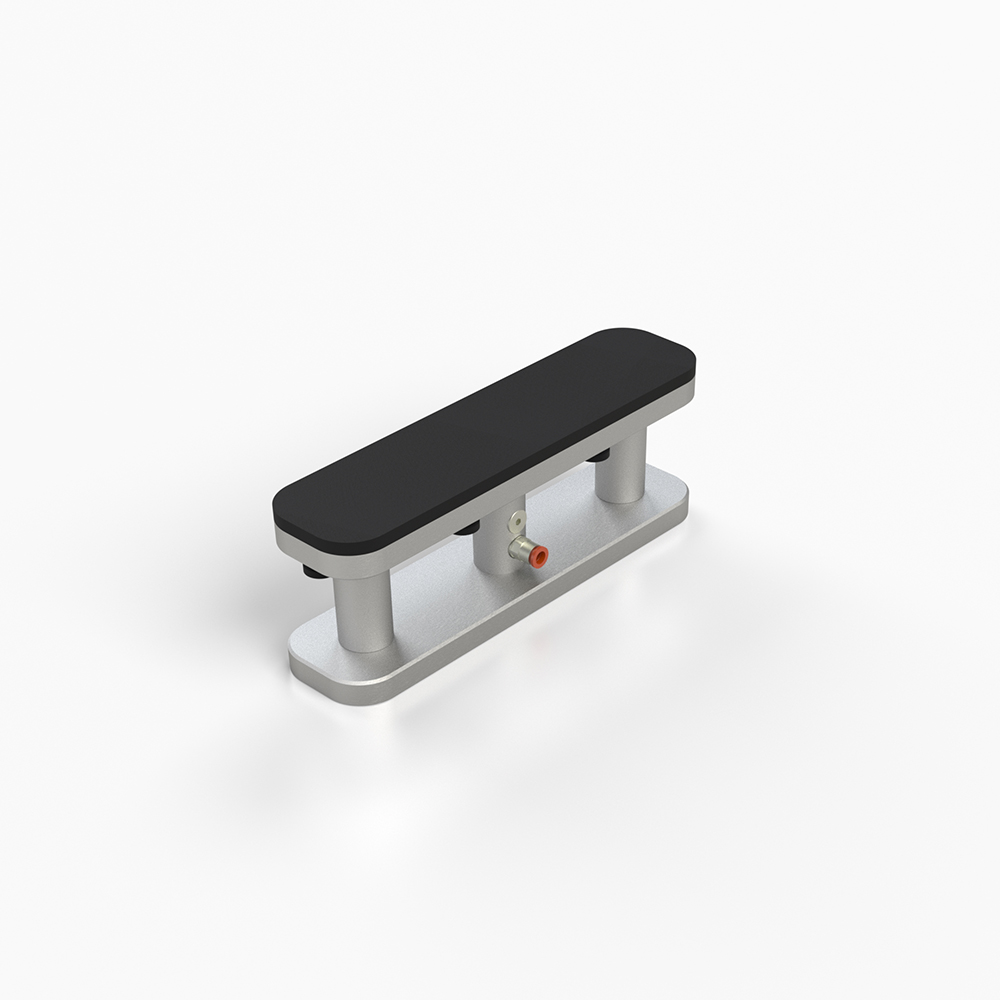

• 75 x 300 mm Core Drill Support
105 mm Height

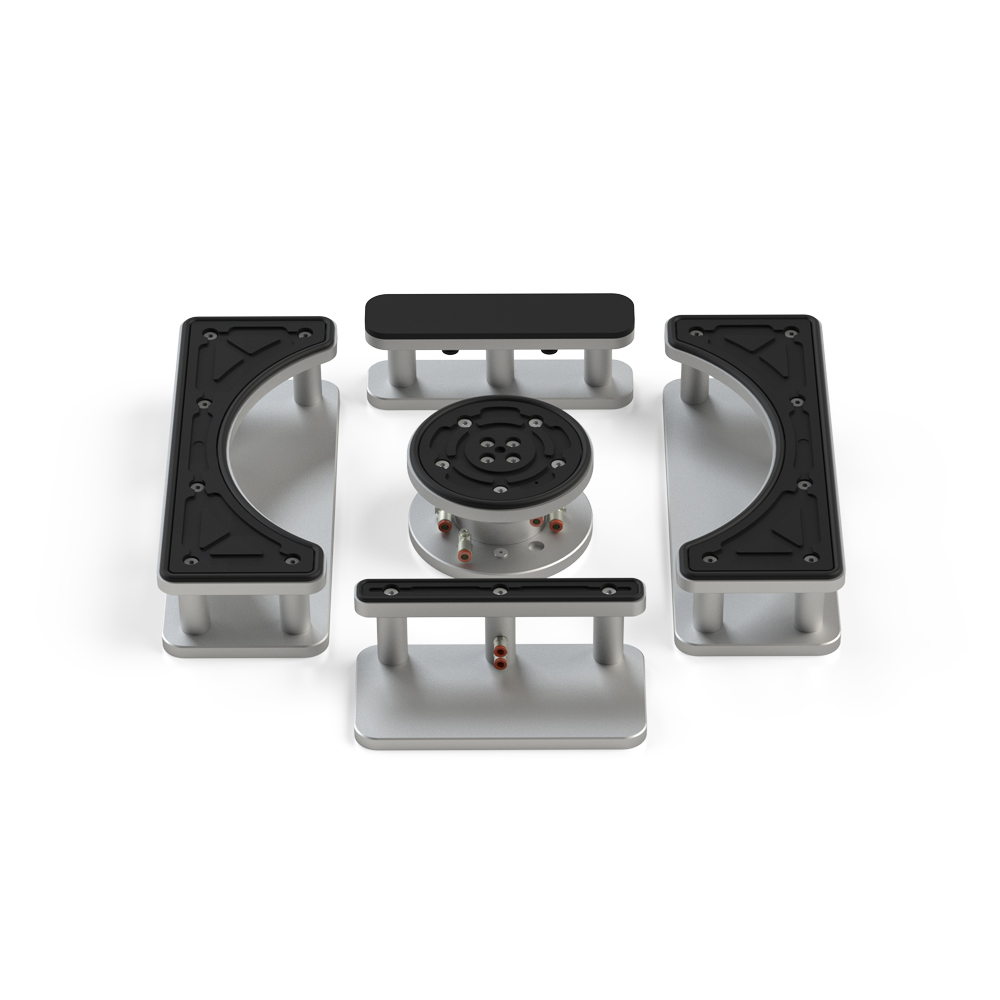

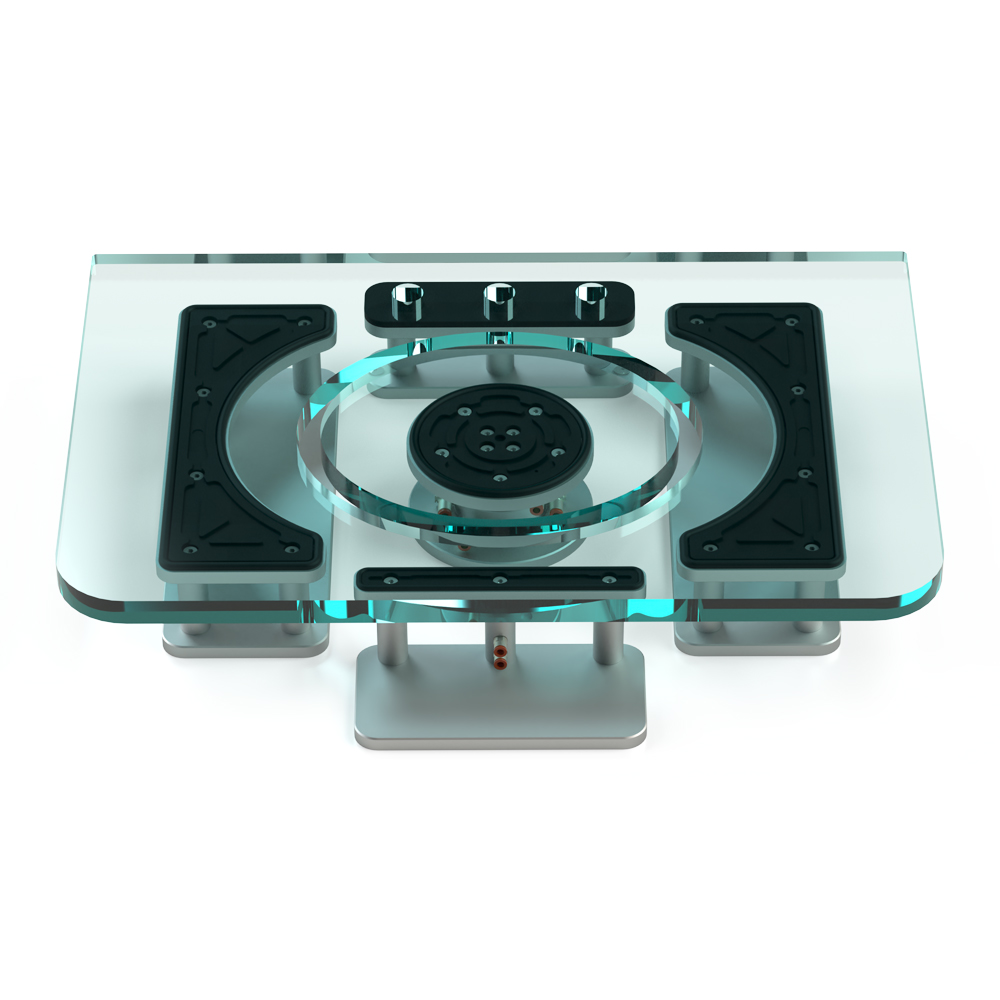

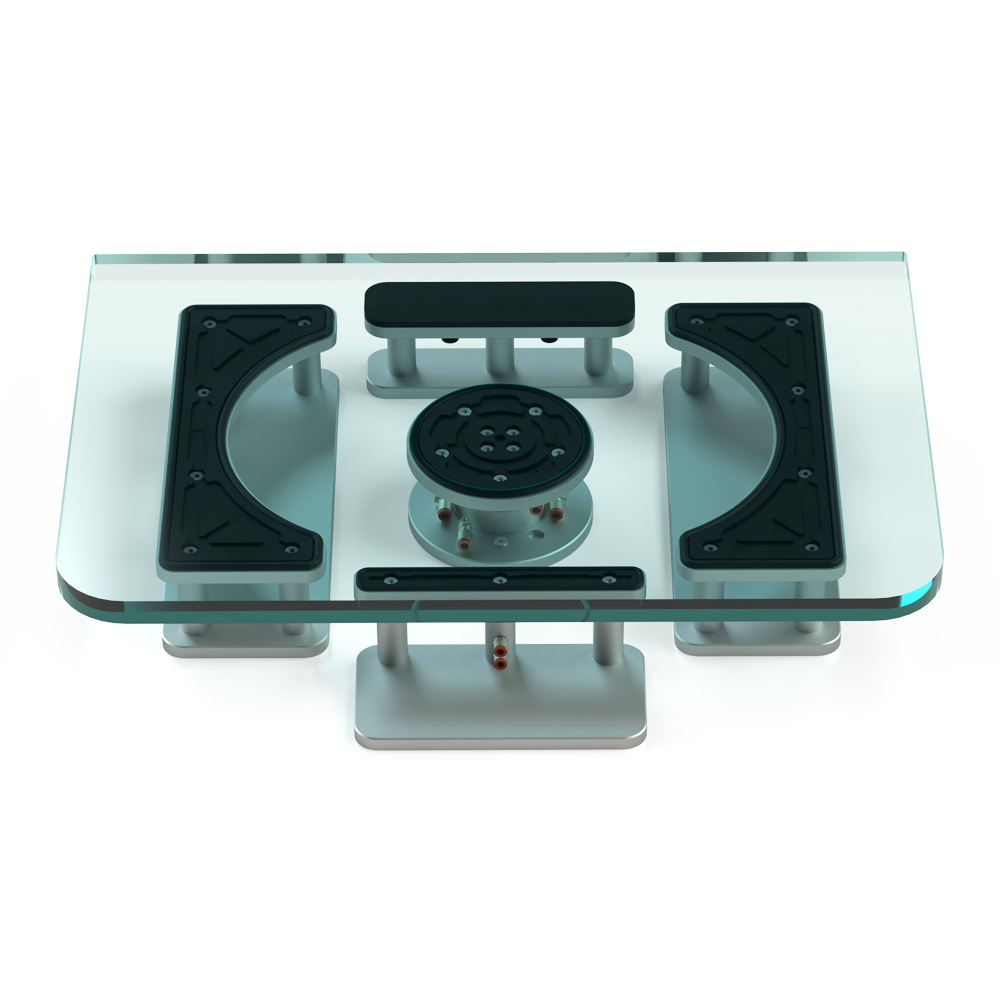

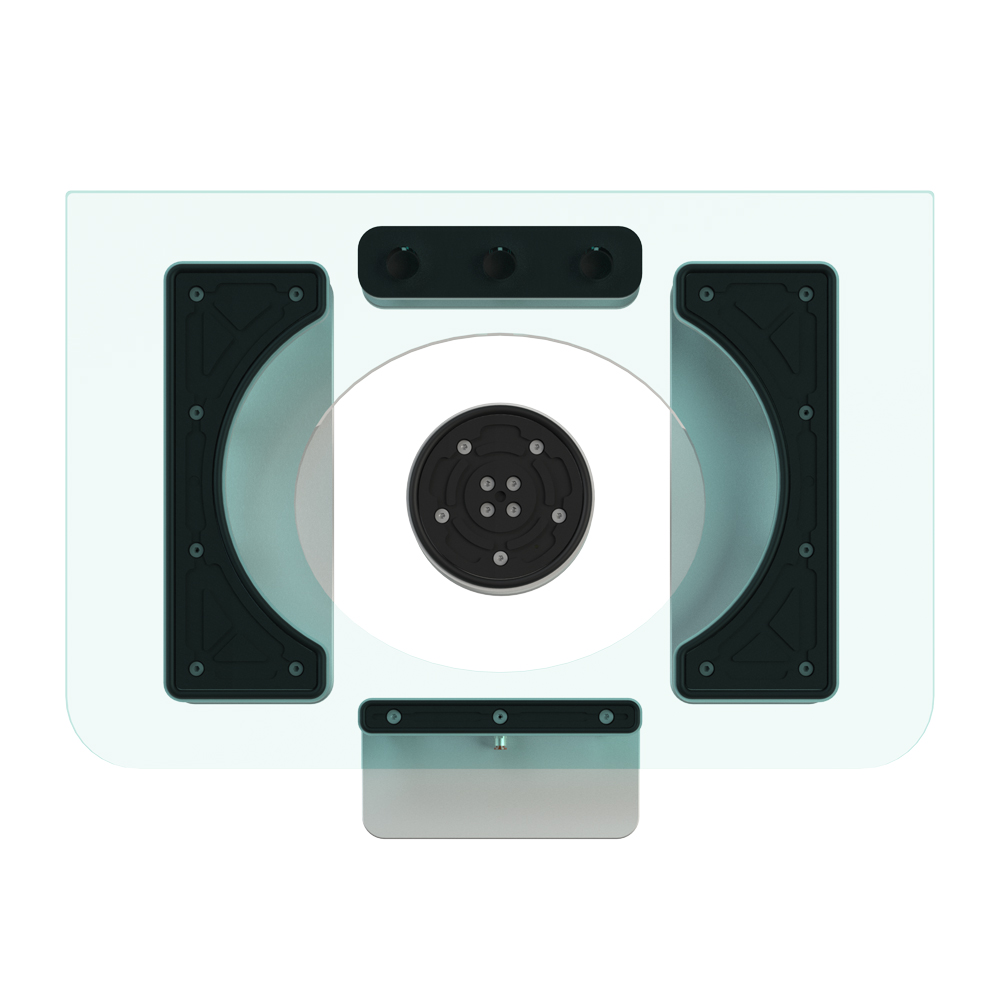

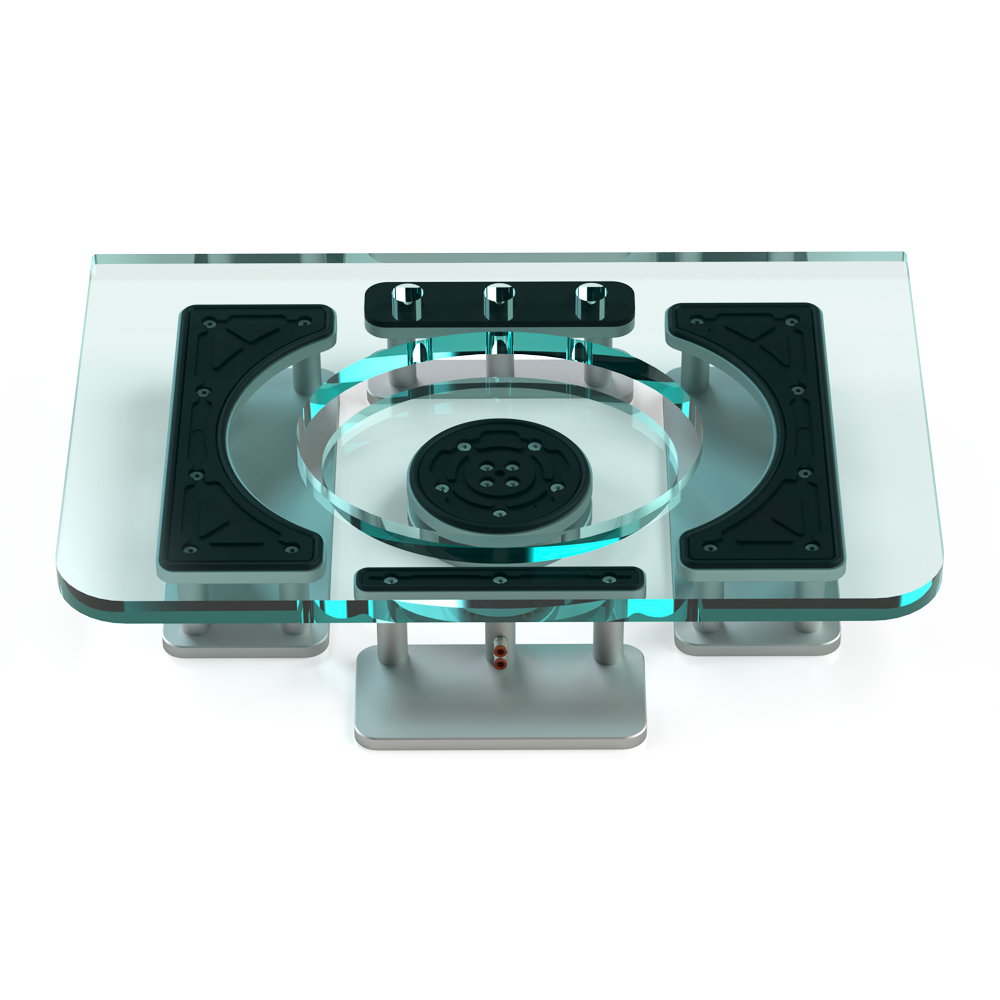

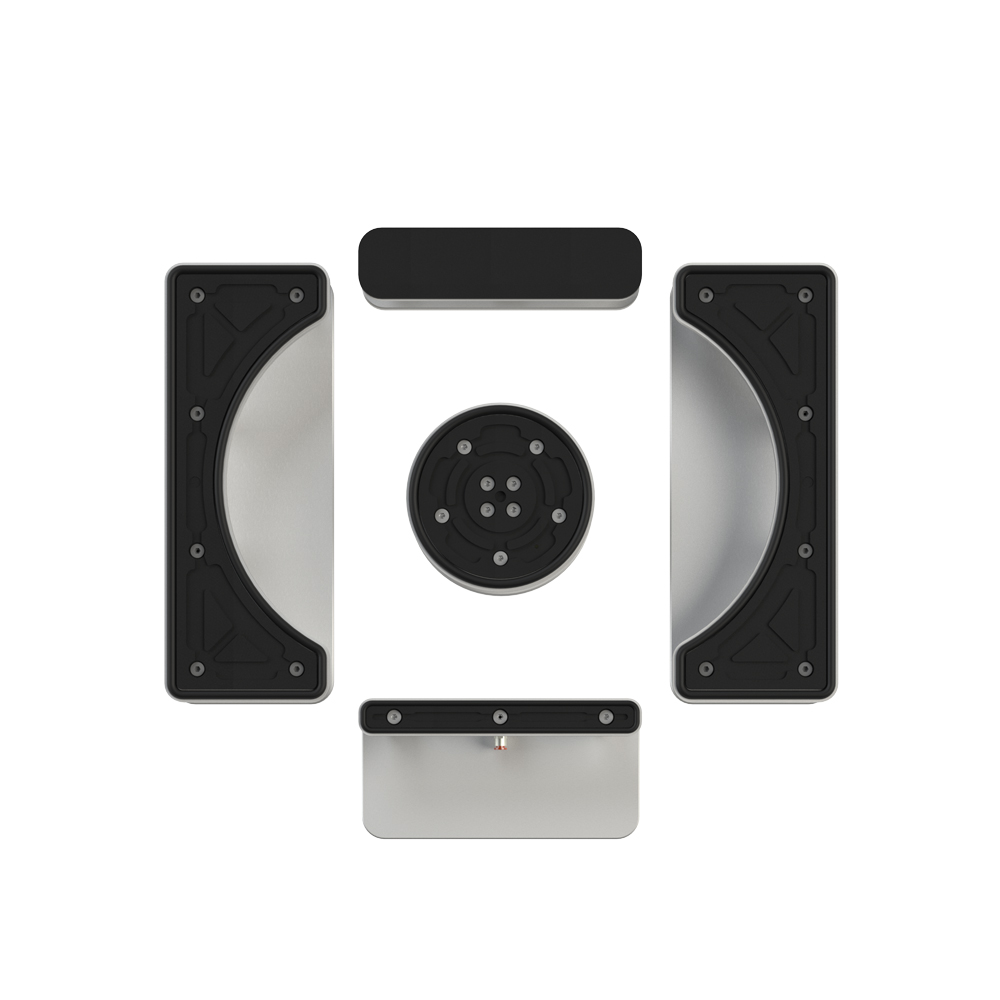

Sink Dropper Kit
(30-BIVanKit-105)
• Vanity Cups (x2)
• 40 x 150 x 300 mm Cup
• 75 x 300 mm Core Drill Support

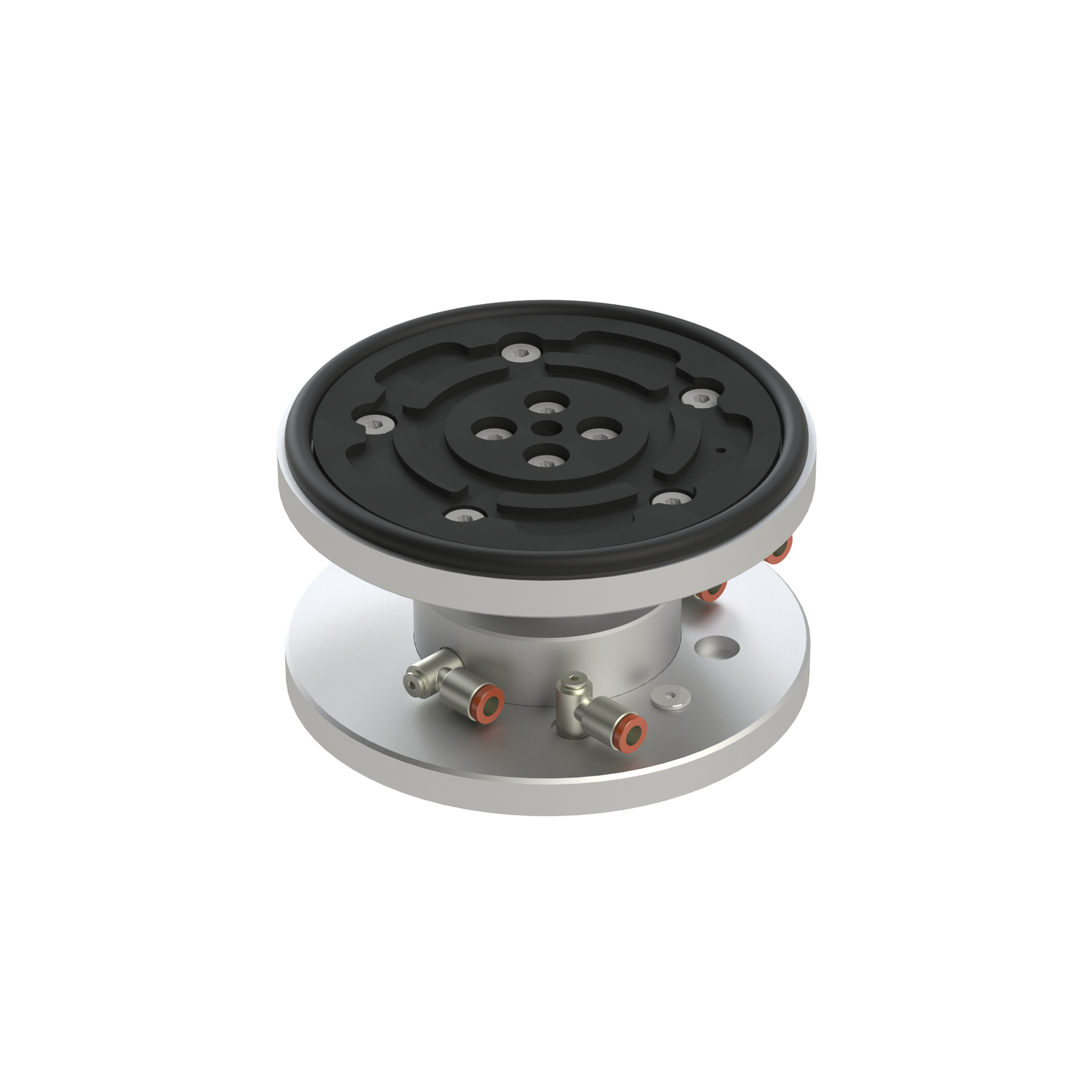

• 105 mm Height Retractable Cup
150 mm Height
Sink Dropper Kit
(30-BIVanKit-150)
• Vanity Cups (x2)
• 40 x 150 x 300 mm Cup
• 75 x 300 mm Core Drill Support

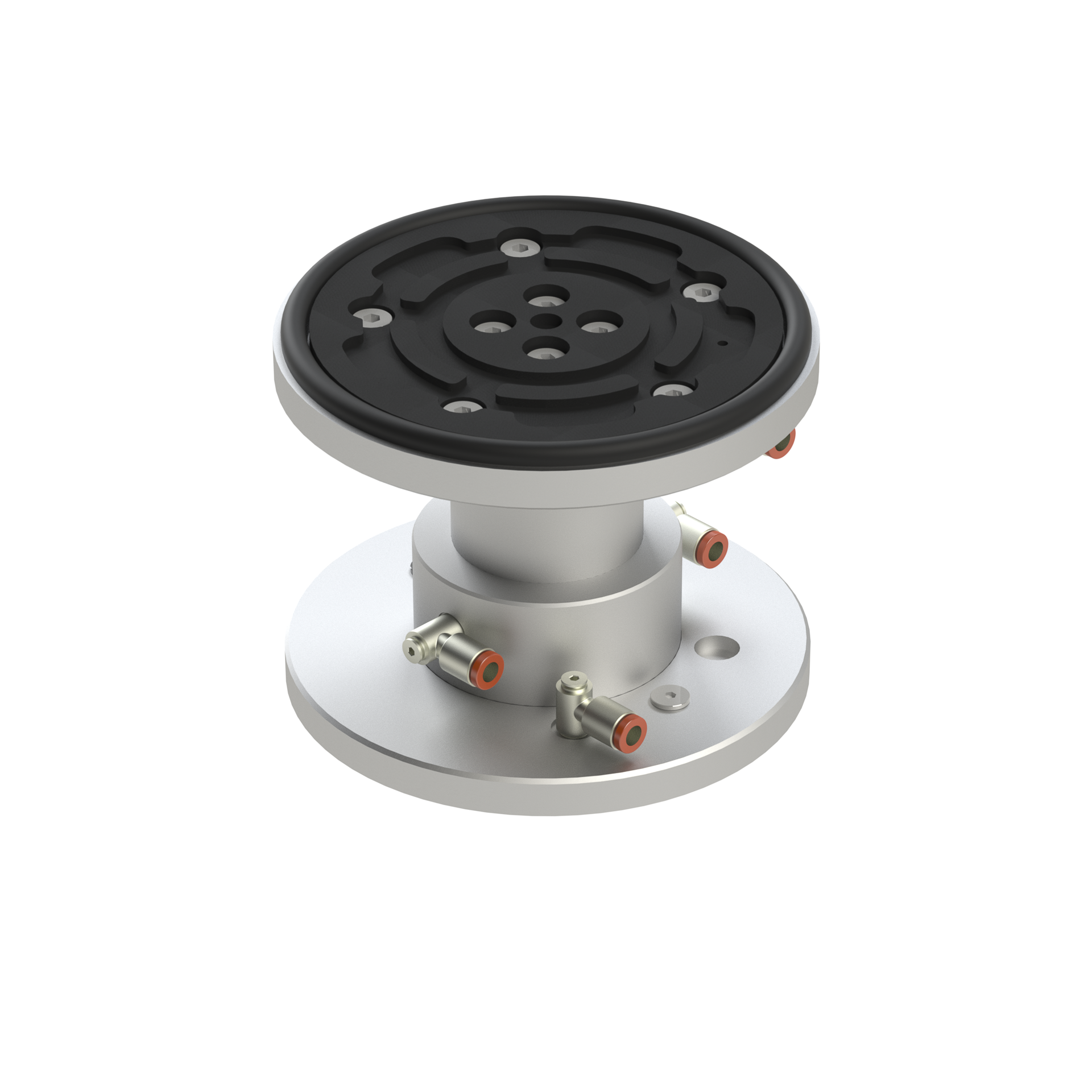

• 150 mm Height Retractable Cup
200 mm Height
Sink Dropper Kit
(30-BIVanKit-200)
• Vanity Cups (x2)
• 40 x 150 x 300 mm Cup
• 75 x 300 mm Core Drill Support

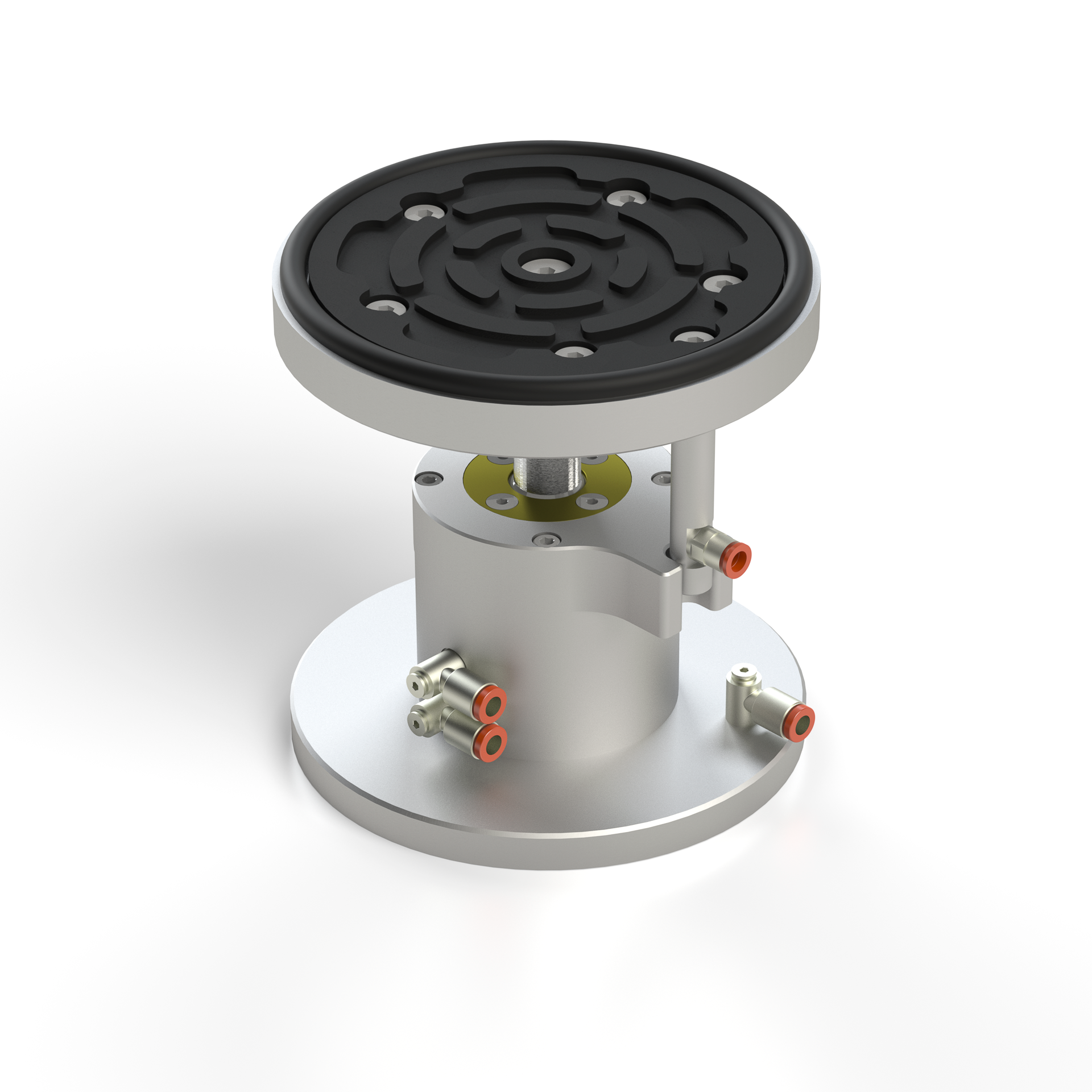

• 200 mm Height Retractable Cup

How to Measure Fittings & Suction Cup Heights
