BLICK Swivel Cup | CNC Stone Glass Porcelain Wood Solid Surface

✕

Swivel Suction Cup by Blick Industries

Swivel Suction Cup by Blick Industries

Swivel Suction Cup by Blick Industries

Swivel Suction Cup by Blick Industries

Swivel Suction Cup by Blick Industries

Swivel Suction Cup by Blick Industries

Swivel Suction Cup by Blick Industries

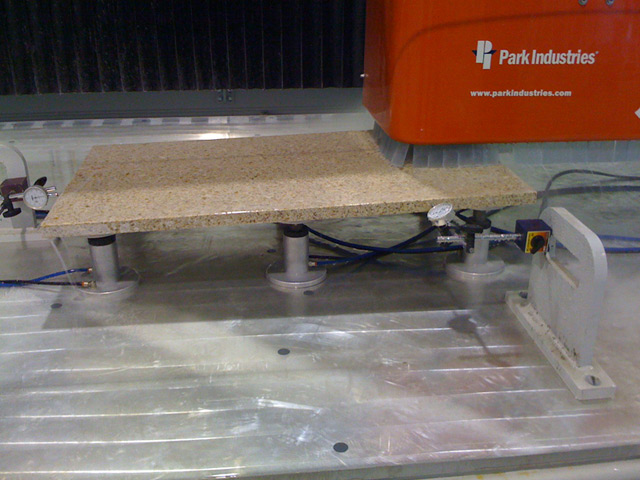

drainboard01

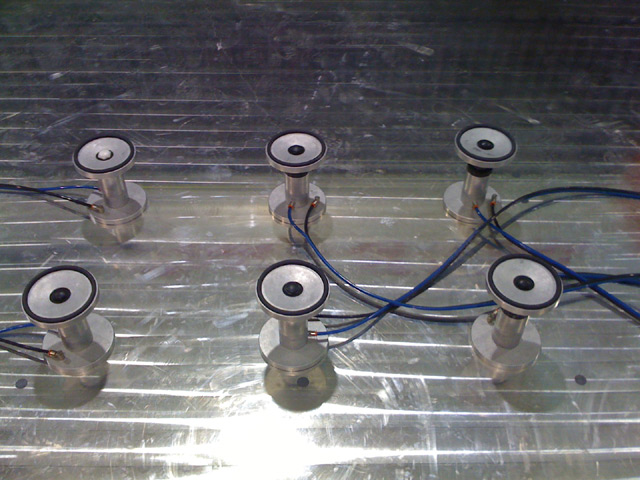

drainboard03

Part Number	12-500-02
Diameter	150 mm (5.94″)
Top Surface Area	25.60 in²
Base Surface Area	25.60 in²

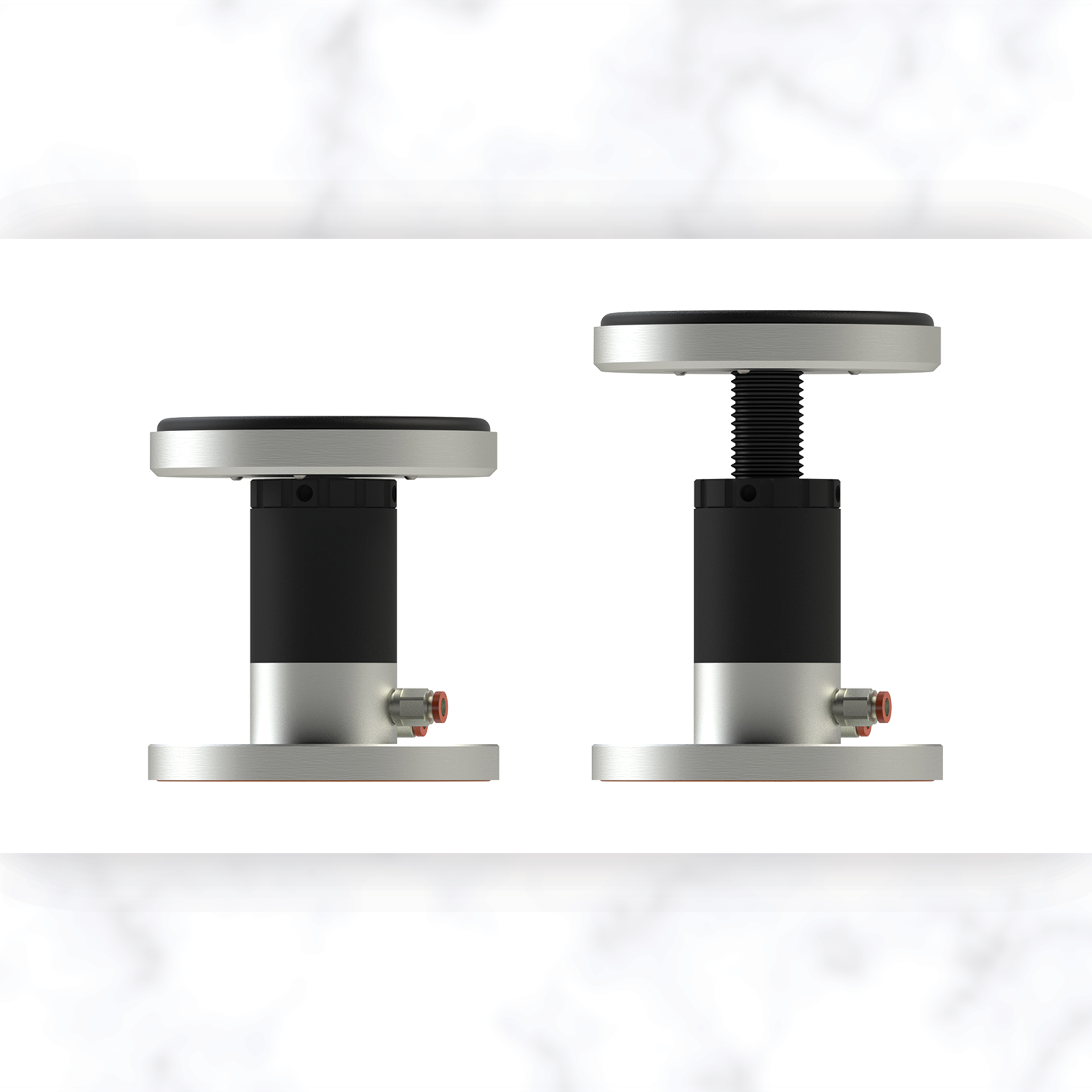

Vertical Height Range	155~210 mm (6.10″~8.27″)

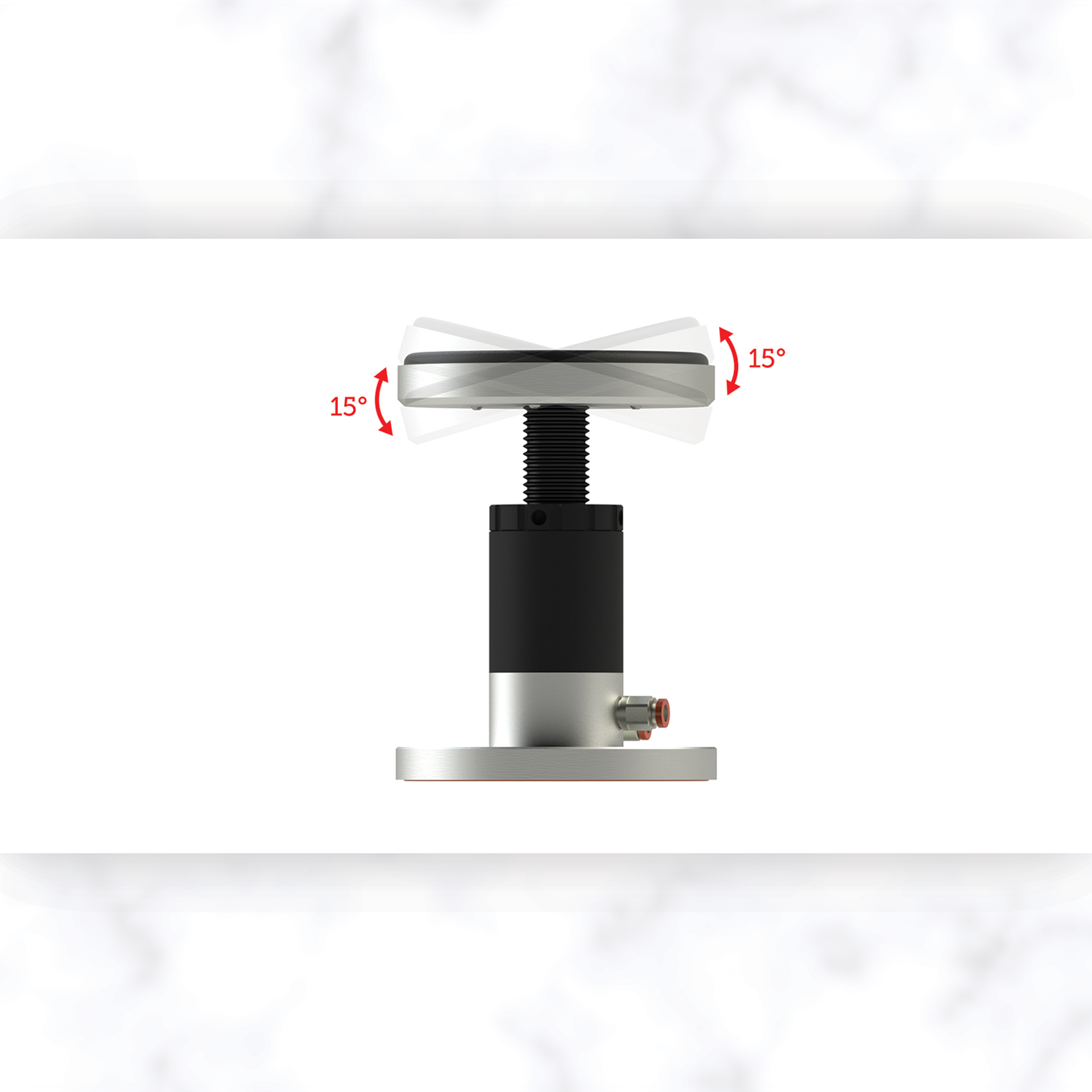

Max Swivel Angle	~15°
Top Seal Part #	12-500-02-04
Bottom Seal Part #	12-160-01-11

US PATENT 8,181,948

How to Measure Fittings & Suction Cup Heights

Downloads

DOCUMENT	CATEGORY	LINK	SIZE
BLICK INDUSTRIES Catalog	Catalog	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_2022_Catalog_web.pdf	23 MB
How to Measure Suction Cup Heights & Air Fittings	Fittings	https://www.blickindustries.com/wp-content/uploads/2020/02/BLICK_Fittings-SuctionCups_20200210_Measurments.pdf	397 KB
Anatomy of a Suction Cup	Suction Cups	https://www.blickindustries.com/wp-content/uploads/2022/06/Anatomy200x200_20220620.pdf	2 MB
Suction Cup Seal Lengths	Suction Cups	https://www.blickindustries.com/wp-content/uploads/2023/12/SuctionCup_SealChart_20231221.pdf	829 KB
How to Measure Valves	Fittings	https://www.blickindustries.com/wp-content/uploads/2020/12/BLICK_Valve-Port-Mani_20201202_Measur.pdf	333 KB
Isolator Kit	Tools & Accessories: Vacuum Systems	https://www.blickindustries.com/wp-content/uploads/2024/11/BlickIndustries_IsolatorKit_20241105.pdf	937 KB
Leatherheads & Accessories	Tools & Accessories	https://www.blickindustries.com/wp-content/uploads/2024/03/BLICK_Leatherheads+Accessories_20240224.pdf	2.24 MB
Repair Form	Forms	https://www.blickindustries.com/wp-content/uploads/2022/11/Blick_Repair-Form_20221130.pdf	82 KB
Dimensions Diagram - 26 mm Edge Locating Pin	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_26mm-Edge-Locat-Pin_20200803.pdf	KB
Dimensions Diagram - 50 mm Edge Locating Pin	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_50mm-Edge-Locat-Pin_20200803.pdf	484 KB
Dimensions Diagram - 50 mm Edge Locating Pin EL	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_50mm-Edge-Locat-Pin-EL_20200803.pdf	483 KB
Incoming Vacuum Lines - Manifold for INTERMAC Machine (Right)	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-02_Intermac-Mani_20200828.pdf	844 KB
Incoming Vacuum Lines - Manifold for INTERMAC Machine (Left)	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-01_Intermac-Mani_20200828.pdf	855 KB
Replacement Parts - Intermac Manifolds	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/INTERMAC-Mani_Replace-Parts_20200828.pdf	134 KB
Height Diagram - Stop Locator Tool	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/08/Stop-Locator-Tool-Diagram.pdf	929 KB
Dressing Tool Assembly & Body Lengths	Tools & Accessories	https://www.blickindustries.com/wp-content/uploads/2020/08/20-022-0x_Dressing-Tool-Assembly_20190520_All_1920.pdf	1 MB
Overview - Backsplash Clamp System	Clamps	https://www.blickindustries.com/wp-content/uploads/2018/06/BSClampInstructions.pdf	66 KB
Blowback Kit Setup Diagram	Manifolds	https://www.blickindustries.com/wp-content/uploads/2021/03/BlowbackKit_SetupDiagram_20210219.pdf	38 KB
Ghost Markings	Service & Repairs	https://www.blickindustries.com/wp-content/uploads/2024/04/BI_Vacuum-Pod_Ghost-Mark_Info.pdf	3 MB

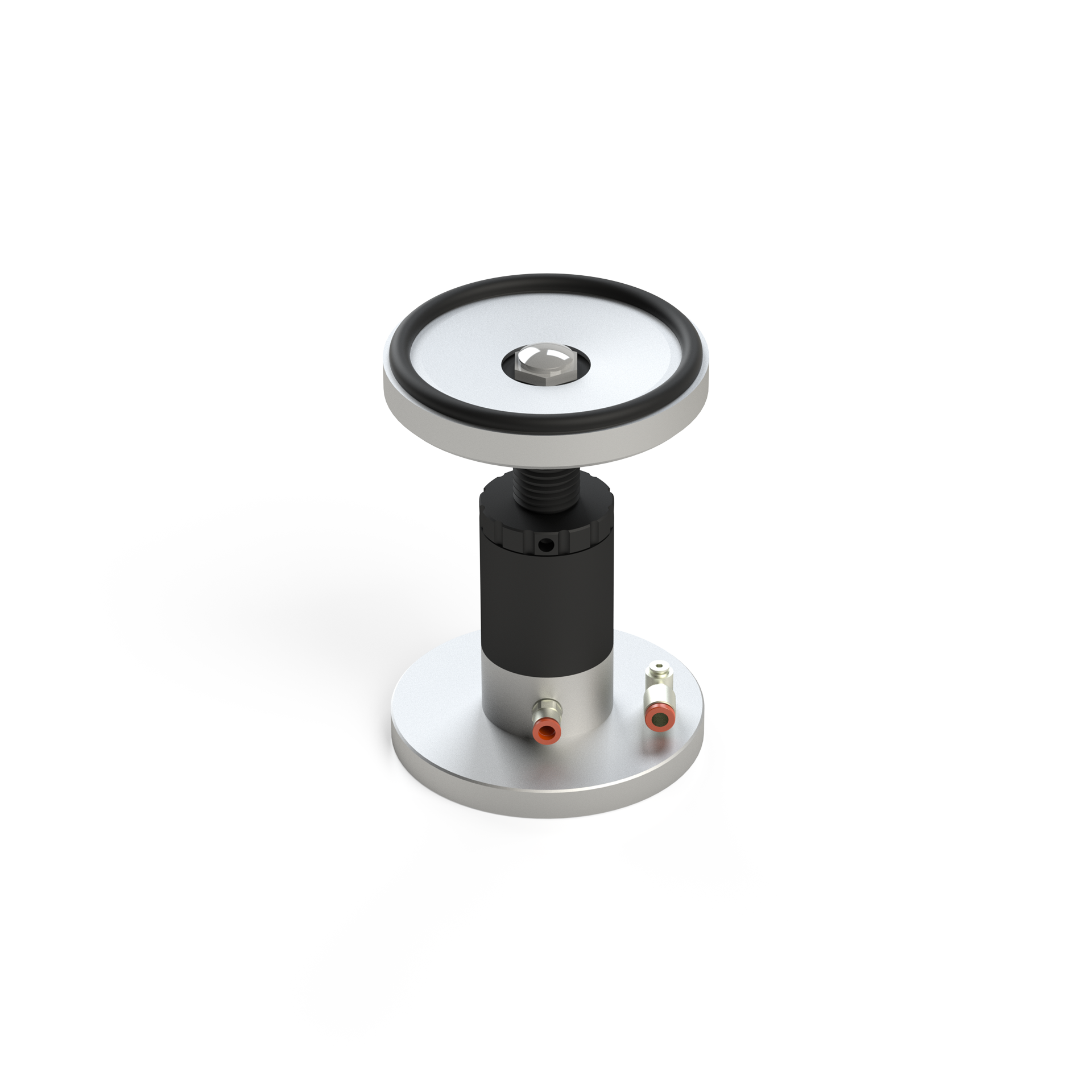

Swivel Cup

$545.00

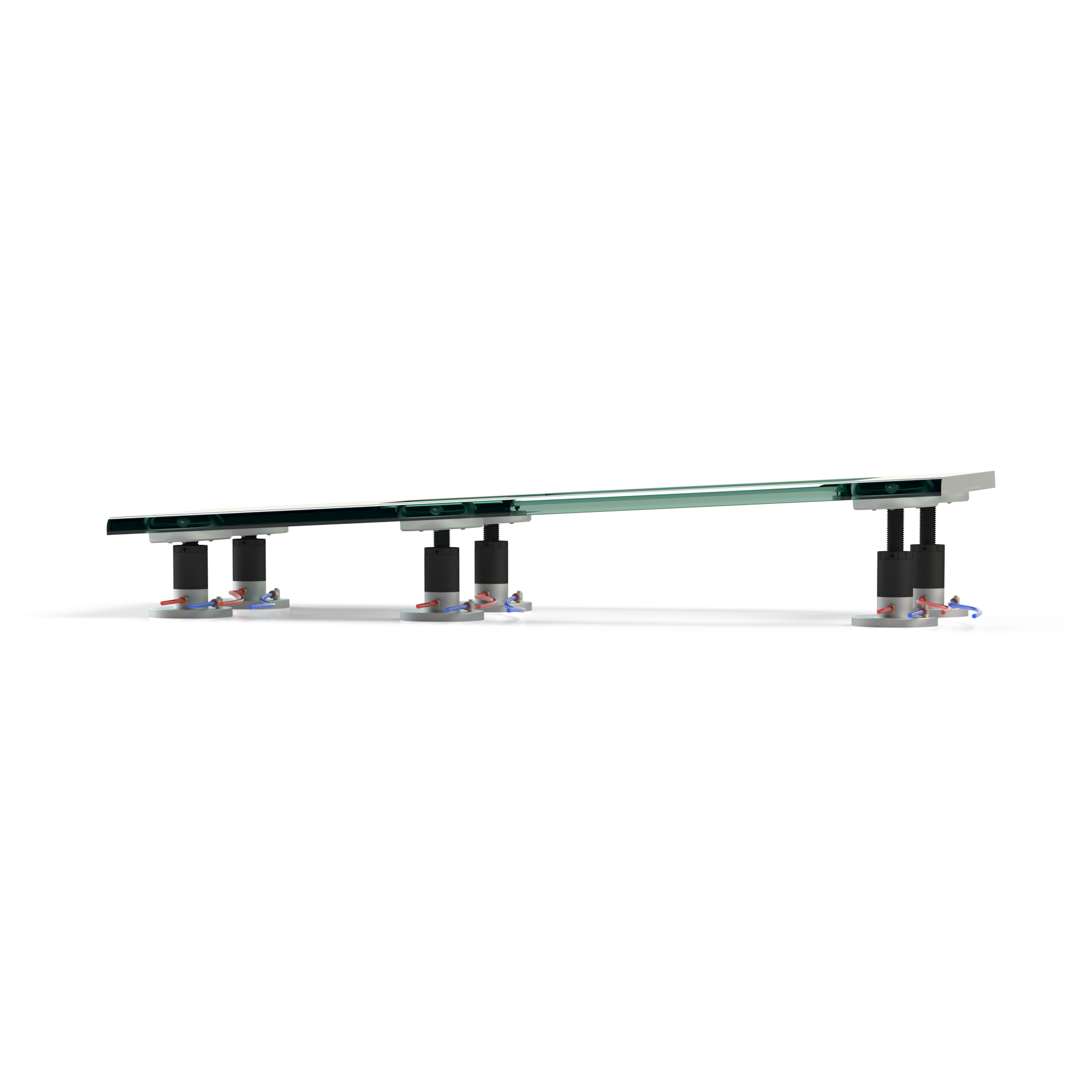

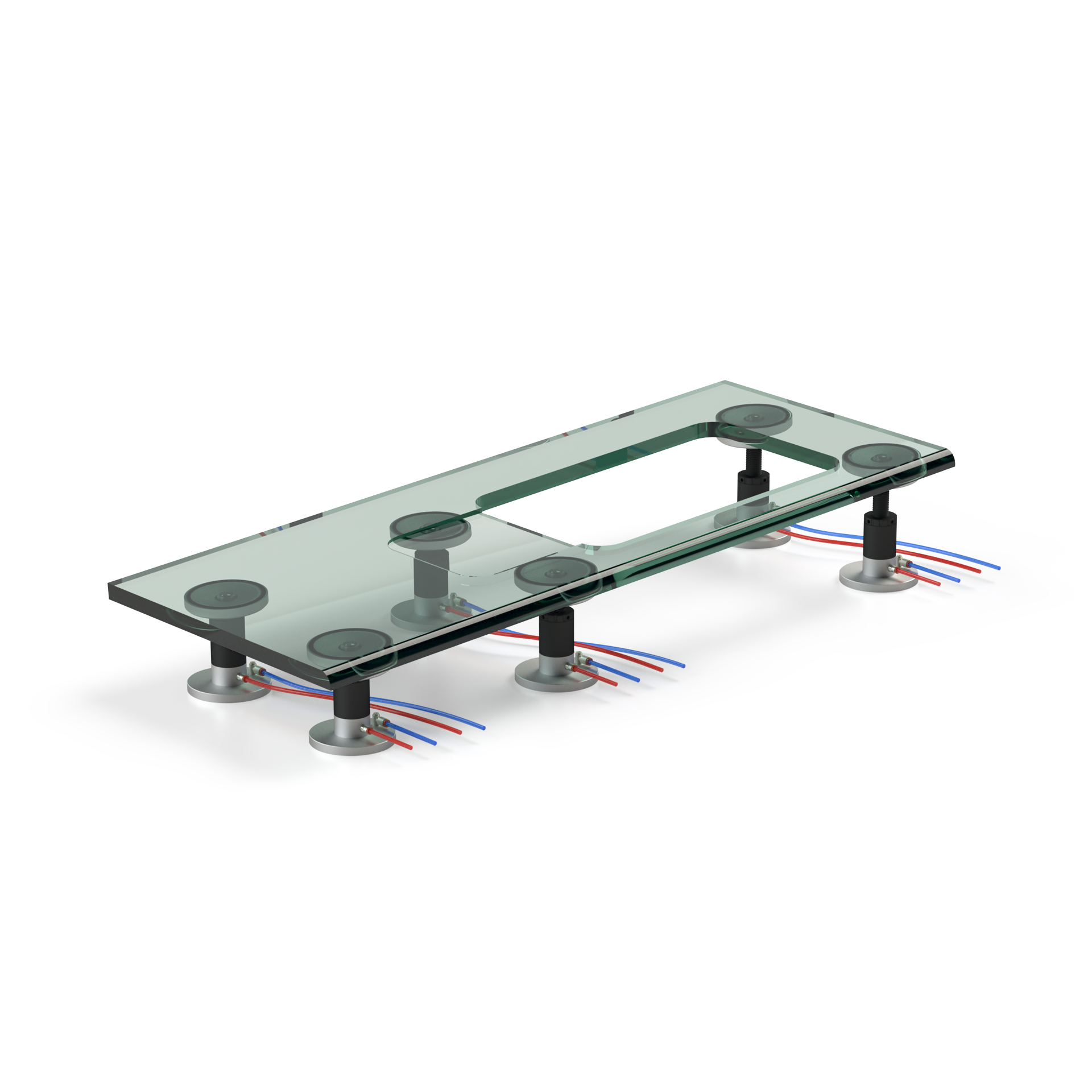

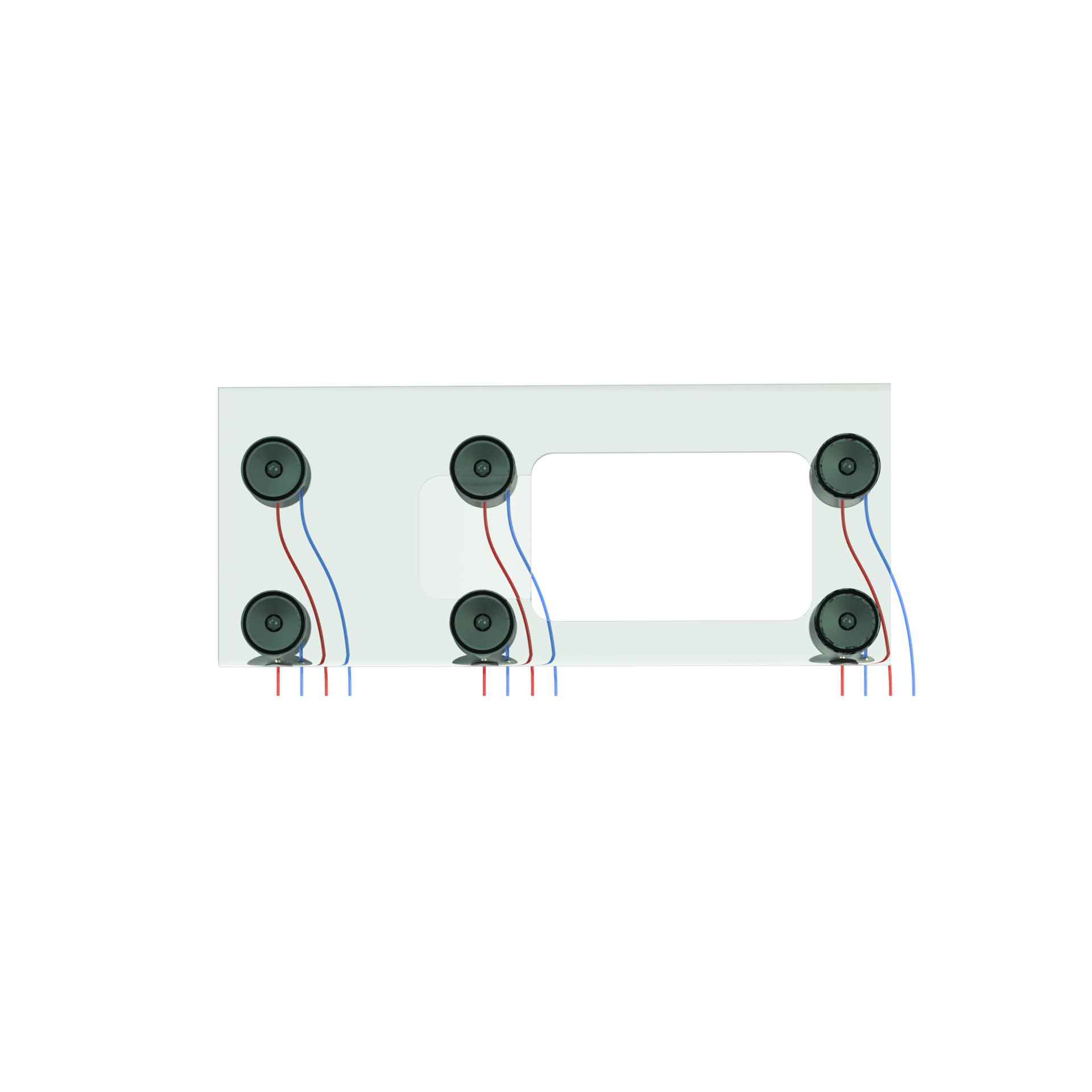

This Swivel Cup is adjustable in height and is used for placing workpieces on an angle; recommended for 3-axis CNC machines without a tilting head.

Tags: Adjustable Cups Pods Round Suction Cups SwivelCategories: Specialty, Suction CupsSKU: 12-500-02
