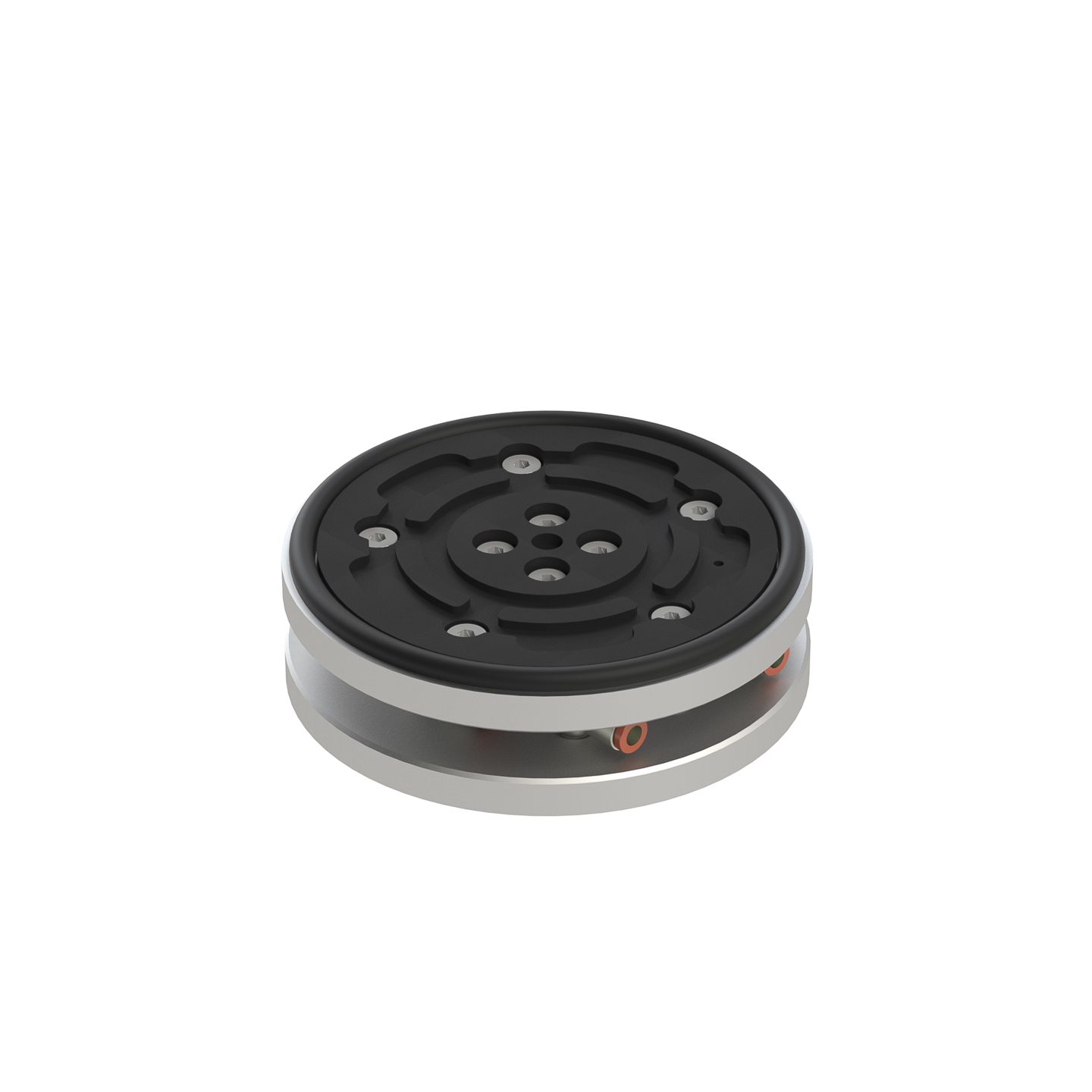

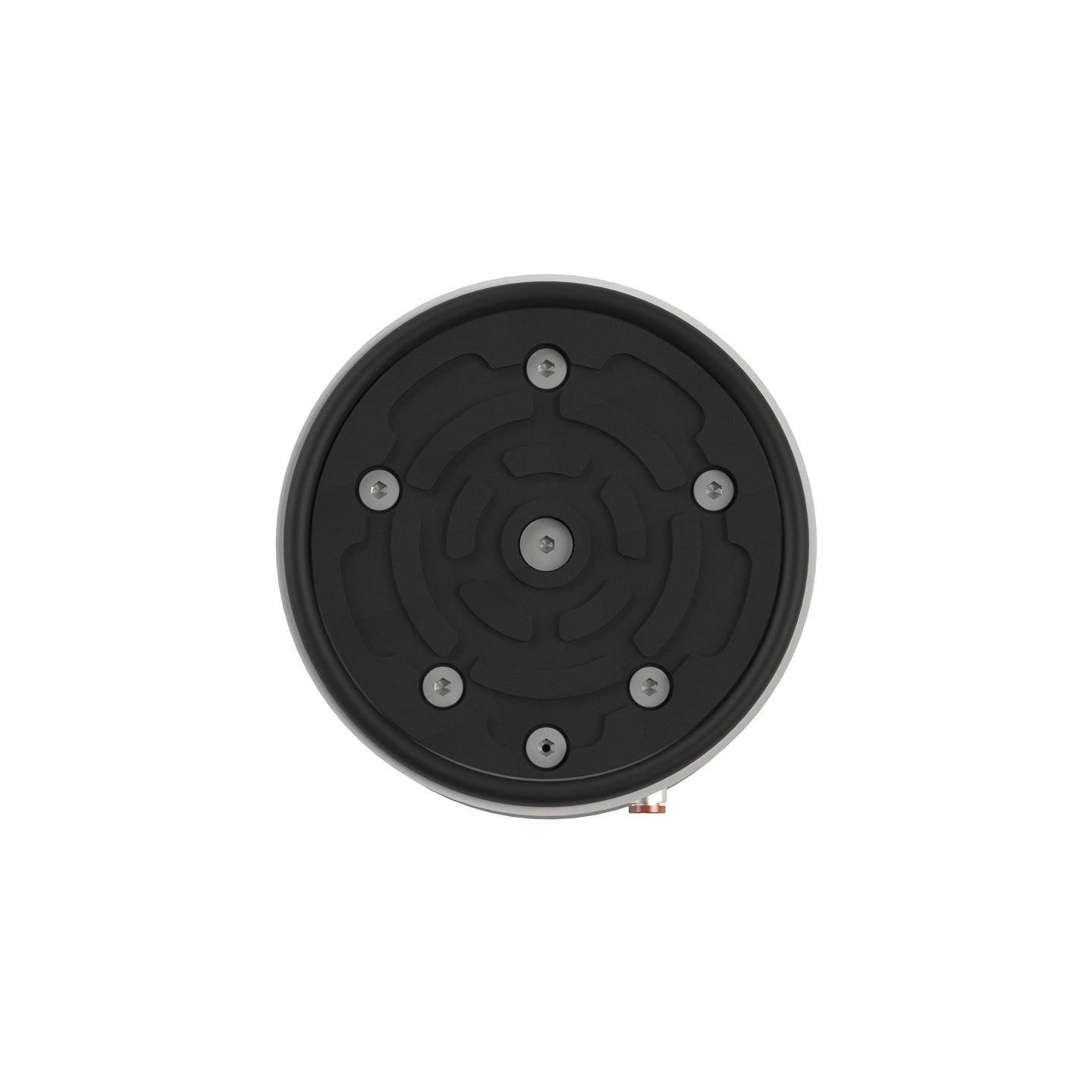

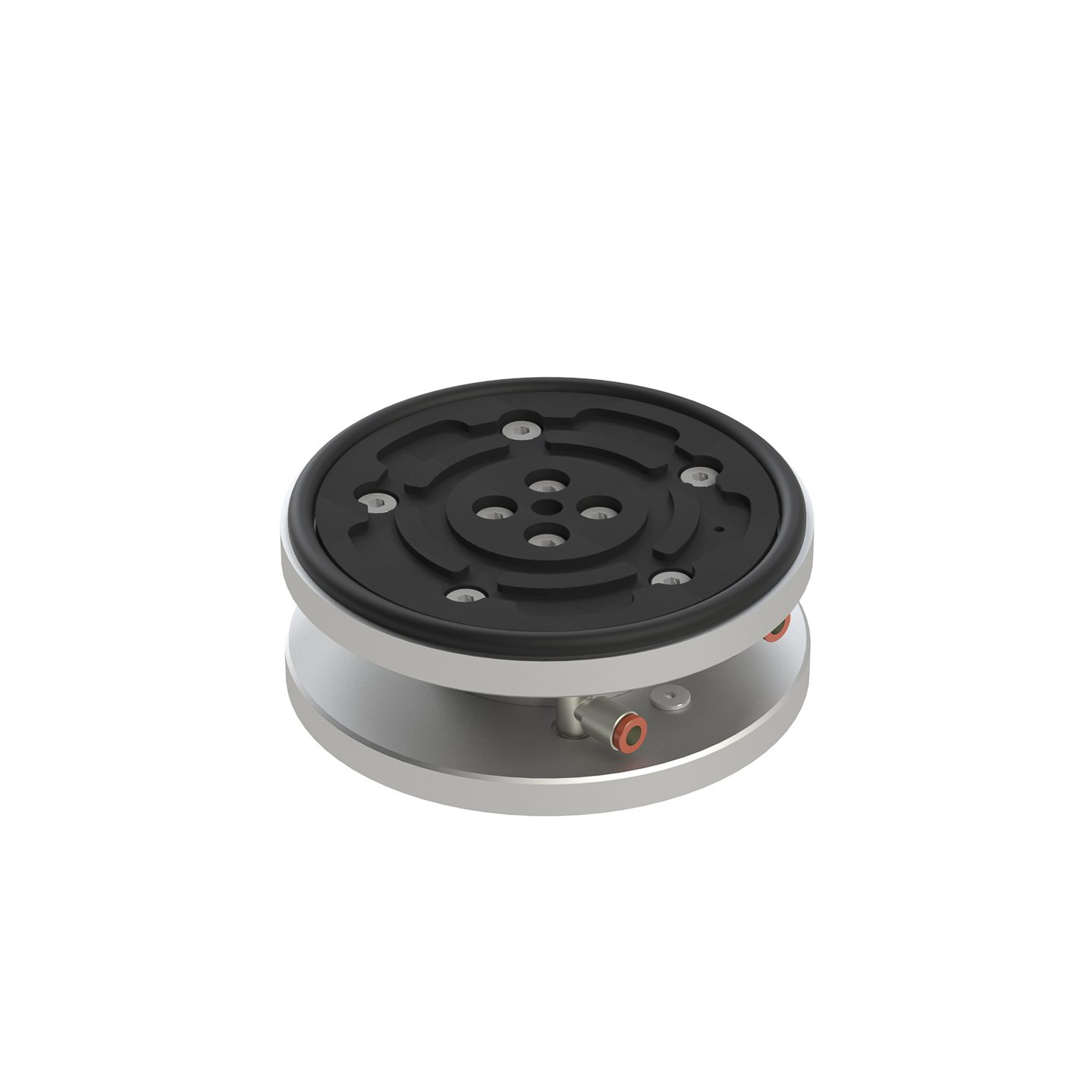

Retractable Suction Cups
$595.00 – $750.00

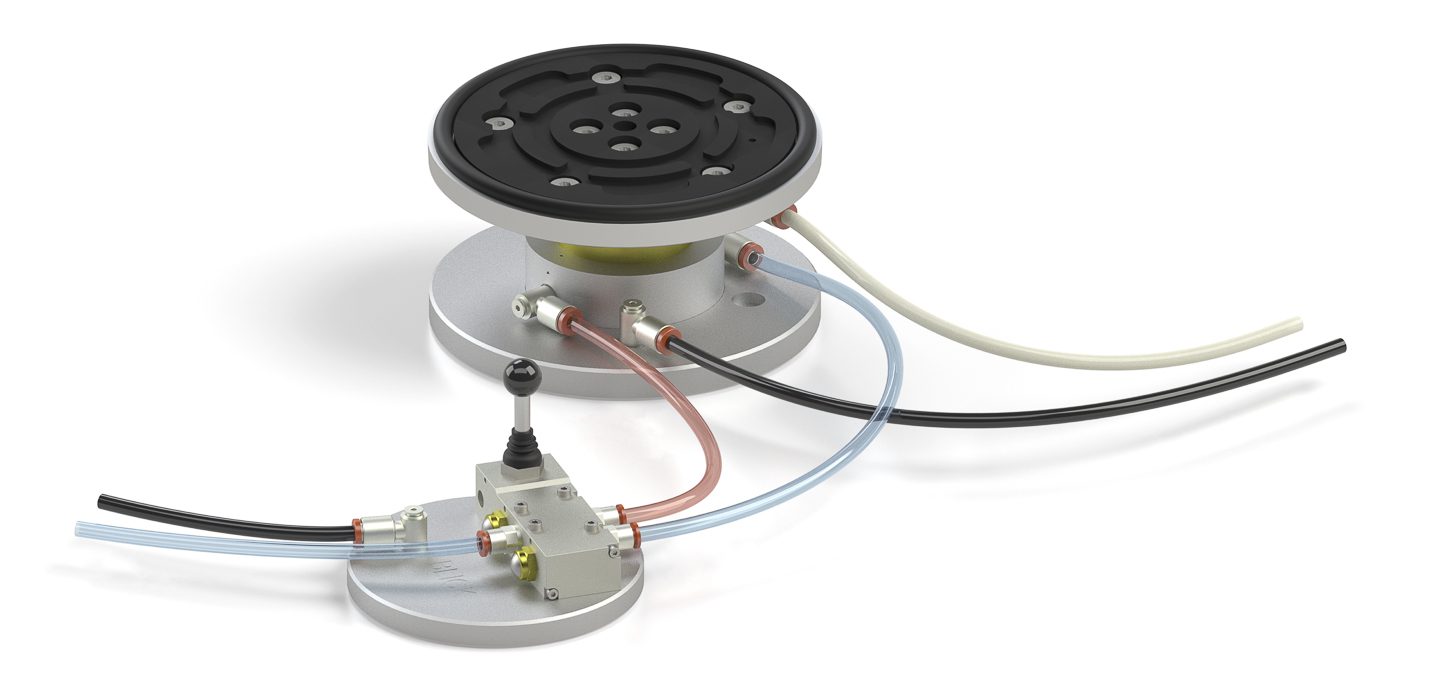

Allow sink cutouts to be automatically lowered after routing to provide clearance for profiling and polishing.
Add further automation to your stone fabrication process.
- Sink cutouts are automatically lowered protecting your equipment, saving you time, and simplifying your workflow.
- Cut, profile, and polish cut-outs in a single production run without starting and stopping your machine.
- Works on and CNC machine operating at 105 mm, 150 mm, or 200 mm.
| Part Number | 27-200-01-105 | 27-200-01-150 | 12-200-02 |

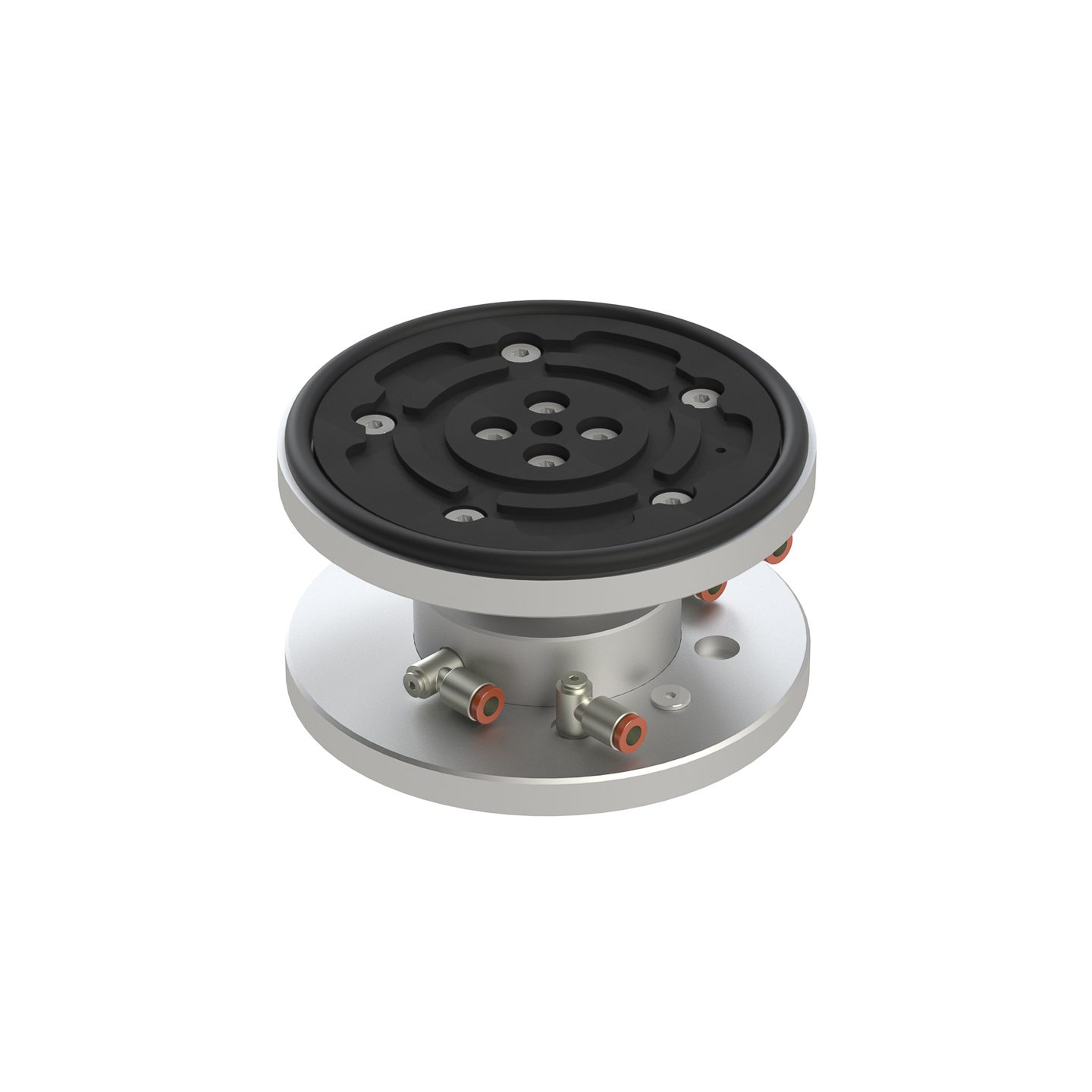

| Raised Height | 105 mm | 150 mm | 200 mm |
| Retracted Height | 57 mm | 72 mm | 125 mm |
| Pad Diameter | 200 mm | ||
| Top Surface Area | 41 in2 | ||
| Base Surface Area | 41 in2 | ||
| Top Seal Part # | 27-200-01-04 | ||
| Bottom Seal Part # | 27-200-02-11 | ||
NOTE: Also known as a “Sink Dropper.” See Vanity Sink Suction Cup Kit.
