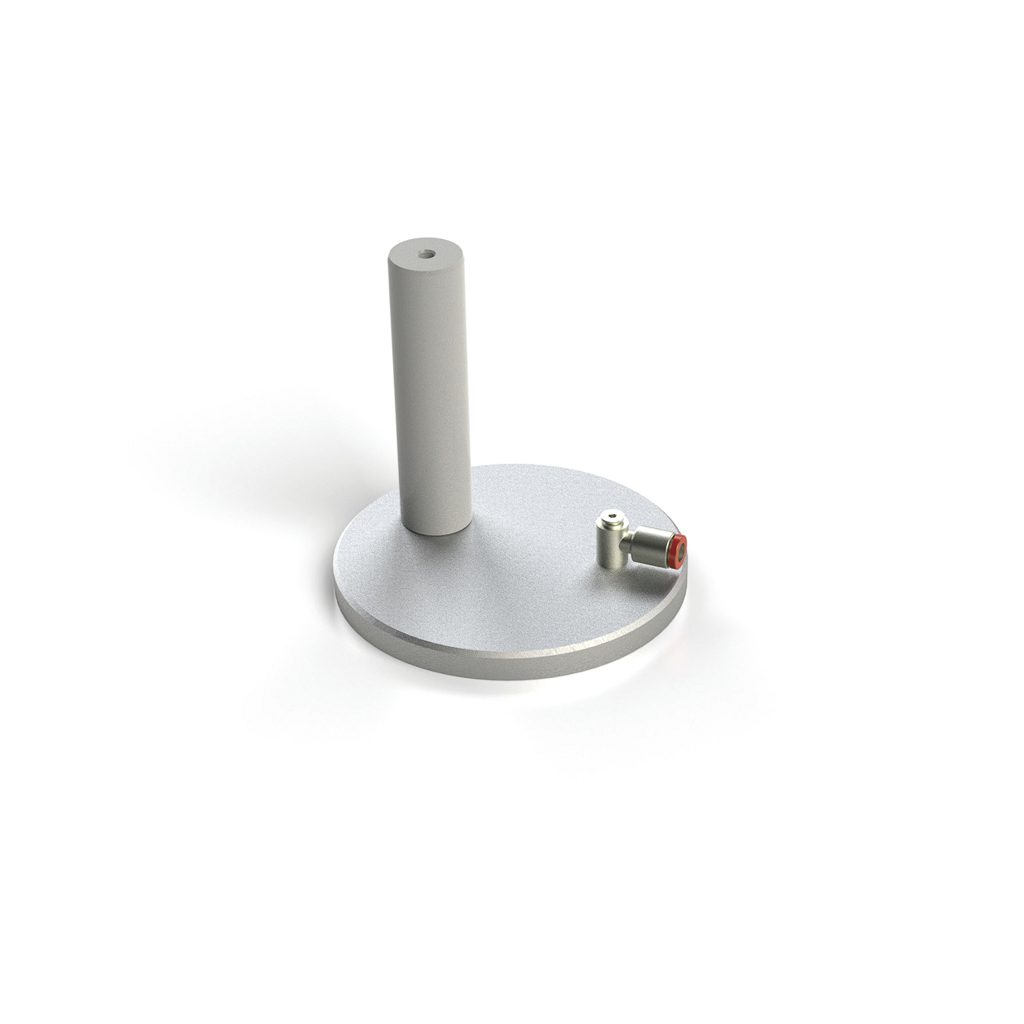

Locating Pins consist of a vacuum base and a removable pin. The Removable Pin is placed over the stainless steel pin on the base during setup and then removed during the machine cycle.
- For accurately locating a workpiece on CNC machines using the spindle
- More accurate than a laser
- Provides a simple, cost-effective solution
- Locate pins with the Stop Locator Tool
| Height (READ ME) |
Part # |
| 100 mm | 11-301-03-100 |
| Info. | Specs. |
| Stop Method | Removable Pin |
| Base Surface Area | 25.2 in2 |
| Base Dimensions | 150 mm Diameter (5.91″) |
| Bottom Seal Part # | 11-301-01-11 |
NOTES:
- Available in ANY height and most popular fitting sizes.
- Uses the same Removable Pins as Table Edge Locating Pins.
- Replacement pin available with laser target
(Part Number: 1-301-01-73) Contact Us for More Info. - Locating Pins are for locating ONLY and not for stabilizing material. See Vacuum Fences
Downloads
31 mm Locating Pin
$245.00
Locating Pins provide rigid, repeatable reference points for quick and easy locating.
NOTICE: Order Locating Pins according to the corresponding suction cup operating height.
SEE EXAMPLE: 105 mm Height Locating Pin pairs with 105 mm height Suction Cup.
