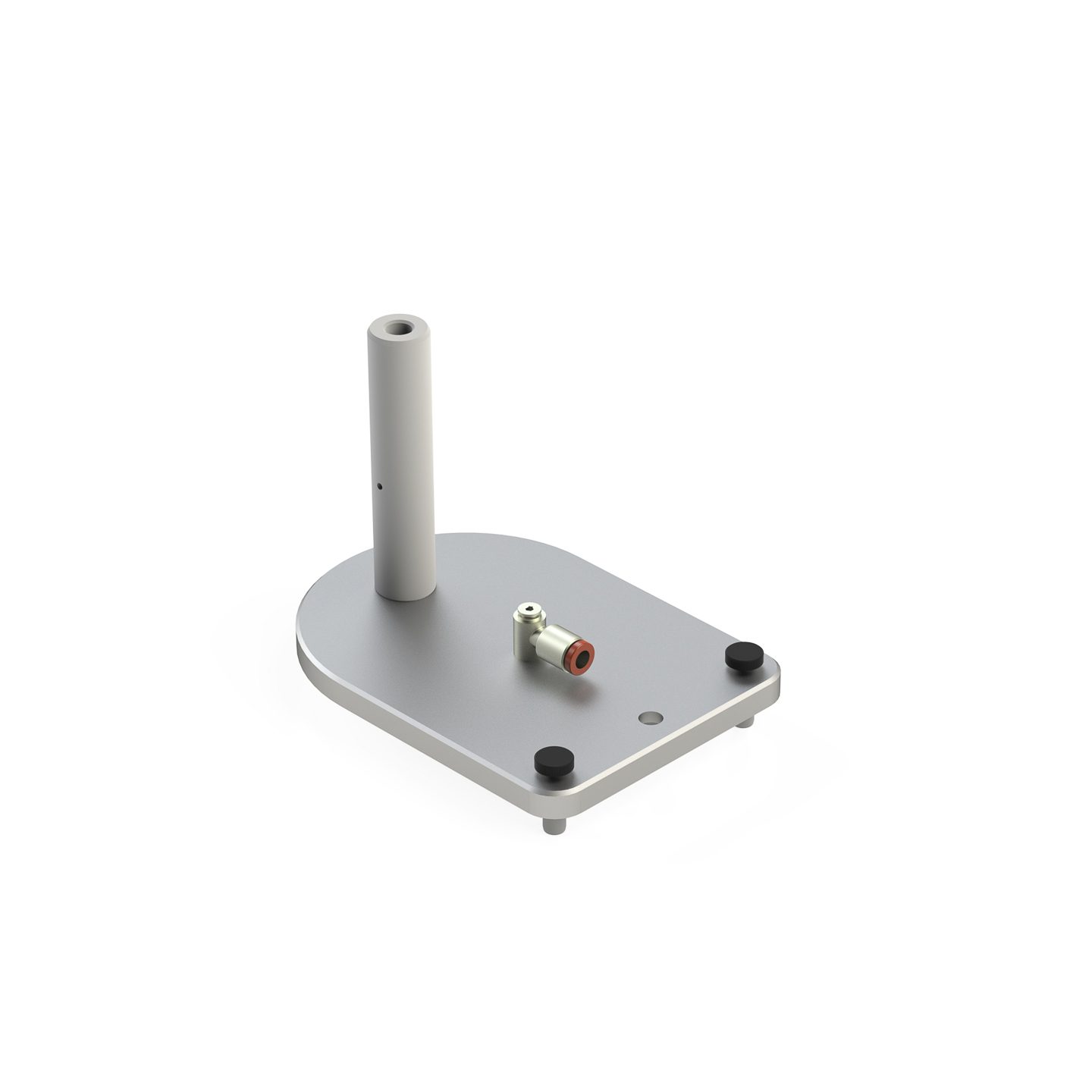

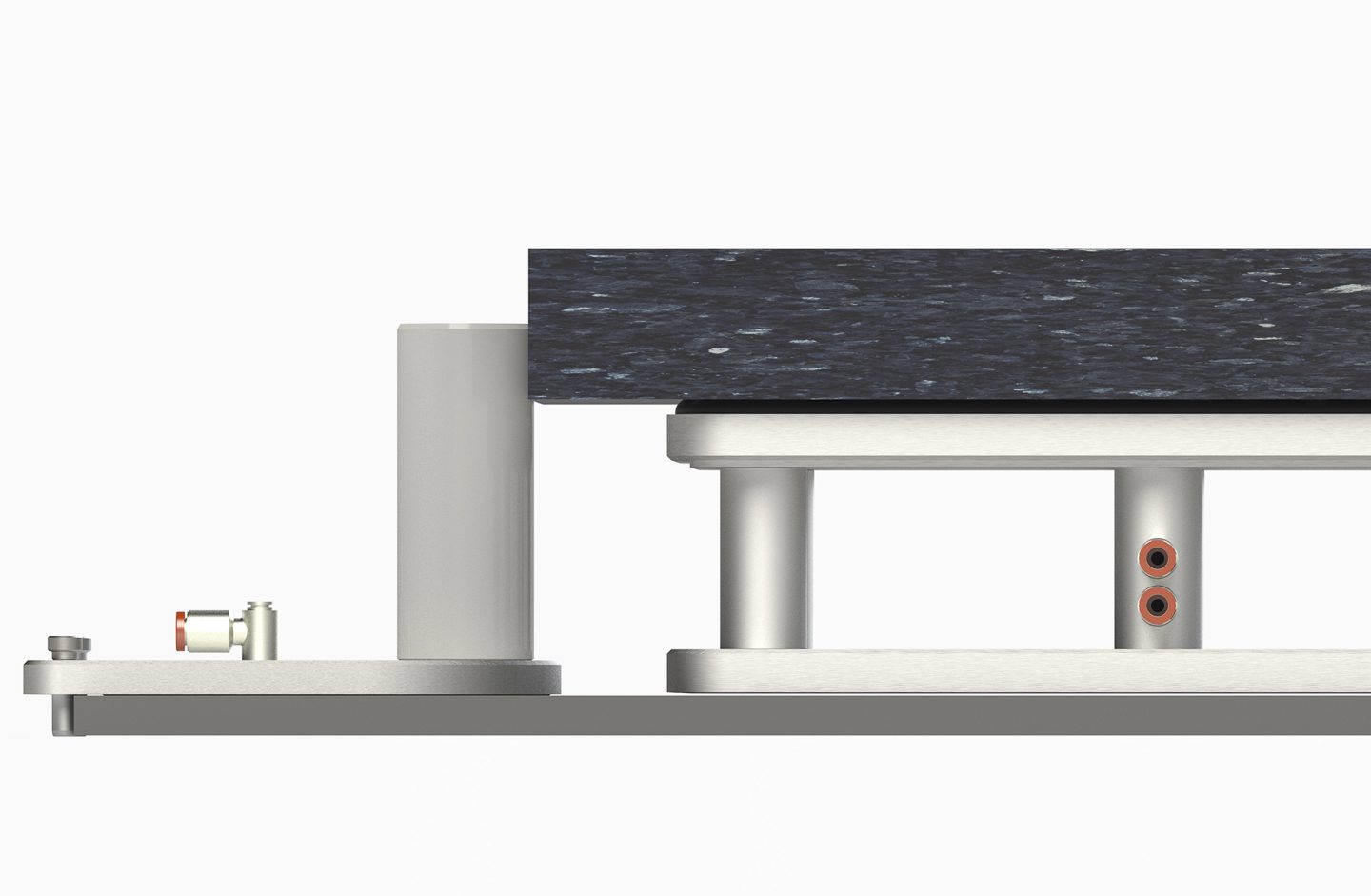

Two pins protrude from the base of the unit reference against the edges of the machine’s table, allowing for a quick and repeatable setup.
-
- Use the corners of the machine’s table to create four fixed origins.
- For accurately locating a workpiece on CNC machines using the spindle.
- Locate pins with the Stop Locator Tool or 26mm Aggregate (INTERMAC machines)
| Height (READ ME) |
Part # |
| 105 mm | 11-401-02-105 |
| 150 mm | 11-401-02-150 |
| 180 mm | 11-401-02-180 |
| 213 mm | 11-401-02-213 |
| Info. | Specs. |
| Edge Offset | 165 mm (6.50″) |
| Stop Method | 50 mm (1.97″) Removable Pin |
| Base Surface Area | 26.4 in2 |
| Base Dimensions | 140 x 195 mm (5.51″ x 7.68″) |
| Bottom Seal Part # | 11-401-01-11 |
NOTES:
- Available in ANY height and most popular fitting sizes.
- Uses the same Removable Pins as Locating Pins
- Replacement pin available with laser target
(Part Number: 1-301-01-73) Contact Us for More Info. - Table Edge Locating Pins are for locating ONLY and not for stabilizing materials. Vacuum Fences
Downloads
26 mm Table Edge Locating Pin
$255.00 – $275.00
There is no faster way to set up rectangular pieces!
NOTICE: Order Locating Pins according to the corresponding suction cup operating height.
SEE EXAMPLE: 105 mm Height Locating Pin pairs with 105 mm height Suction Cup.
