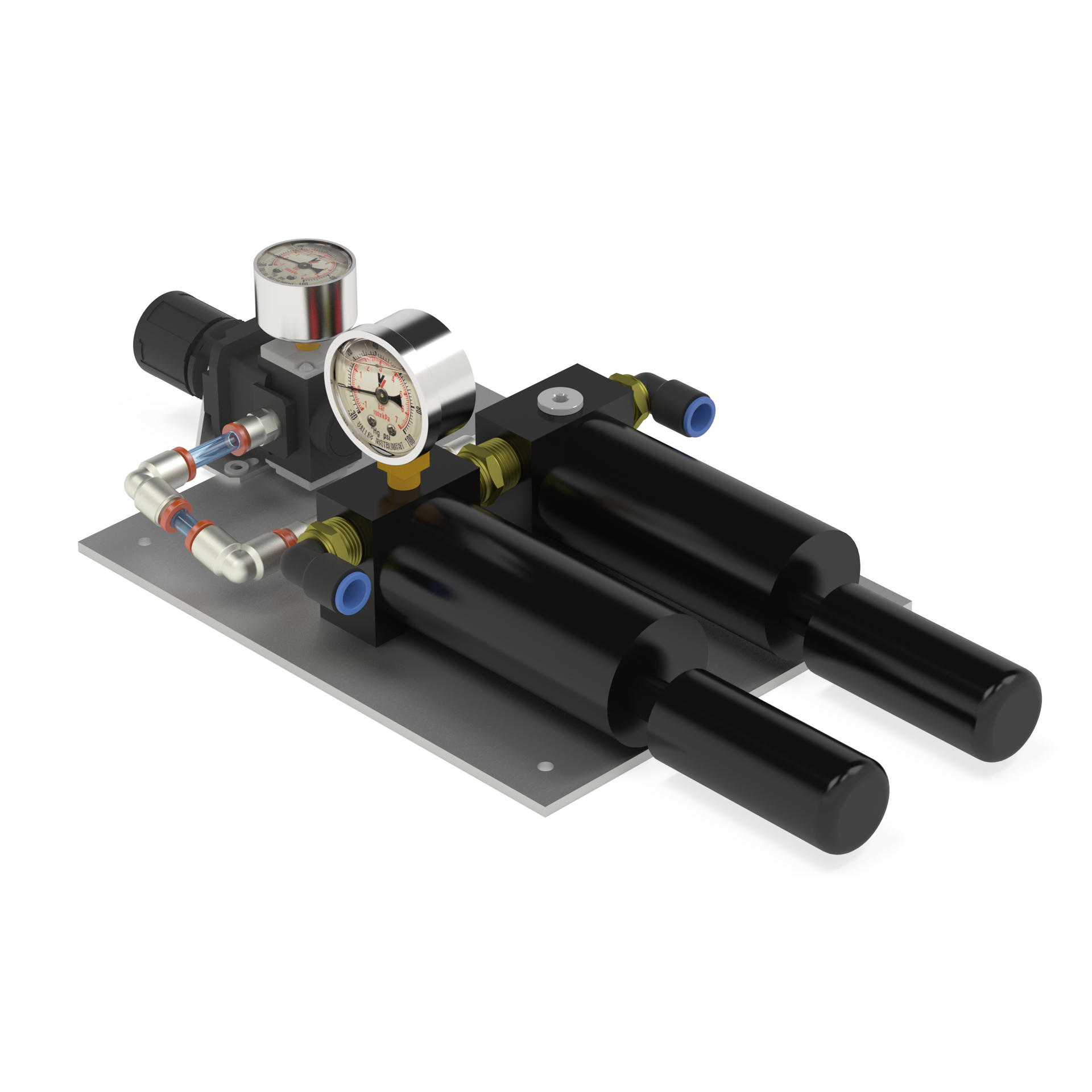

Generate vacuum by passing compressed air through an internal nozzle. The systems have a limited capacity and should not be used with porous materials. They also require that your suction cups and manifolds be well-maintained and free of extensive leaks.
| Single Vacuum | Dual Vacuum | |
| Part Number | 01-501-01 |
01-501-02 |
| Max Vacuum Level | 26 in Hg | 26 in Hg |
| Air Consumption | 7 CFM @ 68 psi | 14 CFM @ 68 psi |
| Open Flow Capacity | 17 CFM | 34 CFM |
| Capacity at -20 in Hg | 0.75 CFM | 1.5 CFM |
| Air Connection | 1/4″ NPT | 1/4″ NPT |
| Max Vacuum Level | 1/2″ Push Connect | 1/2″ Push Connect |
| Required Air Pressure | 80-85 PSI | 80-85 PSI |
Note: Tubing is not included
FAQ
| Category | Question |
|---|---|
| Suction Cups | Q: What length should I cut my Top Seals? A: For the cut lengths for both your Top and Bottom Seals, see the link here for instructions on how to replace your seal. There you will find a chart to reference the cut lengths. |
| Location Devices | Q: Can Locating Pins be used as fences? A: No, Locating Pins can not be used as fences. They are not designed to withstand any significant amount of force. See the link here to see our line of Vacuum Fences |
| Fittings | Q: How do I properly remove tubing? A: Push in the collar of the fitting until it clicks, then pull out the tubing. Pulling out the tubing without pushing down the collar will damage the fitting. |
| Tools & Accessories: Vacuum Systems | Q: I have a vacuum leak. How do I find it? A: To locate a leak in your system, use the Isolator Kit to quickly and efficiently find where problem is, see the link here for instructions on how to pinpoint your leak and how to set things right. |
| Services & Repairs | Q: Do you guys do repairs? A: Yes, we do. Go to the link here to see how to get your BLICK tools fixed. |
| Services & Repairs | Q: I have "ghosting" on my piece, how do I prevent this? A: Here's how; see the link here |
