BLICK 150 x 300 mm (5.91" x 11.81") Suction Cup | CNC Stone Glass Porcelain Wood Solid Surface

✕

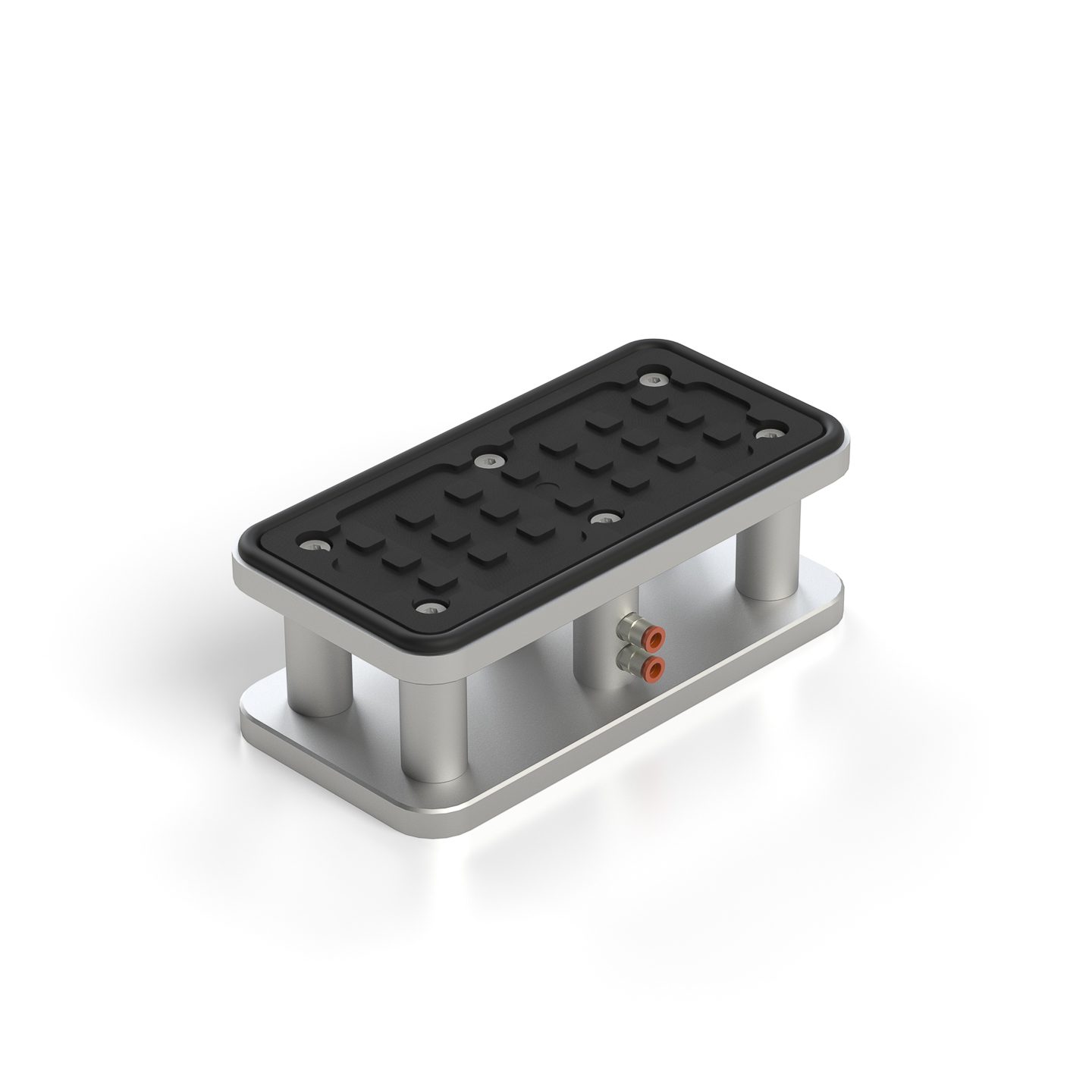

150 x 300 mm Suction Cup by Blick Industries

150 x 300 mm Suction Cup by Blick Industries

Modular construction allows for easy replacement of friction pads and seals as well as worn out or damaged parts, extending the life of the item and lowering the effective cost.

Part Number	12-150-30
Top Surface Area	64.25 in²
Base Surface Area	64.25 in²
Top Seal Part #	12-150-30-04
Bottom Seal Part #	12-150-30-11
Base Dimensions	150 x 300 mm (5.91″ x 11.81″)

How to Measure Fittings & Suction Cup Heights

Downloads

DOCUMENT	CATEGORY	LINK	SIZE
BLICK INDUSTRIES Catalog	Catalog	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_2022_Catalog_web.pdf	23 MB
How to Measure Suction Cup Heights & Air Fittings	Fittings	https://www.blickindustries.com/wp-content/uploads/2020/02/BLICK_Fittings-SuctionCups_20200210_Measurments.pdf	397 KB
Anatomy of a Suction Cup	Suction Cups	https://www.blickindustries.com/wp-content/uploads/2022/06/Anatomy200x200_20220620.pdf	2 MB
Suction Cup Seal Lengths	Suction Cups	https://www.blickindustries.com/wp-content/uploads/2023/12/SuctionCup_SealChart_20231221.pdf	829 KB
How to Measure Valves	Fittings	https://www.blickindustries.com/wp-content/uploads/2020/12/BLICK_Valve-Port-Mani_20201202_Measur.pdf	333 KB
Isolator Kit	Tools & Accessories: Vacuum Systems	https://www.blickindustries.com/wp-content/uploads/2024/11/BlickIndustries_IsolatorKit_20241105.pdf	937 KB
Leatherheads & Accessories	Tools & Accessories	https://www.blickindustries.com/wp-content/uploads/2024/03/BLICK_Leatherheads+Accessories_20240224.pdf	2.24 MB
Repair Form	Forms	https://www.blickindustries.com/wp-content/uploads/2022/11/Blick_Repair-Form_20221130.pdf	82 KB
Dimensions Diagram - 26 mm Edge Locating Pin	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_26mm-Edge-Locat-Pin_20200803.pdf	KB
Dimensions Diagram - 50 mm Edge Locating Pin	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/09/BLICK_50mm-Edge-Locat-Pin_20200803.pdf	484 KB
Dimensions Diagram - 50 mm Edge Locating Pin EL	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2022/08/BLICK_50mm-Edge-Locat-Pin-EL_20200803.pdf	483 KB
Incoming Vacuum Lines - Manifold for INTERMAC Machine (Right)	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-02_Intermac-Mani_20200828.pdf	844 KB
Incoming Vacuum Lines - Manifold for INTERMAC Machine (Left)	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/21-101-01_Intermac-Mani_20200828.pdf	855 KB
Replacement Parts - Intermac Manifolds	Manifolds	https://www.blickindustries.com/wp-content/uploads/2020/08/INTERMAC-Mani_Replace-Parts_20200828.pdf	134 KB
Height Diagram - Stop Locator Tool	Locating Devices	https://www.blickindustries.com/wp-content/uploads/2020/08/Stop-Locator-Tool-Diagram.pdf	929 KB
Dressing Tool Assembly & Body Lengths	Tools & Accessories	https://www.blickindustries.com/wp-content/uploads/2020/08/20-022-0x_Dressing-Tool-Assembly_20190520_All_1920.pdf	1 MB
Overview - Backsplash Clamp System	Clamps	https://www.blickindustries.com/wp-content/uploads/2018/06/BSClampInstructions.pdf	66 KB
Blowback Kit Setup Diagram	Manifolds	https://www.blickindustries.com/wp-content/uploads/2021/03/BlowbackKit_SetupDiagram_20210219.pdf	38 KB
Ghost Markings	Service & Repairs	https://www.blickindustries.com/wp-content/uploads/2024/04/BI_Vacuum-Pod_Ghost-Mark_Info.pdf	3 MB

150 x 300 mm (5.91″ x 11.81″) Suction Cup

$395.00

BLICK INDUSTRIES Suction Cups provide the ultimate workholding solution for stone, glass, wood, and other solid surface fabrication.

Height

90 mm
105 mm
120 mm
150 mm
160 mm
180 mm
200 mm
213 mm
Other

Air Fitting

6 mm
8 mm
10 mm
Other

Clear

Tags: 150x300 Cups Pods Rectangular Suction CupsCategories: Rectangular, Suction CupsSKU: 12-150-30
