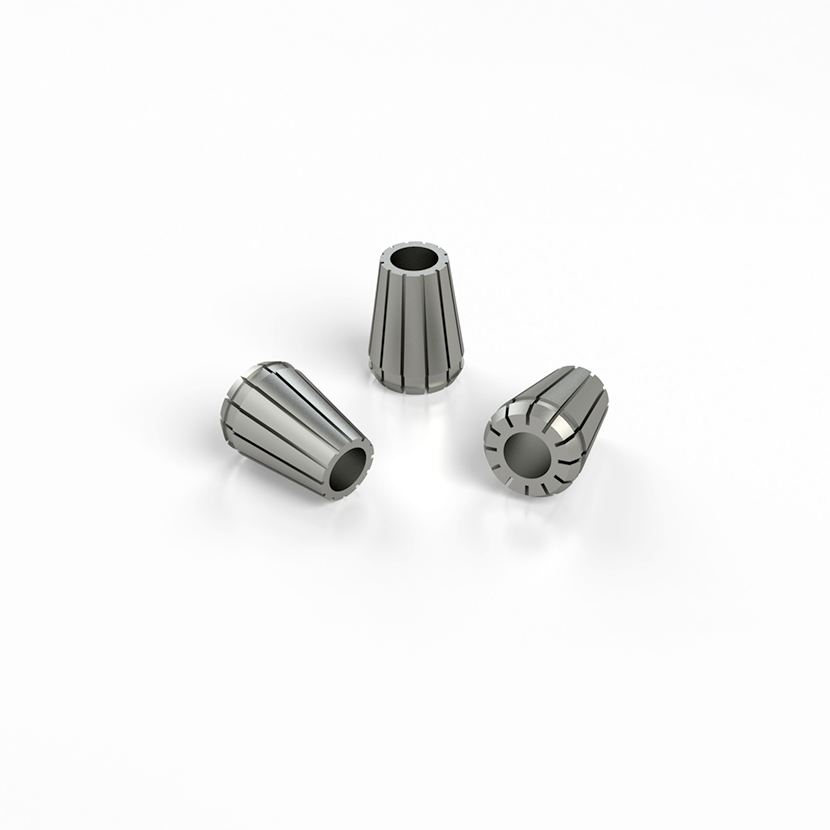

BLICK ER25 Collet | CNC Stone Glass Porcelain Wood Solid Surface

Replacement ER25 Collets for BLICK INDUSTRIES ER25 Collet Holders.

Collet Size	Nominal Sizes Covered	Part Number
1/2 in	31/64 – 1/2 in	14-125-12
1/4 in	7/32 – 1/4 in	14-125-14
1/8 in	7/64 – 1/8 in	14-125-18
11/32 in	21/64 – 11/32 in	14-125-32
3/16 in	11/64 – 3/16 in	14-125-36
3/8 in	23/64 – 3/8 in	14-125-38
5/8 in	19/32 – 5/8 in	14-125-58
9/16 in	17/32 – 9/16 in	14-125-96
6mm	7/32 – 15/64 in	14-125-41
8mm	19/64 – 5/16 in	14-125-42
10mm	3/8 – 25/64 in	14-125-43
12mm	29/64 – 15/32 in	14-125-44
14mm	17/32 – 35/64 in	14-125-45
16mm	39/64 – 5/8 in	14-125-46
