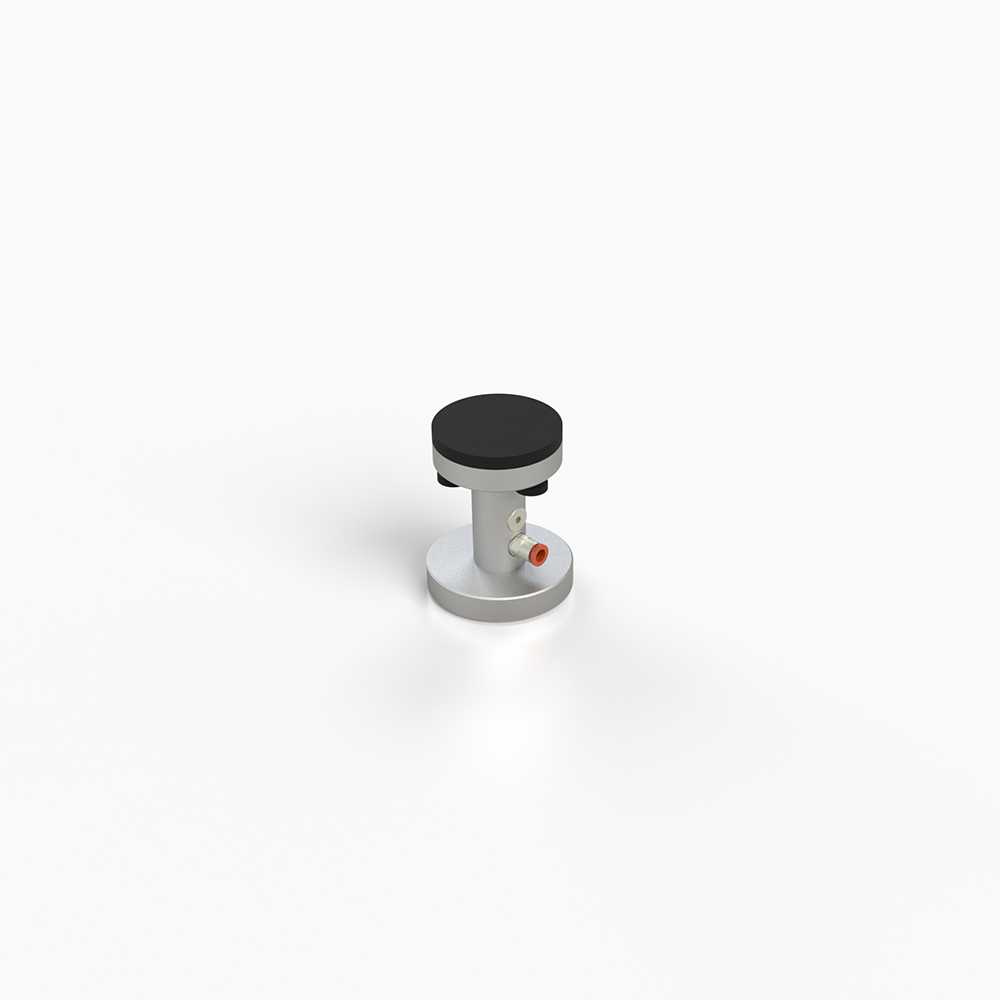

75 mm Round Core Drill Support (2.95″)

$115.00

Core drill supports prevent blowout, allowing you to safely core drill all the way through workpieces.
Clear
Tags: Categories: , SKU: 28-075-01

The supports have a pre-calibrated sacrificial pad that is easily changed.

Part Number 28-075-01
Bottom Seal Part # 12-090-01-11
Suggested Feed 1 in/min
Suggested Speed S2200
