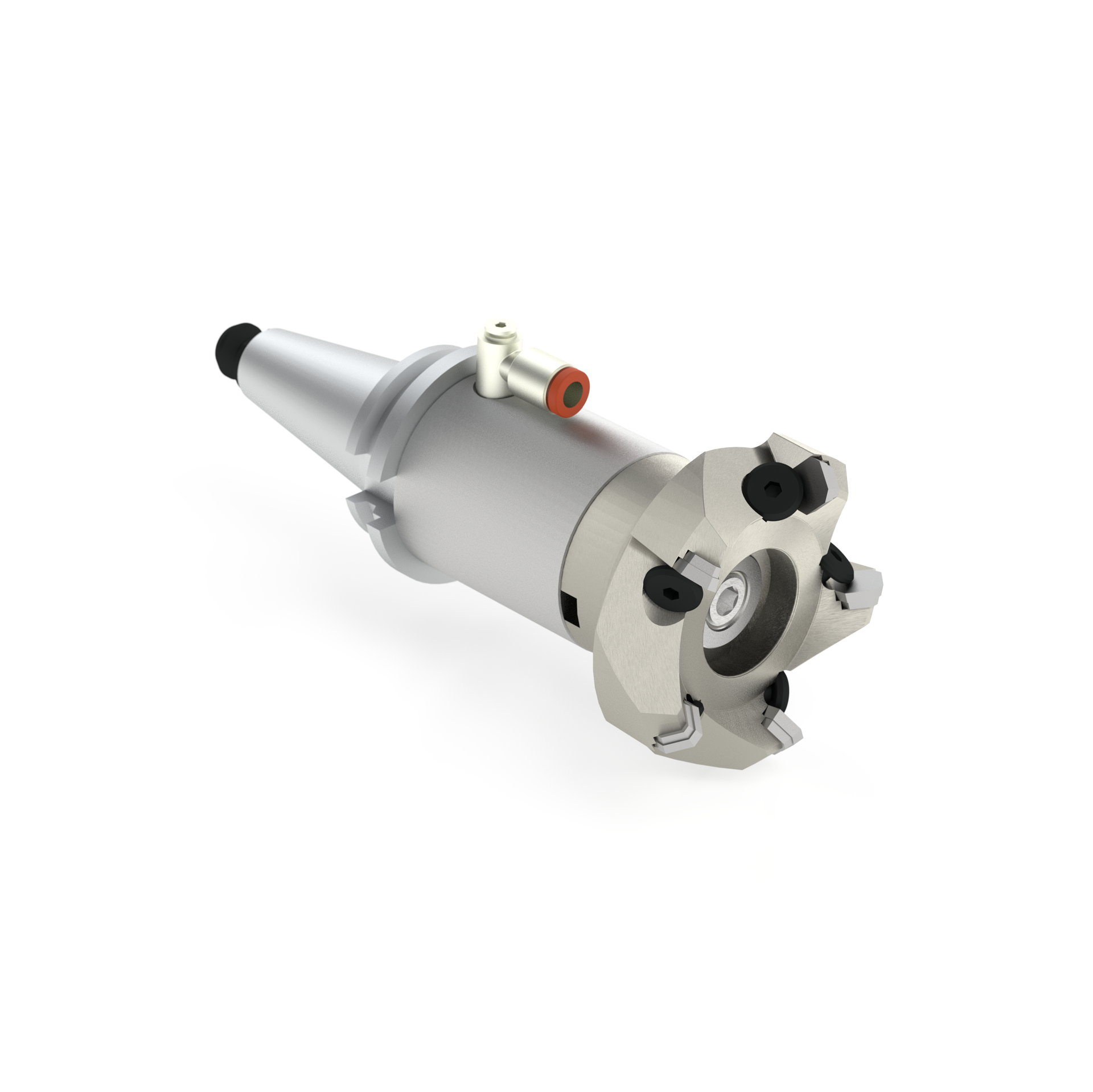

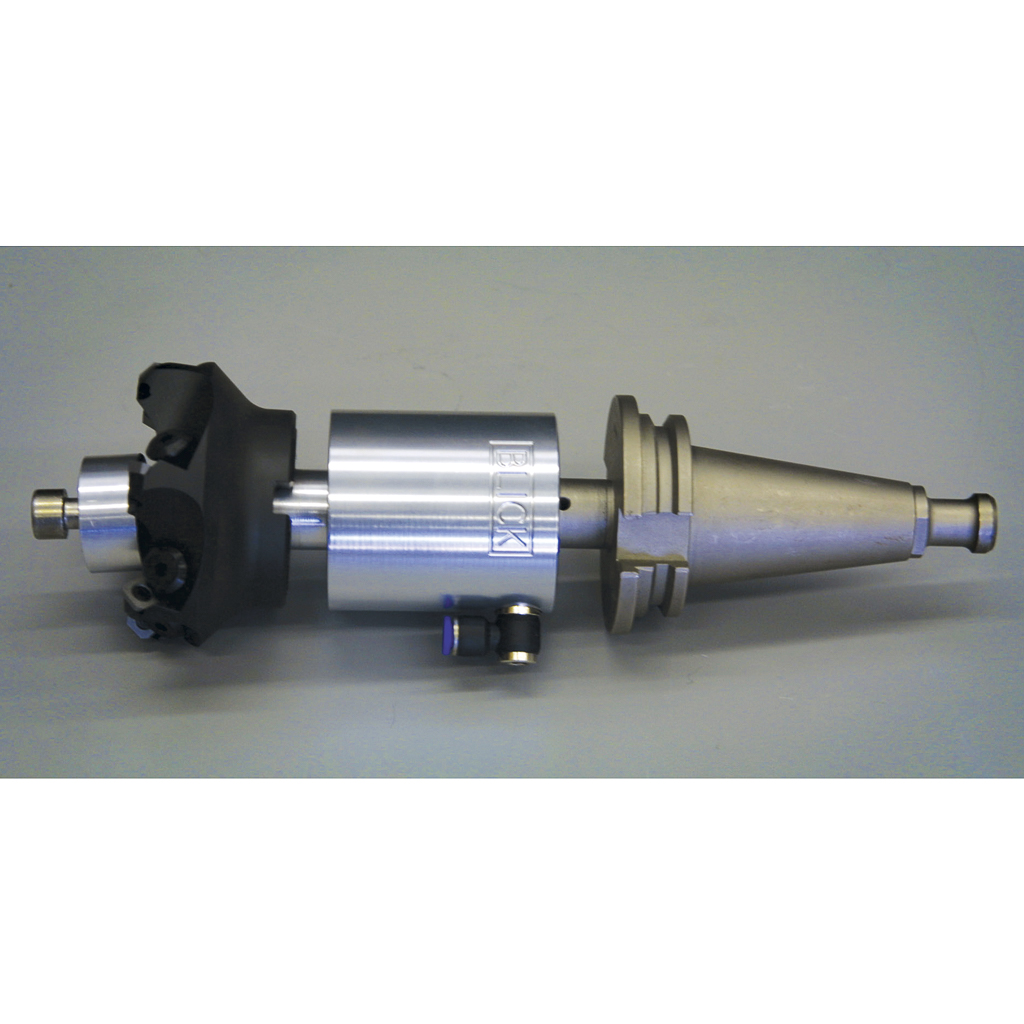

Dressing Tool Assembly:

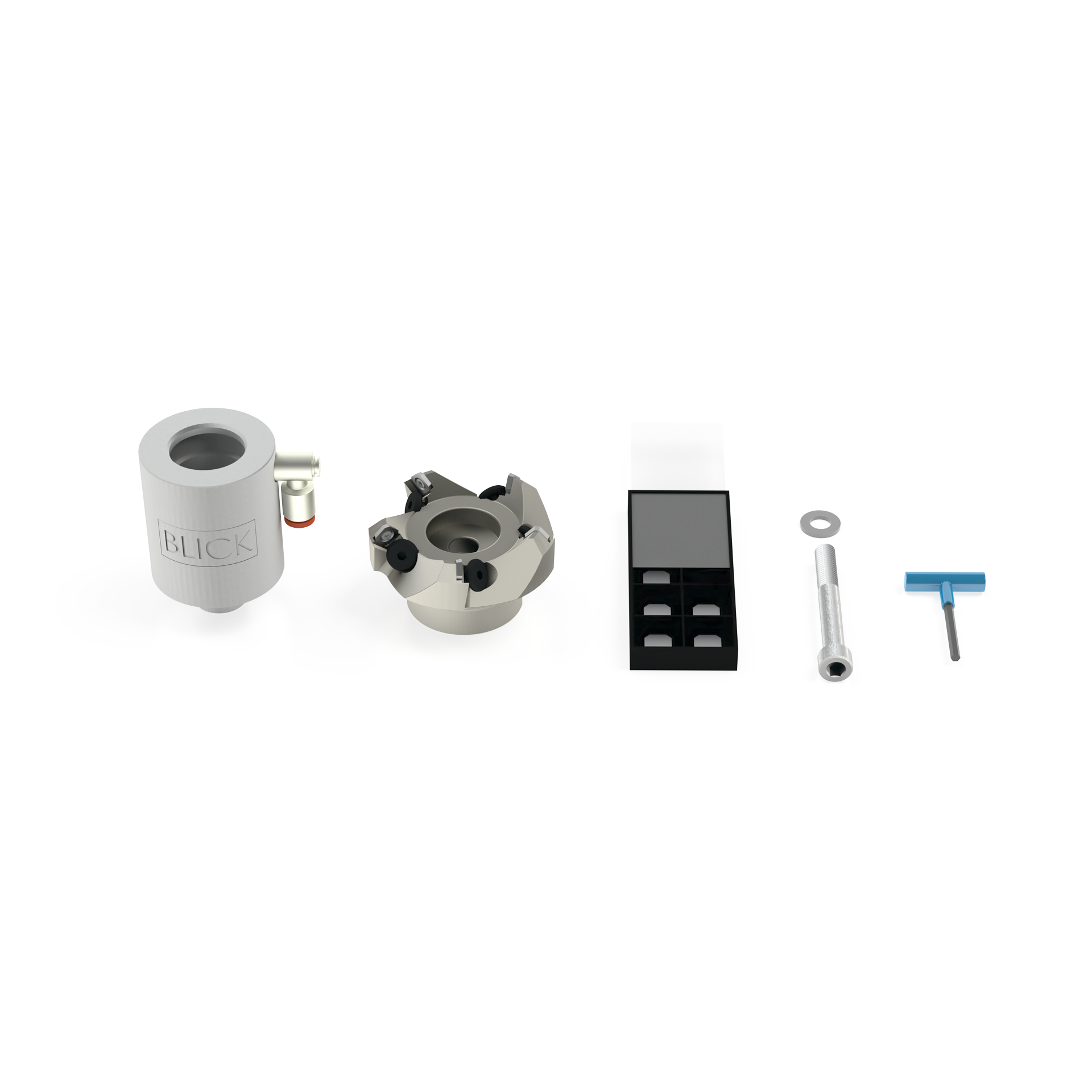

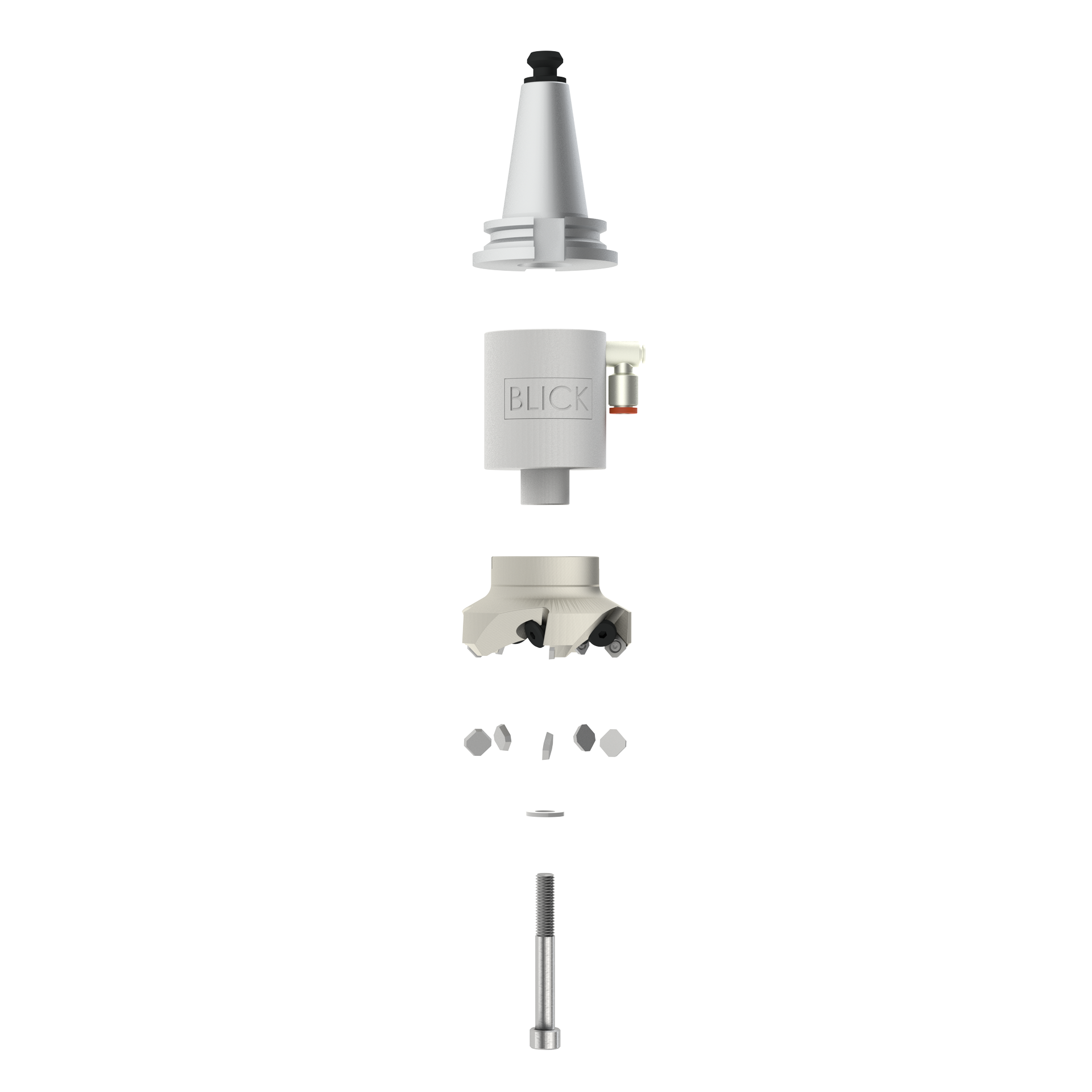

  • The Dressing Tool assembly comes complete with a cutter assembly (shell mill), five carbide inserts, wrench, mounting adaptor, cone assembly mounting bolt, and water disbursement fitting ready for mounting to customer-supplied 22 mm or 35 mm Conic Tool Holder.
  • Tool for dressing table surfaces (aluminum, plastic, wood,…), suction cup bearing feet, surface pads for suction cups & clamps as well as various styles of fixtures.
  • The carbide cutter uses readily available carbide insert replacements.

NOTES:

  • Different variations of dressing tools are available.
  • When ordering, specify the bore diameter which corresponds to the tool holder (22 mm and 35 mm are available), and the screw size (10 mm and 12 mm are common sizes).
  • Shorter or longer body lengths are available upon request.
  • Tool holders are NOT INCLUDED.

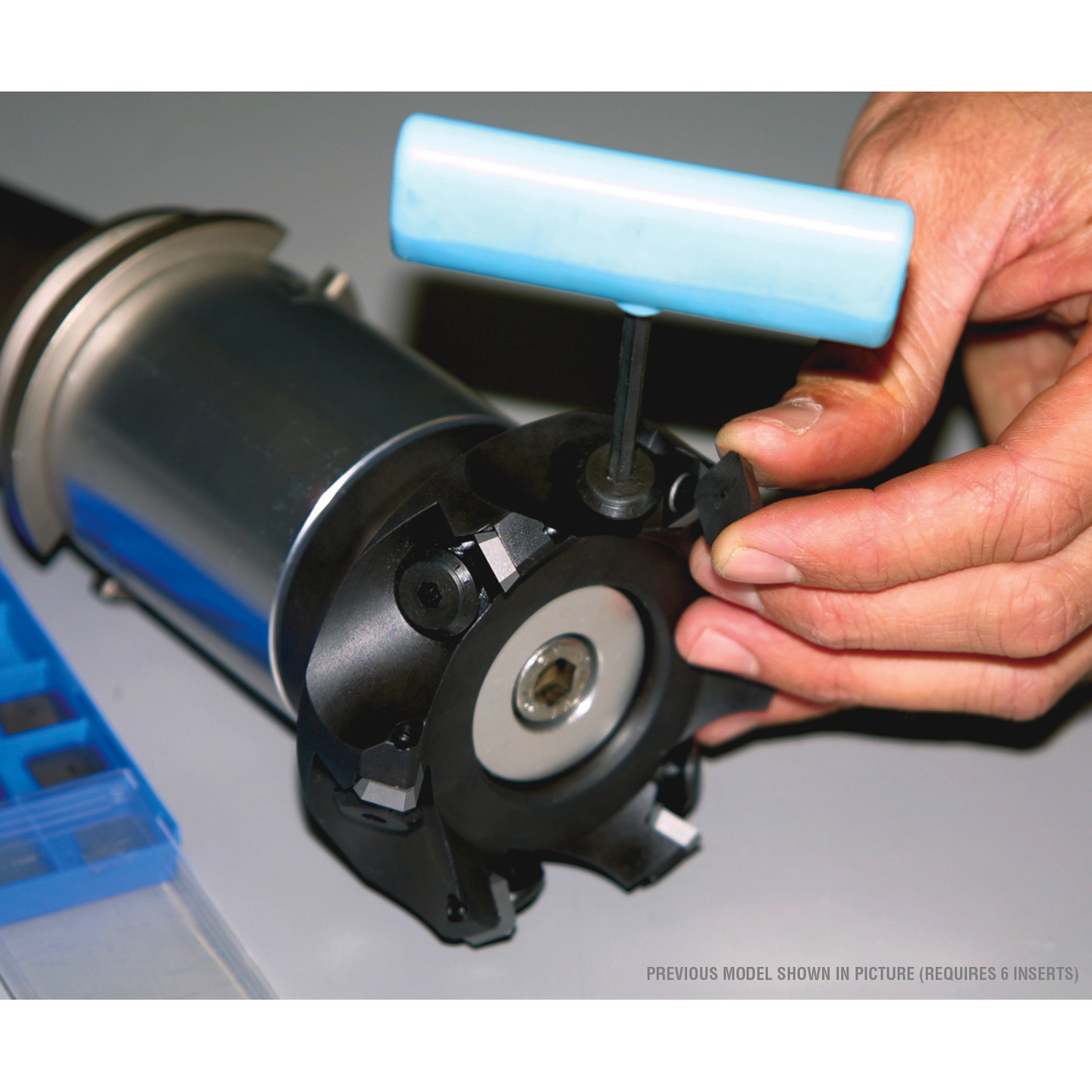

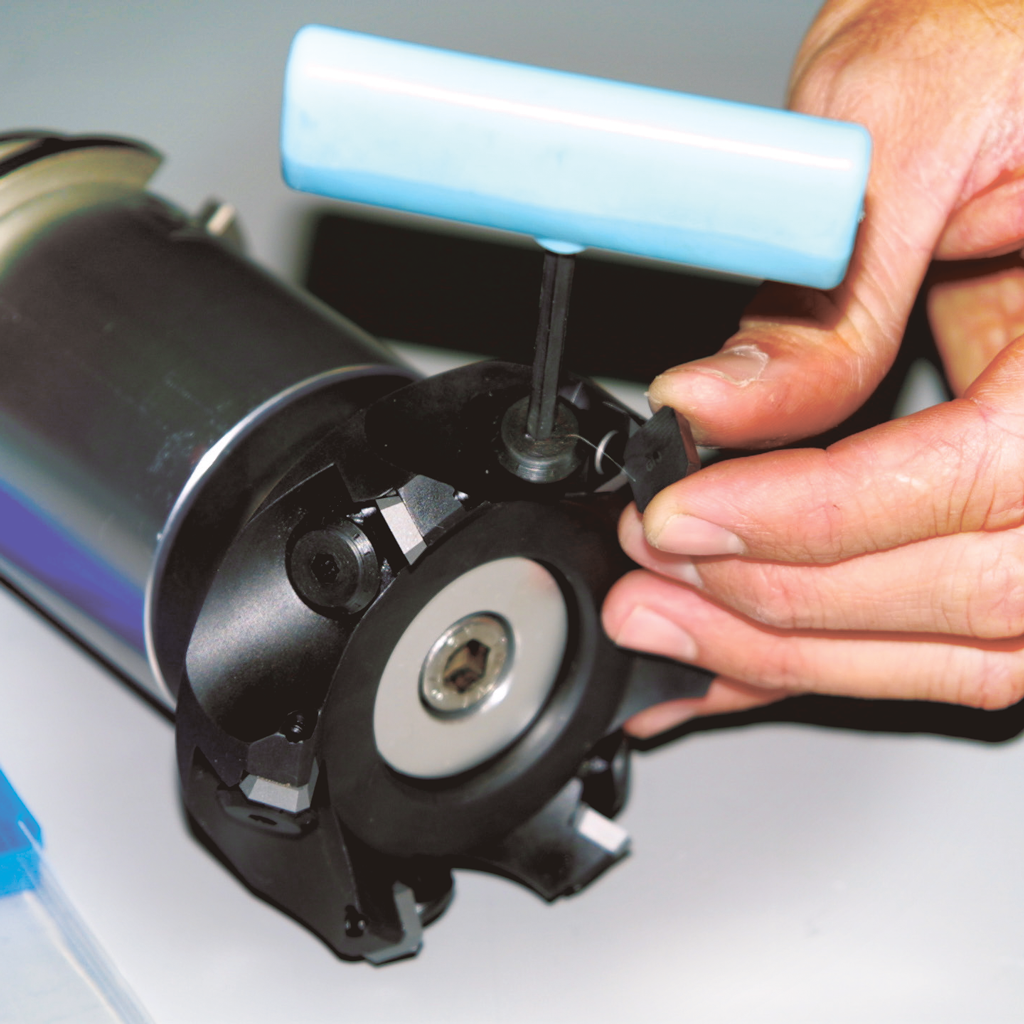

  • Carbide Inserts are NOT PRE-INSTALLED but are included with the Dressing Tool.

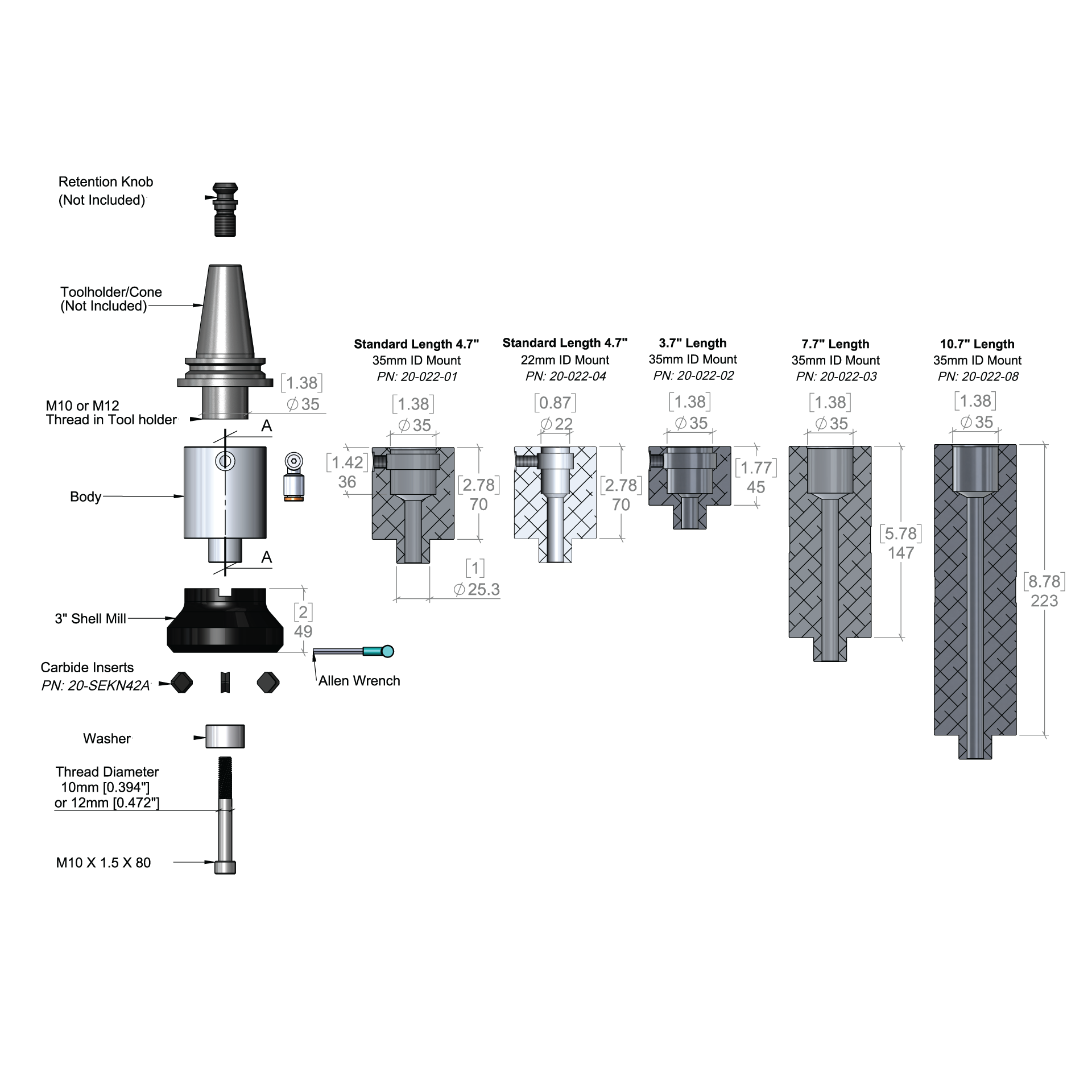

Adaptor Body Mount Part Number
Standard 4.7″, 35 mm ID 20-022-01
3.7″, 35 mm
Contact us for availability
20-022-02
7.7″, 35 mm ID 20-022-03
10.7″, 35 mm
Contact us for availability
20-022-08
Standard 4.7″, 22 mm ID 20-022-04
Accessories
Carbide Inserts (5) 20-SEKN42A
Tool Holders ISO 30 or ISO 40
Mounting Screw M10 or M12
For Dressing Suction Cups
Spindle Speed 2200 RPM
Feed 1100 mm per minute
For Dressing Tables
Spindle Speed 4000 RPM
Feed 1500 mm per minute

BLICK Dressing Tool Video:
